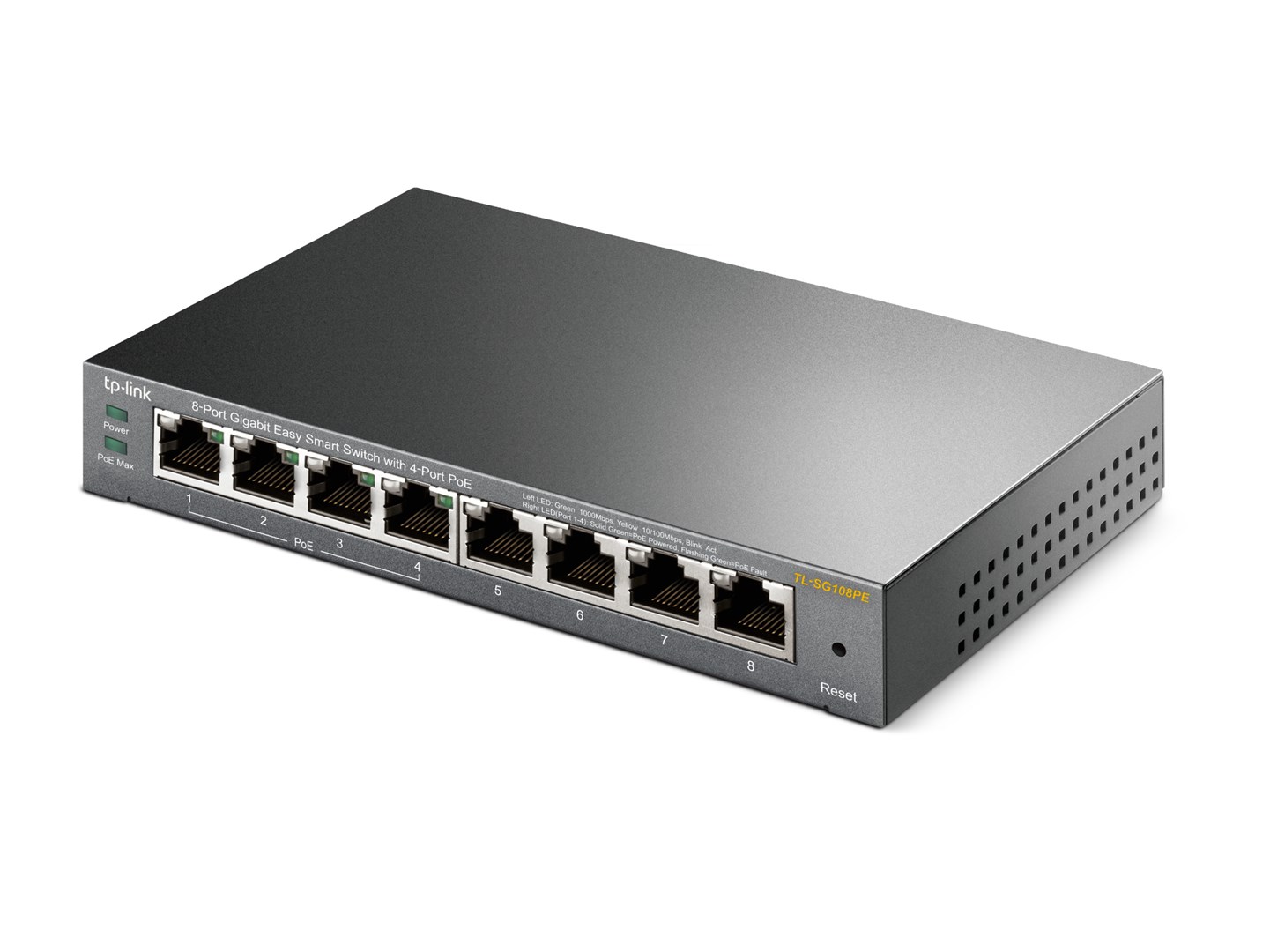

TP-LINK TL-SG108PE 8-θυρών Gigabit PoE Switch (Easy Smart L2)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  TP-LINK
• Model
  TL-SG108PE
• SKU
  WLONONWCRSRW5
• EAN
  1210002616942
• MPN
  590152
• Product Type
  8-Port Gigabit Easy Smart L2 PoE Switch
• Switch Type
  Managed (Easy Smart, L2)
• Number of Ports (RJ-45)
  8
• Gigabit Ethernet Ports
  8 (10/100/1000 Mbps)
• PoE Ports Quantity
  4
• PoE Standard
  IEEE 802.3af
• PoE Power per Port
  15.4 W
• Total PoE Budget
  64 W
• PoE+ Ports Quantity
  4 (device indicates 4 PoE-capable ports; PoE standard listed as 802.3af)
• Switching Capacity
  16 Gbit/s
• Forwarding Rate
  11.9 Mpps
• MAC Address Table
  4000 entries
• Packet Buffer Memory
  1.5 MB
• Jumbo Frames Support
  Yes (up to 15000 bytes)
• VLAN Support
  Yes (port-based VLAN)
• Number of VLANs
  32
• QoS Support
  Yes (802.1p, rate limiting)
• IGMP Snooping
  Yes
• Link Aggregation
  Yes
• Port Mirroring
  Yes
• Auto MDI/MDI-X
  Yes
• Broadcast Storm Control
  Yes
• Web-based Management
  Yes
• Store-and-forward
  Yes
• Networking Standards
  IEEE 802.3i, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ab, IEEE 802.1p
• Power Source
  DC (internal power supply included)
• AC Input Voltage
  220 V
• AC Input Frequency
  50 Hz
• Input Current
  1.25 A
• DC Input Voltage
  48 V
• Power Consumption (Max)
  65.2 W
• Heat Dissipation
  256.19 BTU/h
• Operating Temperature
  0 - 40 °C
• Storage Temperature
  -40 - 70 °C
• Operating Relative Humidity
  10 - 90%
• Storage Relative Humidity
  5 - 95%
• Dimensions (W x D x H)
  158 x 101 x 25 mm
• Product Colour
  Black
• Package Weight
  860 g
• Package Type
  Box
• Cables Included
  AC
• User Guide Included
  Yes
• Switch Layer
  L2
• Switching Method
  Store-and-forward
• Forwarding Performance (1 Gbps)
  11,900,000 pps
