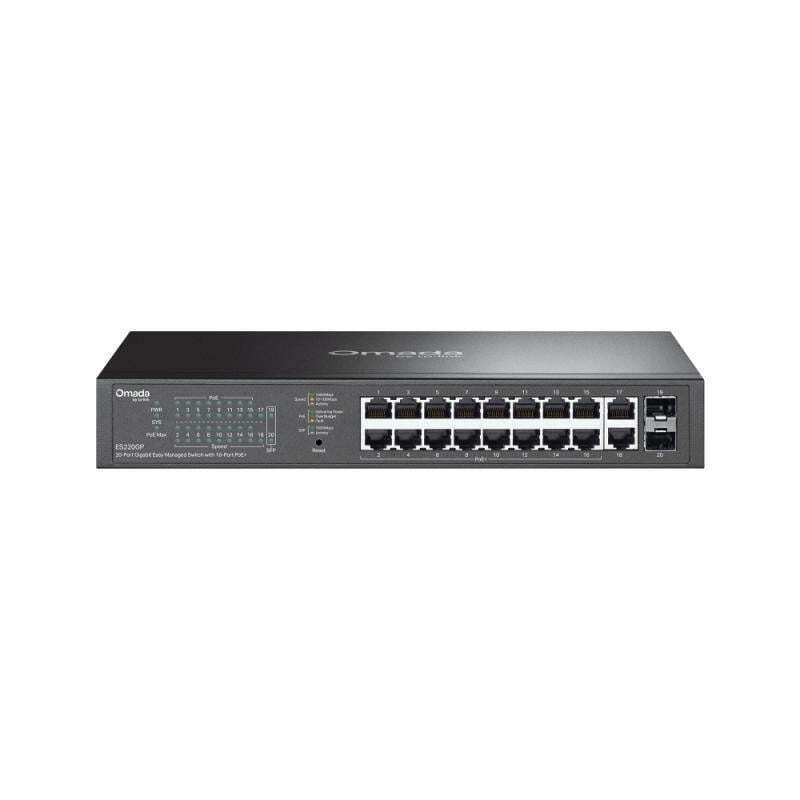

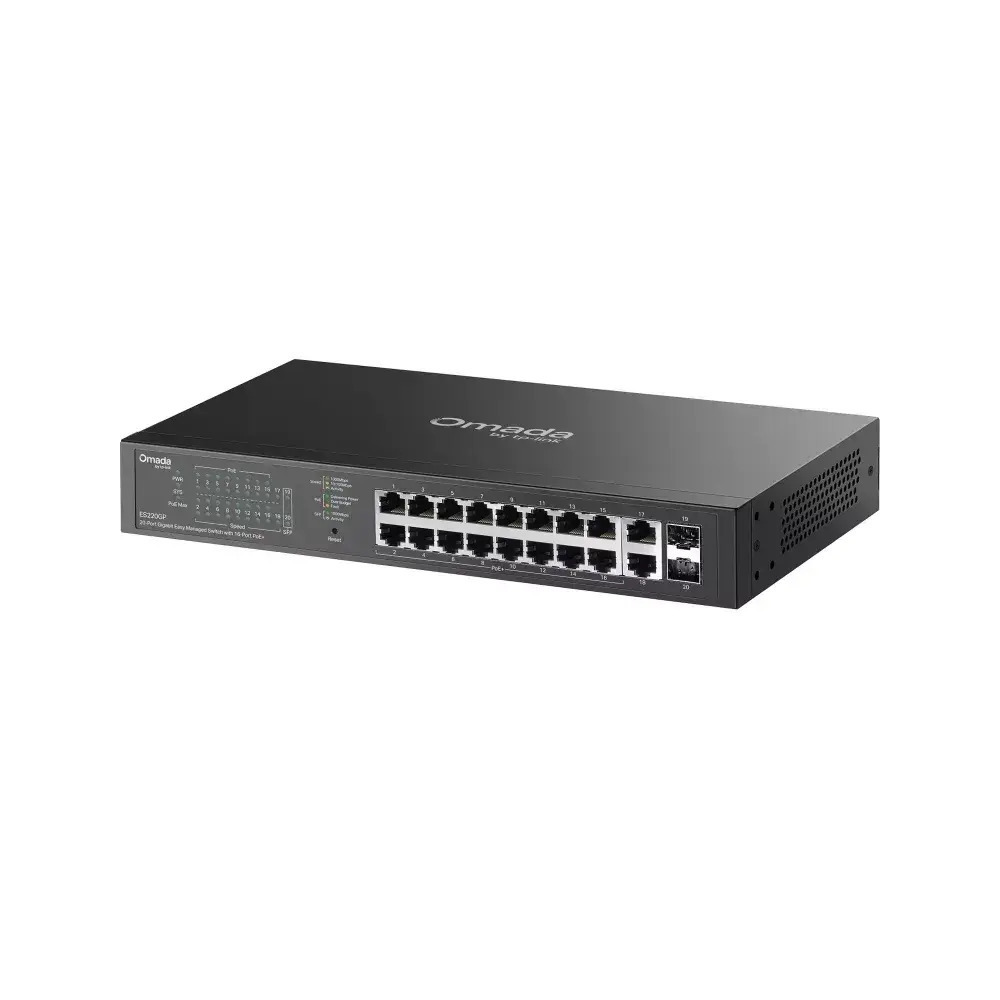

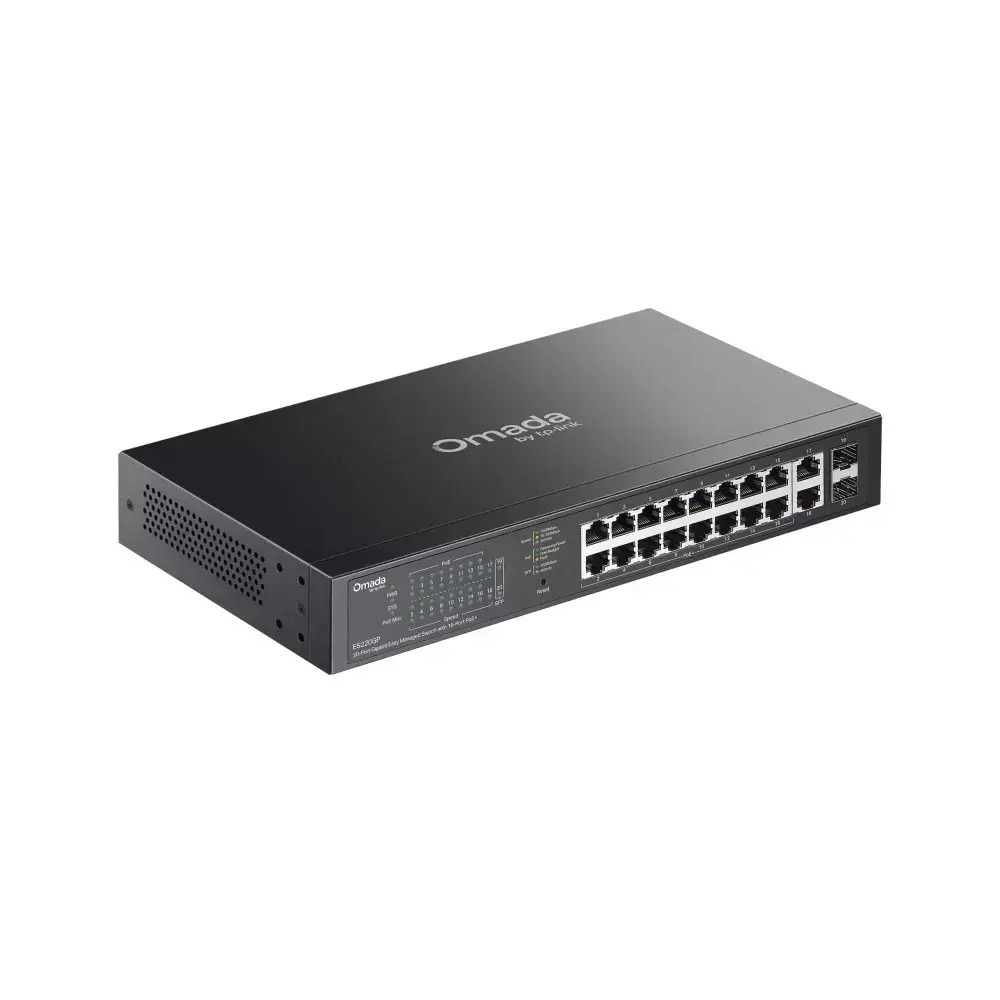

TP-LINK Omada ES220GP Διαχειριζόμενος PoE+ Switch με 18 Θύρες Gigabit και 2 SFP (150W)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Product Type
  Managed PoE+ Switch
• Model
  ES220GP
• Brand
  TP-LINK Omada
• SKU
  KILTPLSWI0163
• MPN
  ES220GP
• EAN
  1210002609746

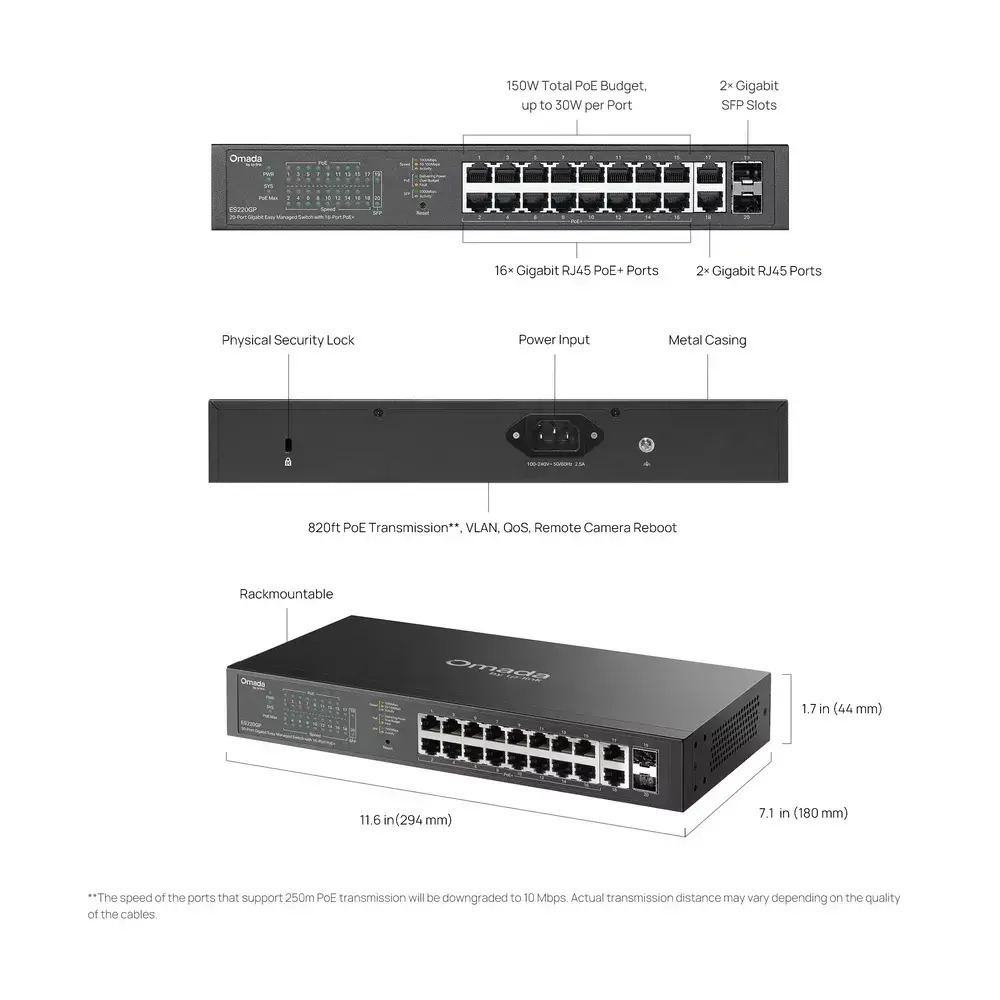

• Ethernet Ports (RJ-45)
  18 Gigabit (10/100/1000 Mbps)
• SFP Ports
  2
• PoE Support
  Yes
• PoE Type
  PoE+ (IEEE 802.3at) and PoE (IEEE 802.3af)
• PoE+ Ports Quantity
  16
• PoE Power per Port
  30 W
• Total PoE Budget
  150 W
• Switching Capacity
  40 Gbit/s
• Forwarding Rate
  29.76 Mpps
• Switching Method
  Store-and-forward
• MAC Address Table
  8000 entries
• Packet Buffer Memory
  4 MB
• Jumbo Frames Support
  Yes
• VLAN Support
  Yes (Tagged VLAN, MTU VLAN, Port-based VLAN)
• Number of VLANs
  32
• QoS Support
  Yes (IEEE 802.1p, WRR)
• Queue Scheduling Algorithms
  Weighted Round Robin (WRR)
• IGMP Snooping
  Yes
• Multicast Support
  Yes
• Link Aggregation
  Yes
• Port Mirroring
  Yes
• Auto MDI/MDI-X
  Yes
• Auto-negotiation
  Yes
• Flow Control Support
  Yes
• Broadcast Storm Control
  Yes
• Number of Queues
  8
• SFP Module Slots Quantity
  2
• Basic Switching RJ-45 Ports Quantity
  18
• Ethernet LAN Data Rates
  10/100/1000 Mbit/s
• Networking Standards
  IEEE 802.1p, IEEE 802.1ab, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3at, IEEE 802.3af
• 10G Support
  No
• Web-based Management
  Yes

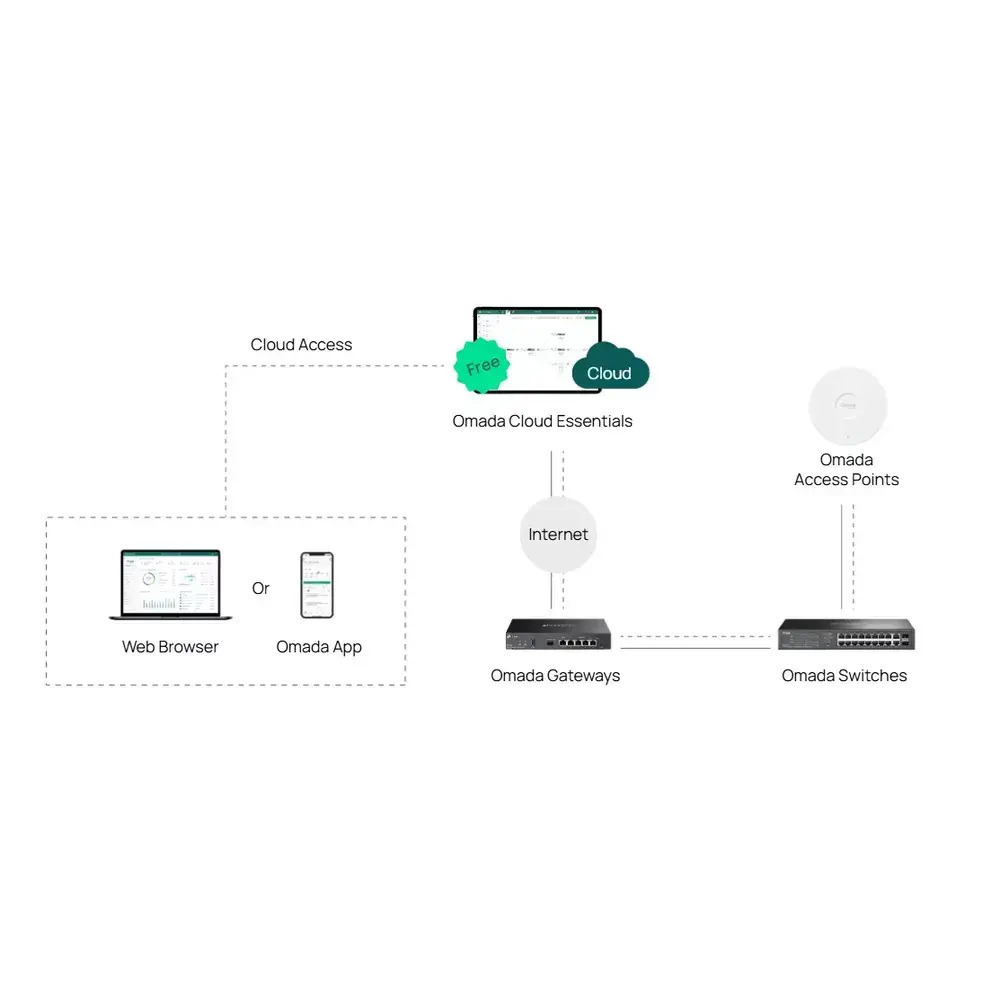

• Cloud-managed
  Yes (Omada)
• Rack Mounting
  Yes
• Housing Material
  Metal
• Product Colour
  Black
• Fanless
  Yes
• Noise Level
  20.1 dB
• Power Consumption (Max)
  182.43 W
• AC Input Voltage
  100 - 240 V
• AC Input Frequency
  50/60 Hz
• Input Current
  2.5 A
• Power Source
  AC

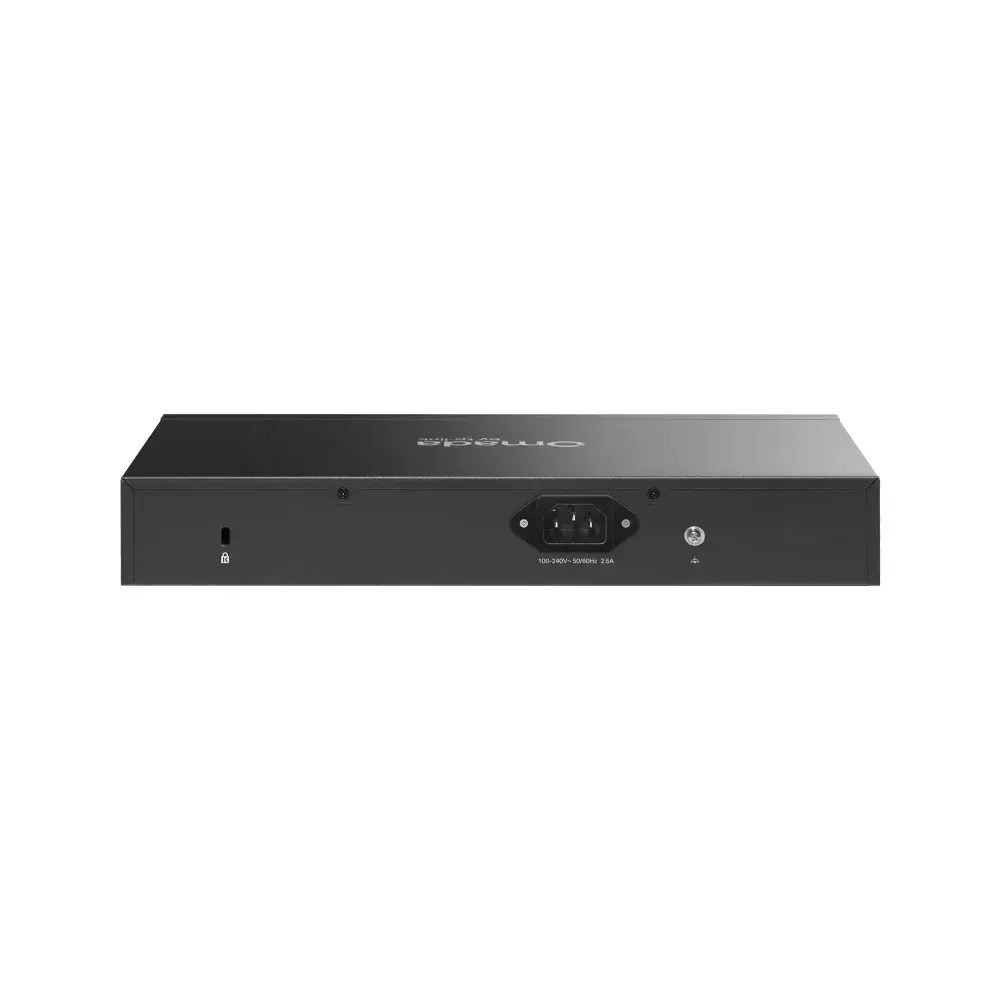

• Power Connector
  AC-in jack
• Operating Temperature
  -5 - 40 °C
• Storage Temperature
  -40 - 70 °C
• Operating Relative Humidity
  10 - 90 %
• Storage Relative Humidity
  5 - 90 %
• Dimensions (W x D x H)
  294 x 180 x 44 mm
• Mean Time Between Failures (MTBF)
  320156 h
• Compliance Certificates
  FCC, RoHS, CE

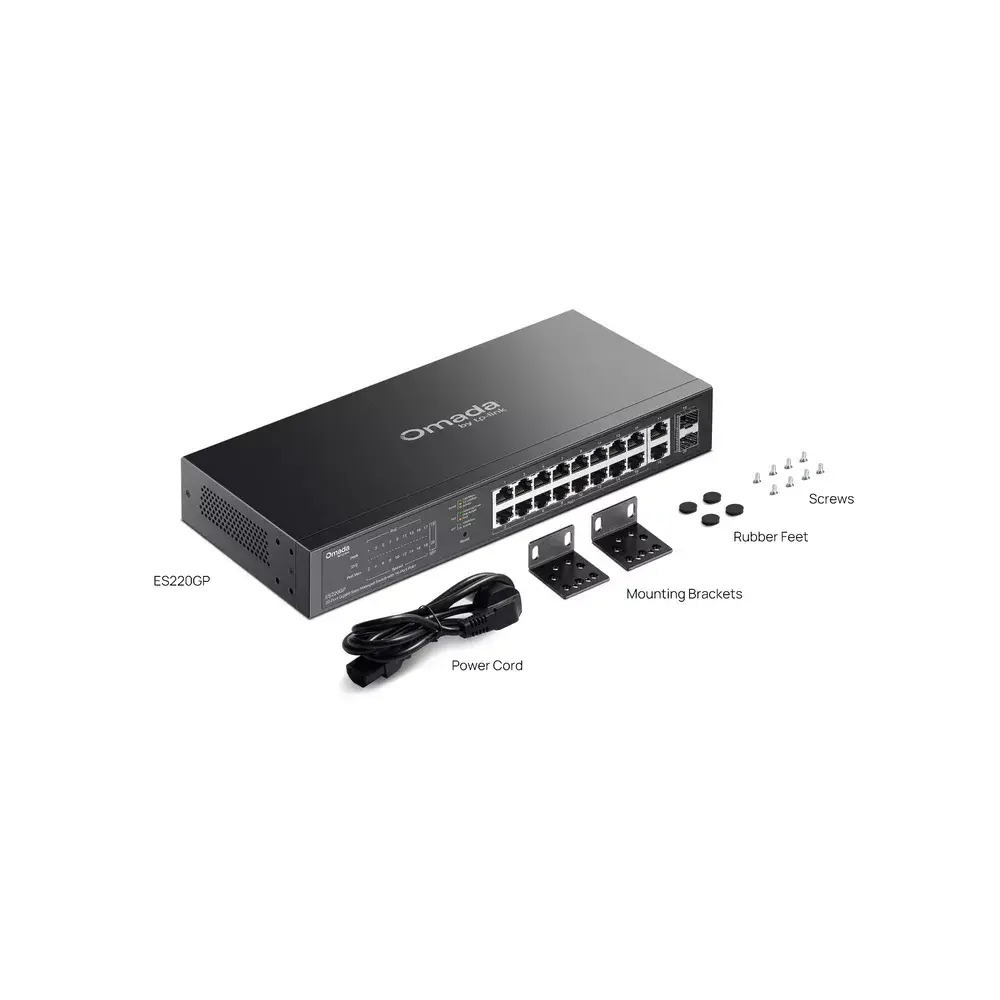

• Cables Included
  AC
• User Guide Included
  Yes
