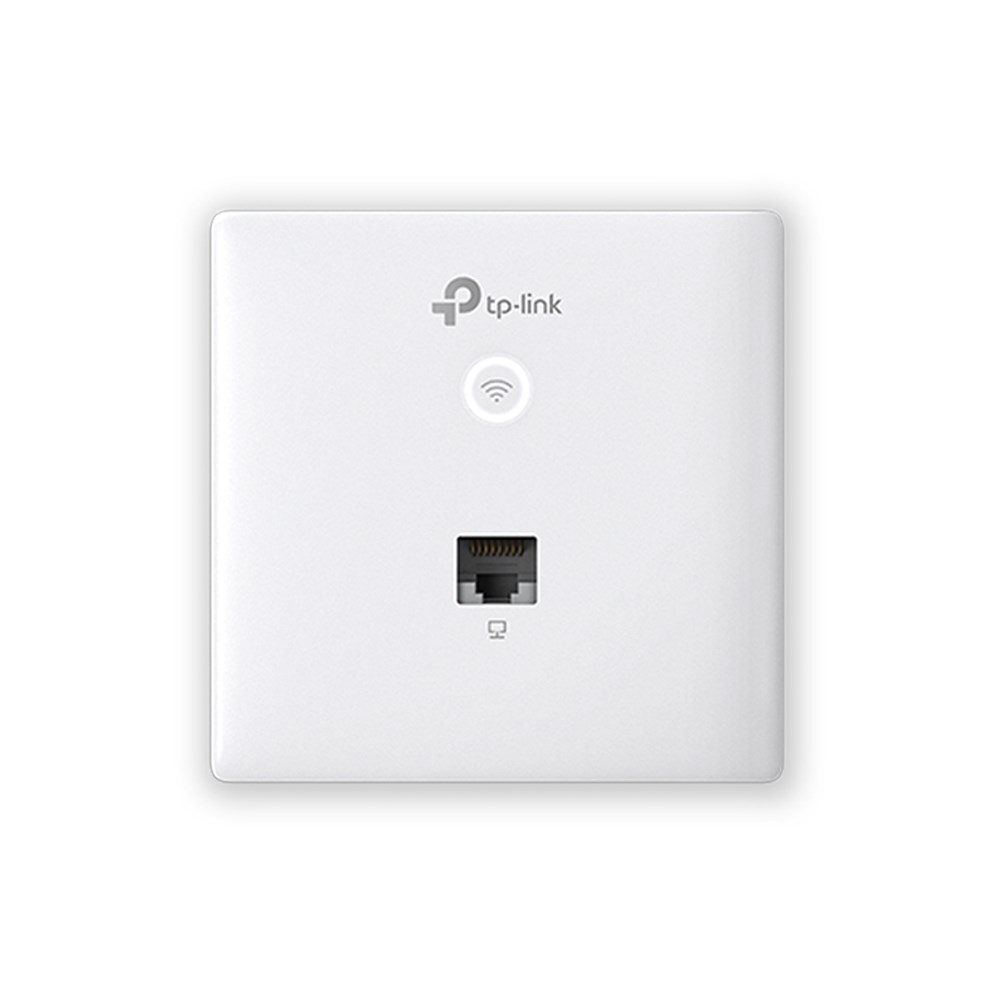

TP-Link Omada AC1200 Ασύρματος Wall-Plate Access Point MU-MIMO Gigabit (EAP230-Wall)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  TP-Link
• Model / MPN
  EAP230-Wall
• SKU
  KILTPLACC0122
• EAN
  1210002615679
• Product Type
  Wall-plate Access Point (Indoor)
• Wi‑Fi Standard
  IEEE 802.11ac Wave 2 (Wi‑Fi 5)
• Frequency Bands
  2.4 GHz and 5 GHz (dual-band concurrent)
• Wireless Data Rate
  2.4 GHz: up to 300 Mbps; 5 GHz: up to 867 Mbps; Total: 1167 Mbps
• Marketing Class
  AC1200
• MU‑MIMO
  Yes (Wave 2)
• Antennas
  Internal dual-band antennas (2 total)
• Antenna Gain
  2.4 GHz: 2 × 4 dBi; 5 GHz: 2 × 3.6 dBi
• Ethernet Ports
  2 × 10/100/1000 Mbps (1 uplink, 1 downlink)
• PoE Support
  802.3af/at PoE input; PoE pass-through on downlink port
• Max Power Consumption
  7 W
• Concurrent Clients
  200+ (typical enterprise claim)
• Coverage (approx.)
  ~25 m² / 300 ft² per unit (vendor guidance)
• Management
  Omada SDN controller / Omada Cloud / Omada App (centralized management)
• Mounting
  Faceplate-style mounting for 86 mm / EU junction boxes
• Dimensions
  86.8 × 86.8 × 30.2 mm
• Product Weight
  ~85 g
• Package Weight
  ~311 g
• Color
  White
• Material
  Plastic (faceplate housing)
• Use Case
  Hotels, dormitories, offices, meeting rooms, hospitality rooms
• Security & Networking
  Enterprise-class features, guest network & VLAN support (controller-managed)
• Power Over Ethernet Pass‑Through
  Yes (to power downstream PoE device such as IP phone/camera)
• Max Clients per AP
  200+
