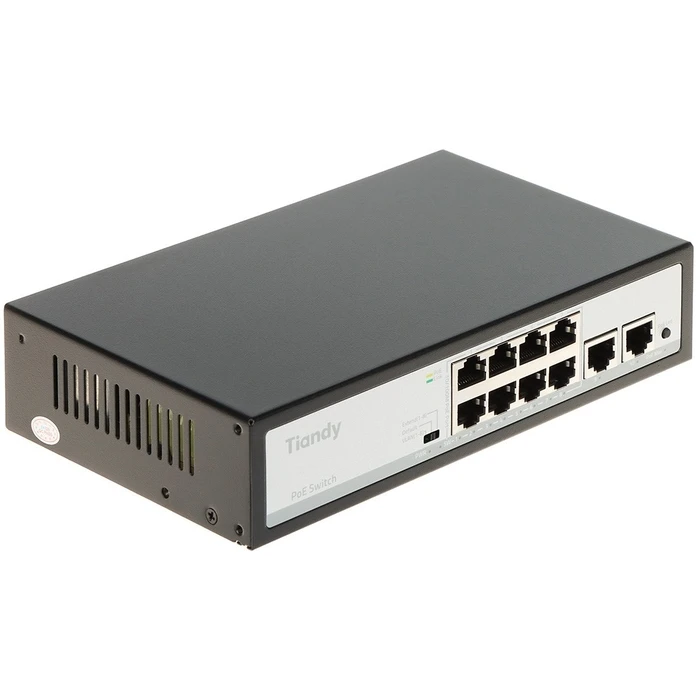

Διακόπτης PoE Tiandy TC-P3S010 (8 θυρών) SPEC:F/0820/AT/90

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Model
  TC-P3S010 SPEC:F/0820/AT/90
• Brand
  Tiandy
• Product Type
  Unmanaged Fast Ethernet PoE Switch
• Ports
  8 × 10/100Mbps PoE ports + 2 × 10/100Mbps RJ45 uplink ports (total 10 ports)
• PoE Standard
  IEEE 802.3af and IEEE 802.3at
• Total PoE Power Budget
  90W
• PoE Output Voltage
  DC 52V
• PoE Pinout
  1/2+ , 3/6-
• Power Supply Rating
  52V / 1.92A (internal power supply), AC input 100–240V
• Maximum Mainboard Power
  10W
• Switching Capacity
  2 Gbps
• Throughput
  1.488 Mpps
• Packet Buffer
  448 Kbit
• MAC Address Table
  2K entries
• Transfer Mode
  Store and Forward
• Network Standards
  IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX), IEEE 802.3x (flow control)
• Cabling
  10Base-T: Cat3/4/5; 100Base-TX: Cat5 or above; max cable length 100 m
• EMS / Surge Standards
  EN61000-4-2 (ESD), EN61000-4-5 (surge)
• Use Cases
  IP cameras/CCTV, wireless APs, VoIP phones, small office networks
• Product Dimensions
  200 × 118 × 44 mm
• Package Dimensions
  245 × 190 × 60 mm
• Product Net Weight
  680 g
• Package Gross Weight
  980 g
• Packaging Quantity per Carton
  20 pcs
• Carton Dimensions
  520 × 320 × 400 mm
• Color
  (not specified)
• Material/Enclosure
  (not specified)
• Mounting
  Desktop / shelf (no rack ears indicated)
• Management
  Unmanaged (plug-and-play)
