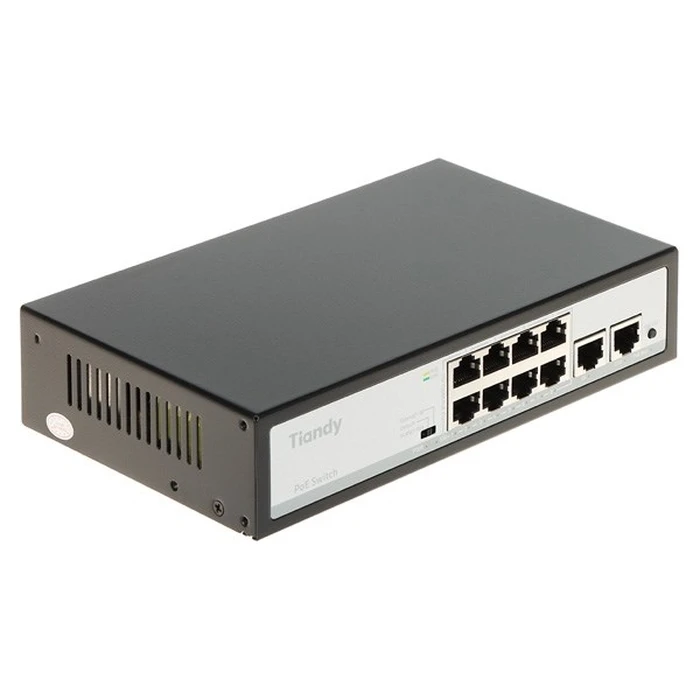

Tiandy PoE Switch TC-P3S010 8 θυρών (8 PoE + 2 uplink)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Tiandy
• Model / MPN
  TC-P3S010 SPEC:H/0820/AT/90
• SKU
  WLONONWCRR518
• EAN / Barcode
  6976642042491
• Product Type
  10-port Ethernet PoE switch (8 PoE + 2 uplink)
• Ethernet Ports
  8 × 10/100/1000 Mbps PoE ports
• Uplink Ports
  2 × 10/100/1000 Mbps RJ45 uplink ports
• PoE Standards
  IEEE 802.3af (15.4W) and IEEE 802.3at (30W)
• PoE Output Voltage
  DC 52V
• Power Supply
  AC 100–240V input; internal PSU 52V / 1.92A (~99.8W theoretical)
• Switching Bandwidth
  20 Gbps
• Forwarding Rate / Throughput
  ~14.88 Mpps
• Packet Buffer
  448 KB
• Transfer Mode
  Store and Forward
• Network Media
  10Base-T / 100Base-TX / 1000Base-T (up to 100 m, Cat5+)
• EMC / Protection Standards
  EN61000-4-2 (ESD), EN61000-4-5 (Surge)
• Dimensions (Product)
  200 × 118 × 44 mm
• Package Dimensions
  245 × 190 × 60 mm
• Net Weight (Product)
  690 g
• Gross Weight (Package)
  980 g
• Enclosure Material
  Metal (industrial-style casing)
• Typical Use
  CCTV/IP camera networks, PoE APs, VoIP phones, IoT devices
• Management
  Unmanaged / plug-and-play (model family typical)
• Mounting
  Desktop / shelf (no rack ears reported)
• Operating Temperature / Environment
  Not specified (treat as standard commercial use)
• Notes
  Multiple TC-P3S010 variants exist; SPEC:H/0820/AT/90 corresponds to gigabit 8+2 PoE variant
