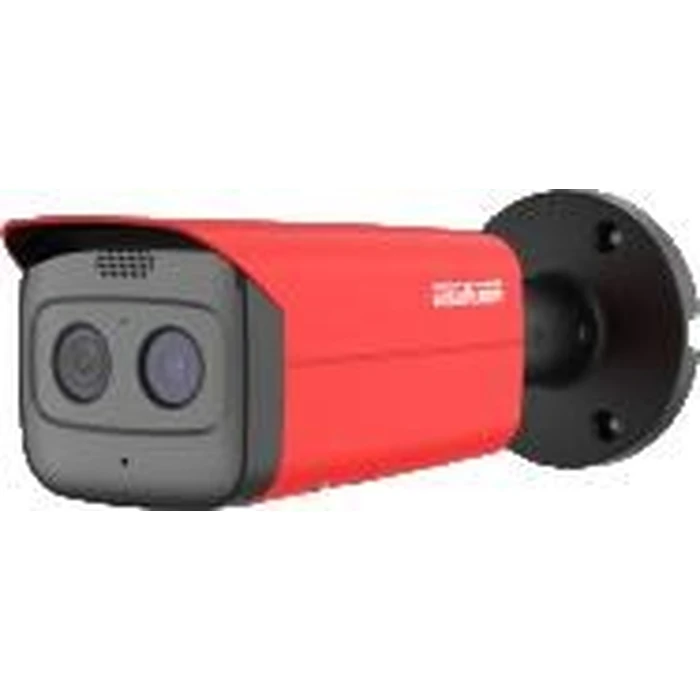

Θερμική IP Κάμερα Wisualarm HY-FT431LDP-TD1F4-MB (Dahua)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Product Name
  Thermal IP Camera Wisualarm HY-FT431LDP-TD1F4-MB
• Brand
  Dahua (Wisualarm product line)
• MPN
  HY-FT431LFP-TD1F4
• EAN
  6976643257375
• SKU
  WLONONWCROWXF
• Camera Type
  Hybrid thermal & visible network camera with flame detection
• Thermal Detector
  Uncooled VOx microbolometer
• Thermal Resolution
  120 × 90 px
• Pixel Pitch
  17 µm
• Spectral Range
  8 µm – 14 µm
• Thermal NETD
  <60 mK (@ f/1.0, 300K)
• Thermal Focal Length
  1.2 mm
• Thermal Field of View
  H: 90°, V: 67.5°
• Temperature Measurement Range
  -10°C to +200°C
• Temperature Accuracy
  ±5°C or ±5% (max)
• Visible Sensor
  4 MP 1/2.7" CMOS
• Visible Resolution
  4 MP
• IR (visible) Distance
  15–25 m (variant dependent)
• Flame Detection Distance
  10 m (for 10 cm × 10 cm flame)
• Video Encoding
  Smart H.265+, Smart H.264+
• Storage
  Micro SD up to 256 GB
• Audio
  Built-in microphone and speaker (≥70 dB @1 m)
• Alarm I/O
  1 alarm input, 1 alarm output
• Power
  DC 12V / PoE
• Protection Rating
  IP66 / IP67 (variant dependent)
• Weight
  671 g
• Mounting
  Ceiling mount, junction mount, vertical pole mount
• Package Contents
  Camera, screw pack, waterproof connector, positioning map, quick start guide, installation guide, wrench
• Use Cases
  Industrial flame detection, early fire warning, temperature anomaly monitoring, safety surveillance in factories/refineries/warehouses
