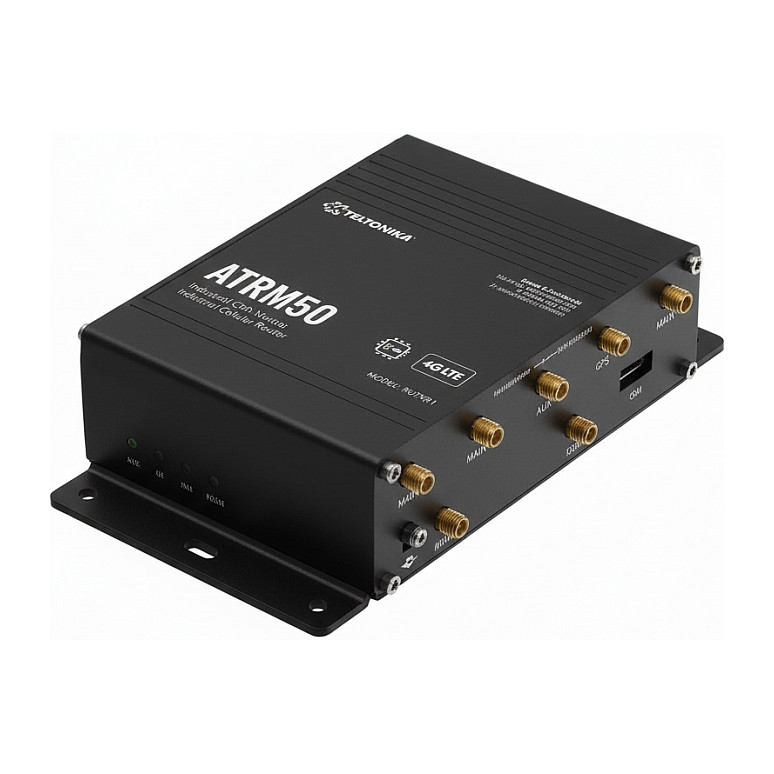

Teltonika ATRM50 5G Router για Μεταφορές με M12 Συνδέσεις

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Teltonika
• Model
  ATRM50
• MPN
  ATRM50100200
• EAN
  4779051846443
• Category
  Network / Router (5G transportation router)
• Cellular Technology
  5G, 4G (LTE Cat 19), 3G
• Max 5G Throughput
  Up to ~3.4 Gbps (vendor-stated)
• 5G Modes
  SA / NSA (supported per vendor/webinar)
• Ethernet Ports
  4 × M12 X‑coded Gigabit Ethernet ports
• Power Input
  1 × M12 A‑coded power input
• SIM Support
  Dual physical SIM + eSIM (auto failover); webinar cites 2 physical SIMs + up to 7 eSIM profiles
• Wi‑Fi
  2.4 GHz and 5 GHz (Wi‑Fi onboard; antenna supplied)
• GNSS
  Integrated GNSS receiver; external GNSS antenna bundled
• Operating System
  RutOS (Teltonika)
• Remote Management
  Teltonika RMS compatible
• Certifications
  EN 45545‑2, EN 50155, ITxPT (transportation/rail certifications)
• Housing / Mounting
  Rugged full aluminum casing with integrated mounting bracket
• Rugged Connectors
  M12 connectors for vibration-resistant connections
• Bundled Antennas
  Mobile antenna (617–960 / 1400–2690 / 3300–5900 MHz, omnidirectional, SMA male), Wi‑Fi antenna (2400–2500 / 4950–5850 MHz, RP‑SMA male), GNSS antenna (1575.42–1602 MHz, active, SMA male)
• RF Max Power
  ~25 dBm WCDMA; 28 dBm LTE; 28 dBm 5G; Wi‑Fi 2.4G 20 dBm; Wi‑Fi 5G 23 dBm (per QSG)
• Ignition Detection
  Supported (transportation use-case features)
• Typical Use Cases
  Onboard passenger connectivity, CCTV backhaul, digital signage, timetable displays, rail and public transport networking
• Shipping Weight (vendor listing)
  ~0.500 kg
• Shipping Dimensions (vendor listing)
  36 × 17 × 6 cm
