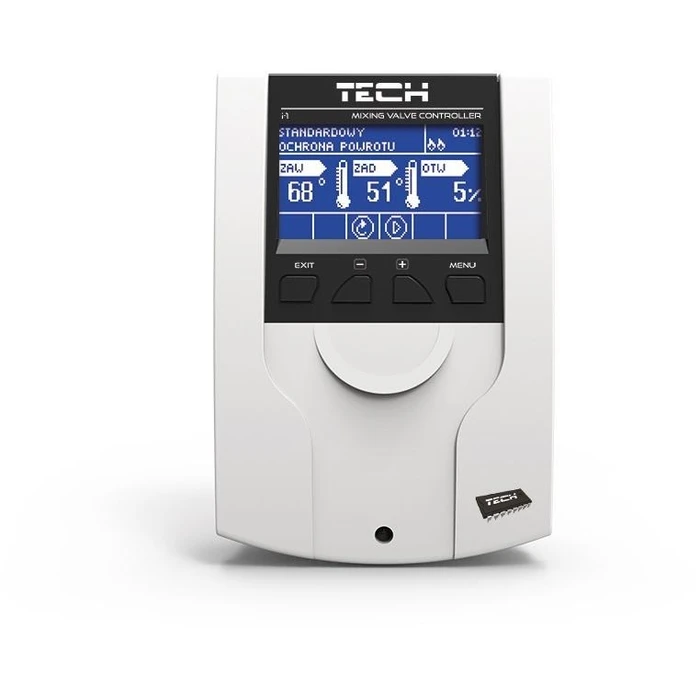

Ελεγκτής βαλβίδας ανάμειξης TECH I-1 (Sterownik zaworu mieszającego I-1)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Product Name
  TECH i-1 Mixing Valve Controller
• Brand
  TECH-STEROWNIKI (TECH Controllers)
• Model / Series
  i-1 (WG.14.0087)
• EAN / Barcode
  5902479661698
• MPN / Manufacturer code
  WG.14.0087
• SKU (provided)
  WLONONWCRJDUR
• Product Type
  Mixing valve controller / thermoregulator
• Primary Function
  Controls 3-way or 4-way mixing valves
• Expandable
  Can cooperate with two additional valve modules to control up to three mixing valves
• Pump Support
  Supports connection of an additional valve pump
• Control Modes
  Weather (outdoor-compensation) control, weekly program, room regulator support
• Return Protection
  Return temperature protection against too-low return water temperature
• Power Supply
  230 V / 50 Hz ±10%
• Maximum Power Consumption
  4 W
• Load per Output
  0.5 A
• Fuse
  1.6 A
• Ambient Operating Temperature
  10 to 50 °C
• Temperature Setting Range
  8 to 90 °C
• Sensor Temperature Resistance Range
  -30 to 99 °C
• Dimensions (L×W×H)
  160 × 123 × 38 mm
• Gross Weight
  1.057 kg
• Material / Enclosure
  Plastic housing (typical for control modules)
• Mounting
  Surface / wall mounting (typical for controller enclosures)
• Certifications / Notes
  Intended for heating-system valve management; product line includes i-1, i-1 CWU, i-1m variants
