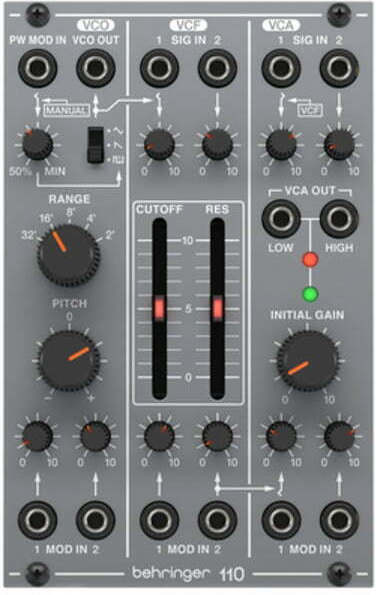

Synthesizer Behringer 110 VCO/VCF/VCA

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Module Width
  16HP (Eurorack standard)
• Module Depth
  46 mm
• Power Consumption
  +12 V: 80 mA / –12 V: 50 mA
• VCO Waveforms
  Triangle, Sawtooth, Pulse Width Modulation
• Pulse Width Control
  Manual dial & external CV input
• VCO Frequency Range
  <10 Hz to 500 Hz (no CV) / <1 Hz to 30 kHz (with CV)
• VCO CV Inputs
  2 inputs, 3.5 mm TS jacks, DC coupled, 0-10 V, 1 V/octave scale
• Filter Type
  Low-pass with resonance
• Filter Inputs & CV Inputs
  2 signal ins, 2 CV ins, with attenuators
• VCA Outputs
  2 (High impedance: 1kΩ, max +18 dBu; Low impedance: 3kΩ, max -2 dBu)
• Signal Input Impedance
  >50kΩ unbalanced
• CV Input Impedance
  >70kΩ unbalanced
• Noise Performance (VCA Outputs)
  High output noise < -60 dBu, Low output noise < -80 dBu (22 Hz - 22 kHz)
