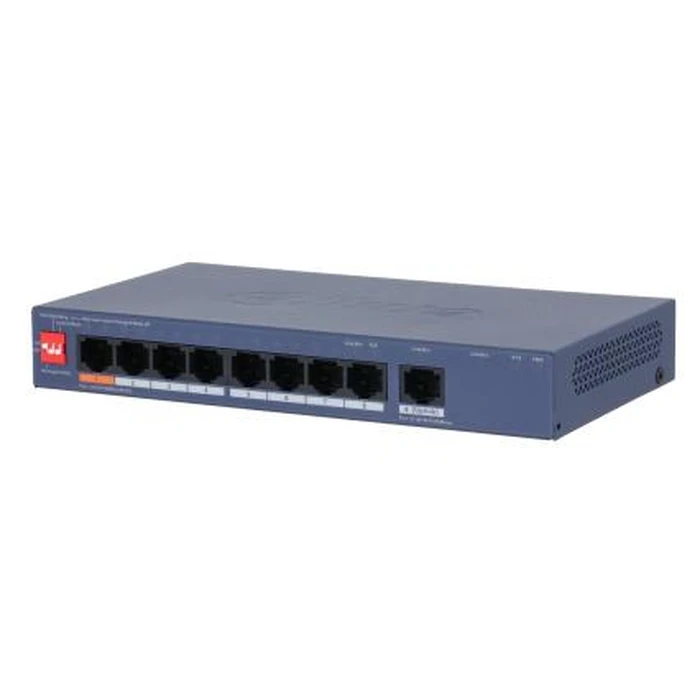

Διακόπτης DAHUA CS4009-8ET1GT-60 Managed L2, 9 θυρών (8 PoE + 1 uplink), 60W PoE

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Dahua Technology
• Model
  CS4009-8ET1GT-60
• SKU
  1462935
• MPN
  CS4009-8ET1GT-60
• EAN / Barcode
  6937552421424
• Product Type
  Managed Layer‑2 Cloud‑Managed Desktop Switch
• Management
  Web GUI and centralized cloud management via DoLynk App
• Form Factor
  Desktop / Tabletop (metal chassis)
• Total RJ-45 Ports
  9
• PoE Ports
  8 (Ports 1–8 PoE)
• Uplink Port
  1 × RJ‑45 Gigabit uplink (port 9)
• RJ-45 Port Types
  Ports 1–8: 10/100 Mbps (PoE); Port 9: 10/100/1000 Mbps (Gigabit)
• PoE Support
  IEEE 802.3af, IEEE 802.3at, Hi‑PoE (special high‑power port)
• Total PoE Budget
  60 W
• Per‑Port PoE Power
  Up to 30 W on typical PoE ports (reseller notes); Hi‑PoE port supports higher up to 60 W on specific port (per reseller info)
• PoE Features
  PoE watchdog, long‑distance PoE mode, DIP‑switch selectable modes
• Switching Capacity
  3.6 Gbps
• Forwarding Rate
  2.68 Mpps
• MAC Address Table
  ~8K entries (reseller listings)
• VLAN Support
  IEEE 802.1Q VLAN
• Loop Protection
  Supported
• Flow Control
  IEEE 802.3x
• Operating Temperature
  ‑10 °C to 55 °C
• Power Input
  53 V DC external power adapter
• Power Consumption
  Idle ~4 W (product page); total varies with PoE load
• Surge / Protection
  Air discharge 8 kV; common‑mode lightning protection 6 kV
• Material
  Metal
• Color
  Black
• Dimensions (device)
  184.6 × 103.3 × 27 mm (L × W × H)
• Net Weight
  ~360 g
• Gross / Package Weight
  ~920 g
• Mounting
  Desktop / tabletop
• Distance Mode
  Extended PoE mode up to ~250 m (reseller claims)
• Cloud Functions
  Real‑time network monitoring, centralized management via DoLynk
• Notes on ports
  Official Dahua spec: 8×10/100 PoE + 1×1G uplink; some reseller catalogs list 8×Gigabit PoE — use Dahua official page as authoritative
