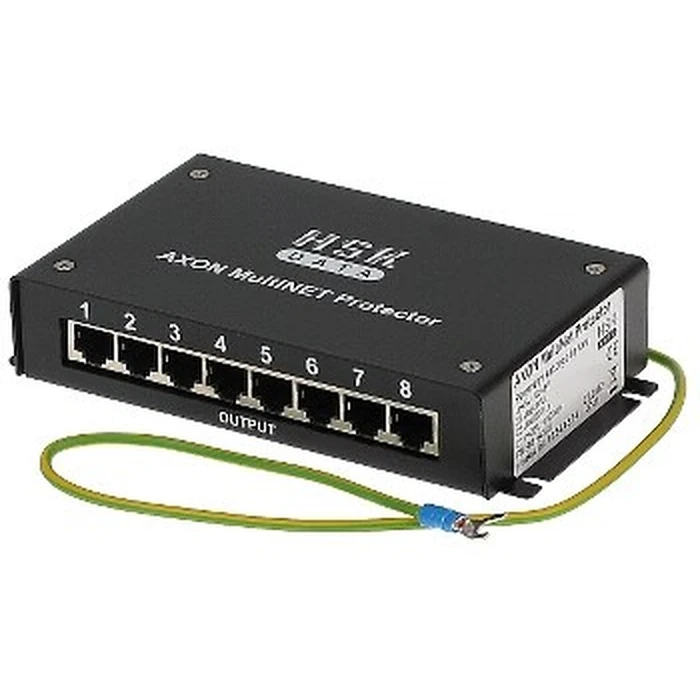

Προστατευτικό υπερτάσεων AXON Multi Net Prot. 8

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Product Name
  AXON-MULTINET-8 (Surge Protector AXON Multi Net Prot. 8)
• Brand
  AXON
• MPN
  54975
• EAN
  5904743333904
• SKU
  WLONONWCRPXYH
• Number of Channels
  8 independent channels (4 inputs, 4 outputs)
• RJ-45 Ports
  8 x RJ-45 shielded sockets (8P8C)
• Transmission Speed
  10 / 100 / 1000 Mbps (Gigabit Ethernet)
• Protected Wire Pairs
  All 4 twisted pairs (1-2, 3-6, 4-5, 7-8)
• Nominal Voltage (U_N)
  5 V
• Maximum Voltage (U_C)
  6 V
• Surge Protection Line-to-Line
  ≤ 40 V @ 1 kV/µs (Class C3)
• Surge Protection Line-to-Ground
  ≤ 600 V @ 1 kV/µs (Class C3)
• Nominal Discharge Current (i_N)
  20 A @ 10/1000 µs (line-to-line and line-to-ground)
• Housing Material
  Metal (black / powder-coated)
• Dimensions (HxWxD)
  162 x 90 x 37 mm
• Product Weight
  500 g
• Grounding Wire Length
  0.5 m earthing lead
• Standards
  EN 61643-21 / PN-EN 61643-21
• Mounting / Installation
  Requires connection to protective earth via grounding lead
• Application
  Protection of Ethernet network equipment (modems, routers, switches, NICs)
