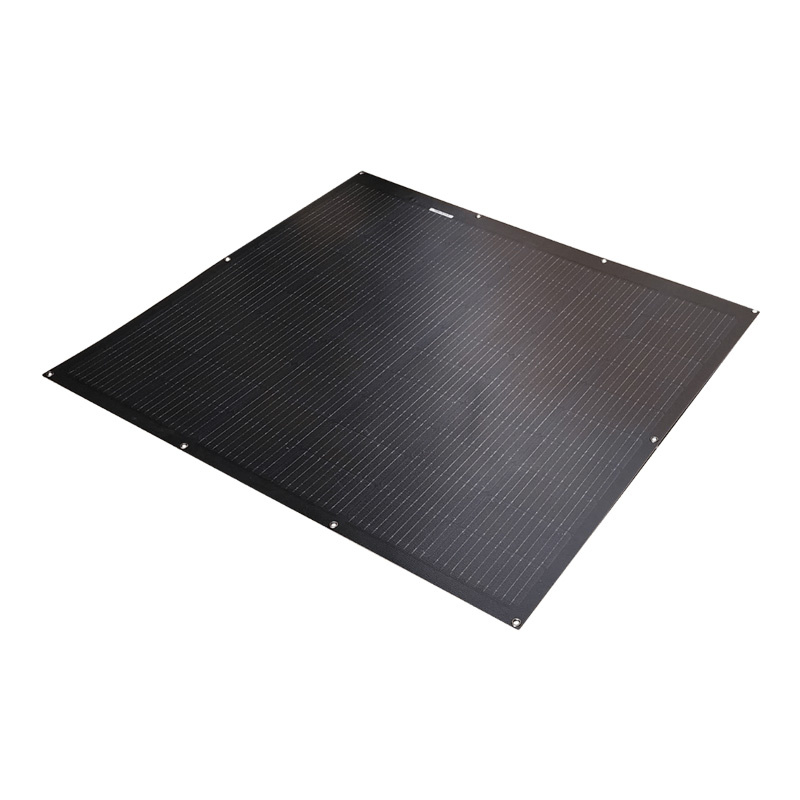

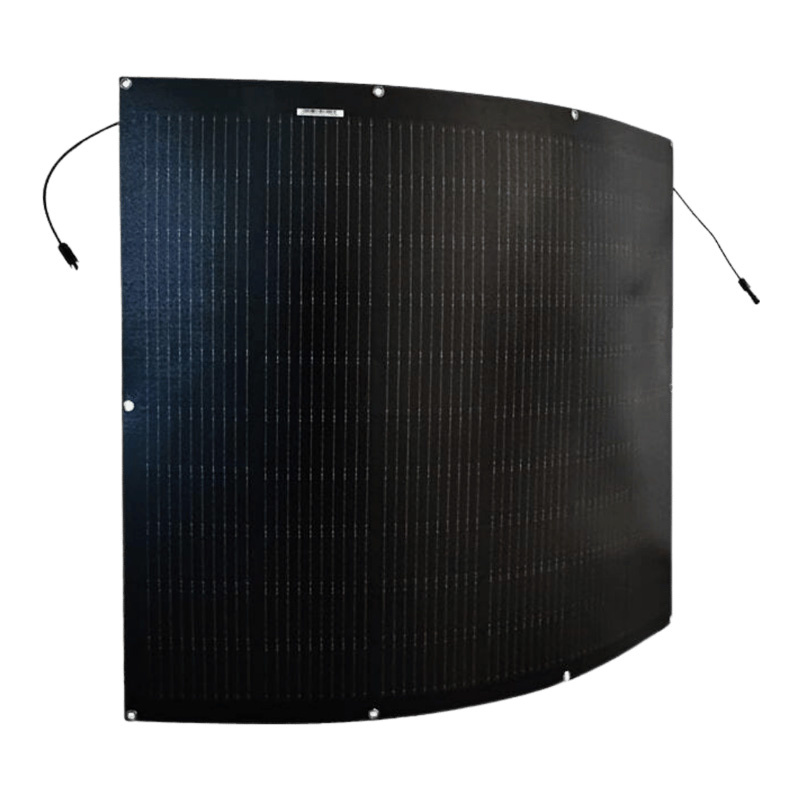

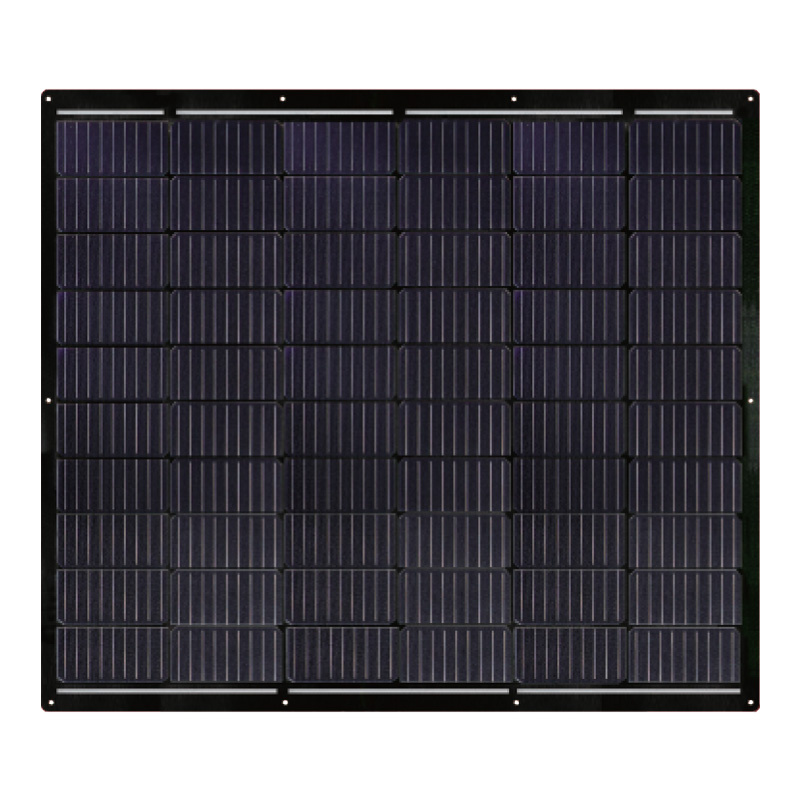

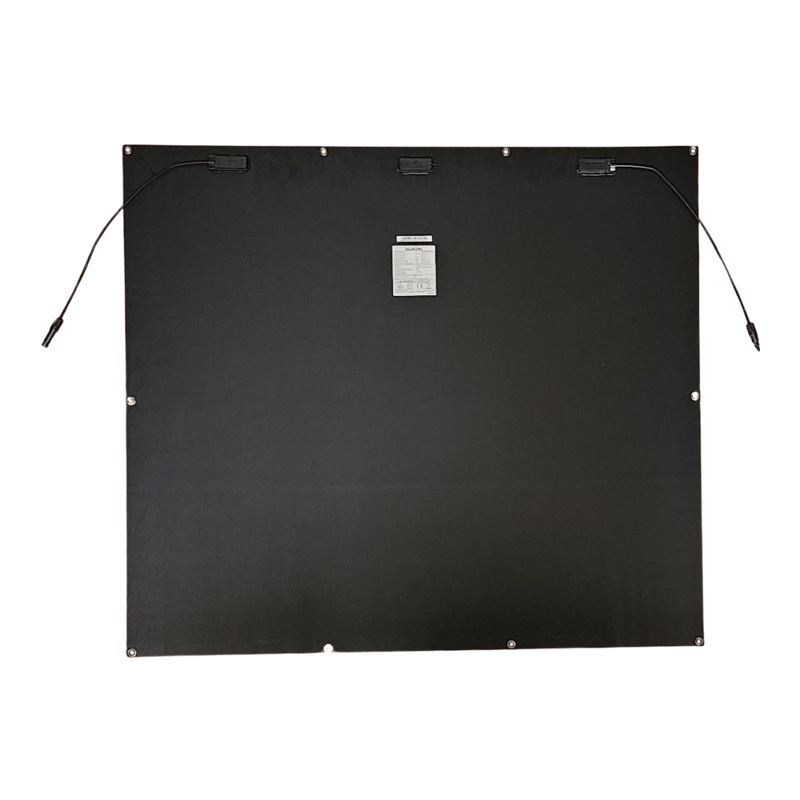

Sunman ευέλικτο φωτοβολταϊκό πάνελ SMF200J 200W (SMF200J-6X10DB-e)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Sunman
• Model / MPN
  SMF200J-6X10DB-e
• SKU / EAN
  5907085526355
• Product type
  Flexible / frameless photovoltaic panel (glass-free)
• Technology
  Monocrystalline half-cell, eArc composite (glass-free)
• Maximum power (Pmax)
  200 W
• Maximum power voltage (Vmp)
  20.7 V
• Maximum power current (Imp)
  9.65 A
• Open-circuit voltage (Voc)
  24.5 V
• Short-circuit current (Isc)
  10.69 A
• Module efficiency
  Listed 16.26% (some sources report 19.3%)
• Power tolerance
  0 / +5 W
• Maximum system voltage
  1500 V DC (IEC) (listed)
• Maximum series fuse rating
  20 A
• Application class
  Class A
• NMOT
  41 ± 2 °C
• NMOT Pmax
  161.2 W (listed)
• NMOT Vmp
  20.3 V
• NMOT Imp
  7.93 A
• NMOT Voc
  24.5 V
• NMOT Isc
  8.54 A
• Operating temperature range
  -40 °C to 85 °C
• Cell size / type
  Monocrystalline half-cell (listed sizes: 166 mm or 182 mm in various datasheets)
• Cell count
  Listed variants: 72 cells (8×9) in some listings; official PDF lists 60 cells (6×10)
• Module dimensions
  Conflicting listings: 1420×881×2 mm; 1172×1026×2 mm; 1159×1026×2 mm
• Weight
  Listed 2.8 kg ±3% in one source; product sheet / retailers list 2.6–2.7 kg (commonly ~2.7 kg)
• Cable
  4.0 mm² photovoltaic cable, approximately ±450 mm length
• Connector
  MC4 compatible
• Front surface
  Glass-free eArc composite technology
• Backsheet / finish
  Frameless, cell-side black (listed)
• Protection rating
  IP68 (PDF source)
• Temperature coefficient Pmax
  -0.34 %/°C
• Temperature coefficient Voc
  -0.26 %/°C
• Temperature coefficient Isc
  0.033 %/°C
• Certifications
  IEC61215:2016, IEC61730:2016, UL61730 (listed)
• Warranty (product)
  5 years (listed)
• Warranty (performance)
  Distributor listing: up to 25 years linear output warranty (reported)
• Recommended applications
  Flexible/mobile installations, balcony/boat/RV/portable, surfaces with weight/wind/mounting constraints
