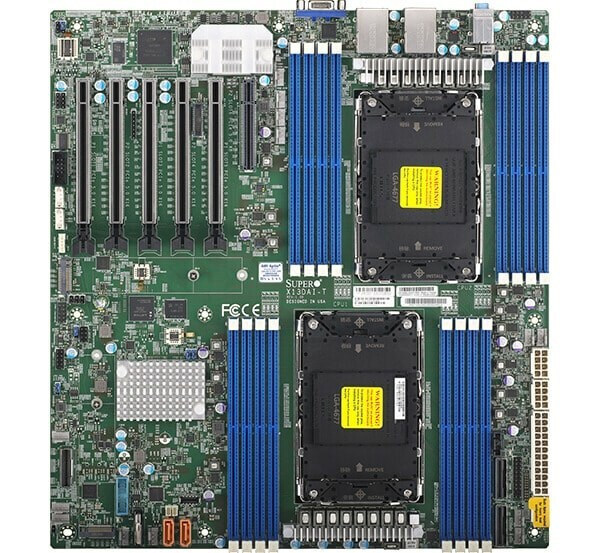

Sum MBD-X13DAI-T Μητρική Κάρτα Extended ATX (LGA 4677, Intel C741, DDR5, 16 DIMM, 10Gb LAN)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Model
  MBD-X13DAI-T
• MPN
  MBD-X13DAI-T-O
• SKU
  PLGSUMSIN0029
• EAN
  672042886364
• Brand
  Sum
• Form factor
  Extended ATX
• Socket
  LGA 4677 (Socket E)
• Compatible processor series
  Intel® Xeon®
• Chipset family
  Intel
• Chipset
  Intel C741
• Component for
  Server / Workstation
• Supported memory types
  DDR5-SDRAM
• Number of memory slots
  16
• Memory topology
  Dual Channel
• Maximum internal memory
  4 TB
• Maximum RDIMM memory
  256 GB
• Supported memory clock speeds
  4000, 4400, 4800, 5600 MHz
• Supported memory module capacities
  256MB, 16GB, 32GB, 64GB, 128GB
• Memory voltage
  1.1 V
• ECC compatibility
  ECC
• PCI Express x16 (Gen5) slots
  5
• PCI Express x8 slots
  1
• PCI Express x16 4.0 slots
  (see Gen5 x16 slots)
• Number of SATA III connectors
  8
• SATA III 6Gb/s ports
  8
• RAID support
  Yes
• RAID levels
  1, 5, 10
• LAN controller
  Broadcom BCM57416
• Ethernet interface type
  10 Gigabit Ethernet
• Ethernet LAN (RJ-45) ports quantity
  2
• Wi‑Fi / Bluetooth
  No
• USB 2.0 connectors
  2 (internal)
• USB 2.0 ports quantity
  4 (total)
• USB 3.2 Gen 1 ports
  2
• USB 3.2 Gen 2 ports
  1
• Number of COM connectors
  1
• VGA (D-Sub) ports quantity
  1
• Power fan connector
  Yes
• TPM connector
  Yes
• ACPI version
  6.4
• BIOS type
  UEFI AMI
• SMBIOS version
  3.5
• Supported storage drive interfaces
  SATA III
• Operating temperature
  10 - 35 °C
• Storage temperature
  -40 - 70 °C
• Operating relative humidity
  8 - 90%
• Storage relative humidity
  5 - 95%
• Dimensions (W x D)
  307.3 mm x 332.7 mm
• Product weight (approx)
  1300 g
• Package weight (approx)
  2200 g
