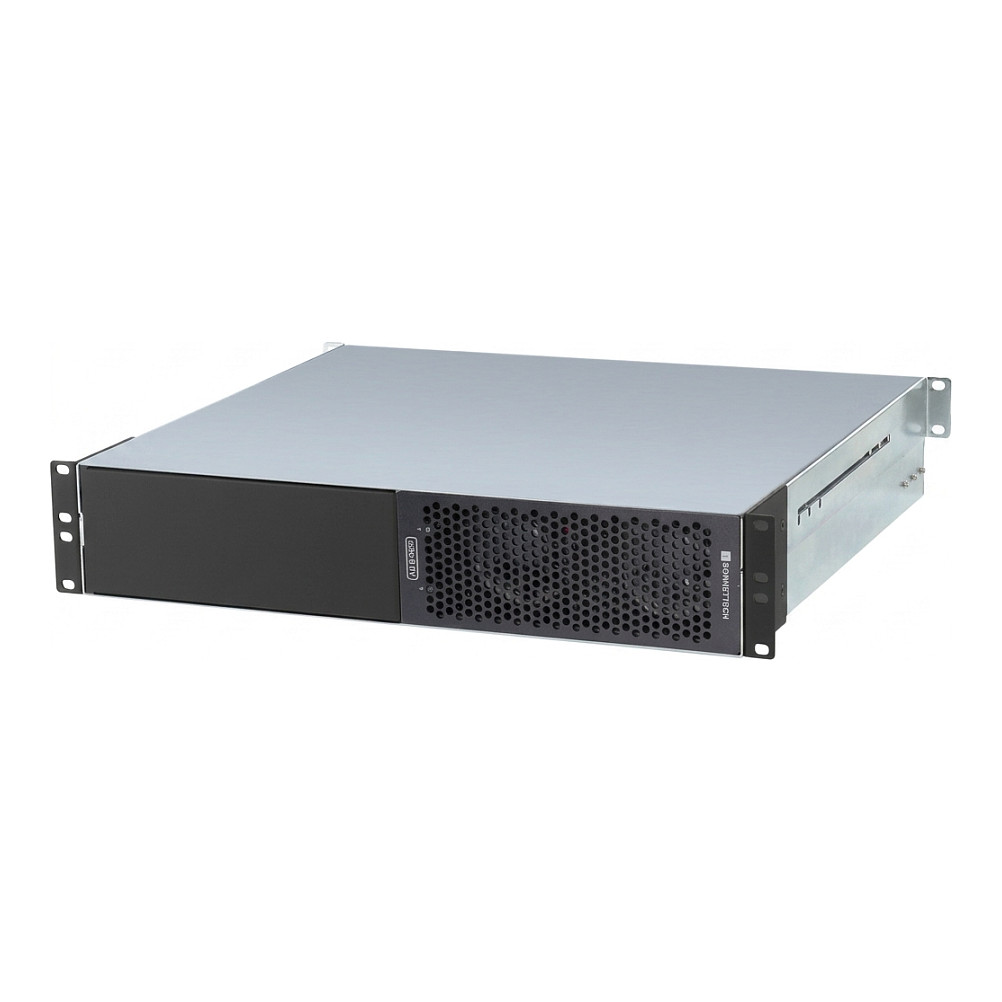

Sonnet Echo II DV Rackmount Διπλή Υποδοχή Thunderbolt 5 σε PCIe, 2U Rackmount (2 υποδοχές πλήρους μήκους, μη-GPU)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Sonnet
• Model / MPN
  ECHO-2RDV-T5
• SKU
  21229797
• EAN / Barcode
  0732311014154
• Form Factor
  Rackmount 2U steel chassis
• PCIe Slots
  2 × x16 PCIe 4.0 slots
• Card Support
  Two full-length (up to 12.28 in / 31.2 cm), single-width PCIe cards (non‑GPU only)
• Thunderbolt Interface
  Thunderbolt 5 (dual interfaces — independent per slot); backward compatible with Thunderbolt 4 and 3
• Max Throughput per Slot
  Up to 6,000 MB/s per card on Thunderbolt 5 hosts; reduced throughput on TB4/TB3
• Thunderbolt Ports
  4 total (2 host connections, 2 for daisy-chaining / secondary connections)
• Multi‑Host Support
  Can connect to two computers; each PCIe slot can operate independently
• Power Supply
  Universal 400W internal PSU
• Auxiliary Power
  Two 75W auxiliary power connectors for power-hungry non‑GPU cards
• Cooling
  Active cooling (dual fans noted in third‑party reviews)
• Compatibility
  macOS and Windows systems with Thunderbolt 5; supports TB4/TB3 hosts at lower bandwidth
• Supported Card Types
  Video capture, DV I/O, NVMe/SSD storage adapters, audio DSP, 10GbE/25GbE NICs, SAS/SATA HBAs, other specialty PCIe cards
• Weight (product)
  ~7000 g (approximate, chassis only)
• Package Weight
  ~9000 g (approximate packaged)
• External Dimensions (approx.)
  Fits standard 19" rack, 2U height (approx. chassis depth supports full-length cards)
• Materials
  All‑metal steel enclosure
• Included Accessories
  Universal 400W power cable, accessory cables and mounting hardware (rack ears), product documentation
• Typical Use Cases
  Broadcast/post‑production, DIT, video capture/transcoding, high‑speed storage and networking expansion
• Manufacturer
  Sonnet Technologies
