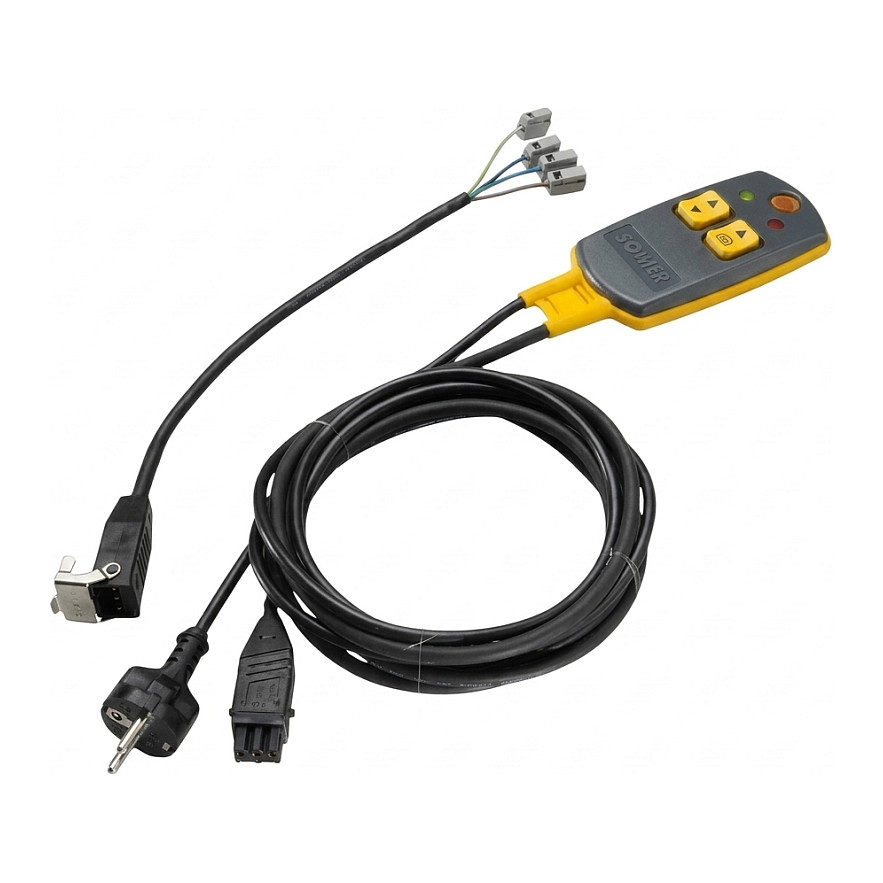

SOMFY 9015971 Universal Setting Kabel Kit - Καθολικό κιτ καλωδίων ρύθμισης για μοτέρ 230V

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Somfy
• Model / MPN
  9015971
• SKU
  21229500
• EAN / Barcode
  3660849515027
• Product type
  Universal setting cable kit / universal adjustment cable
• Primary use
  Setting, commissioning and testing 230 V AC tubular motors (roller shutters)
• Compatible motor types
  RTS, io (radio) and WT (wired) motors; documented compatibility with LS40, LT, WT
• Supply voltage
  220–240 V AC, 50 Hz (market-dependent documents list 230 V AC)
• Output voltage
  220–240 V AC (230 V AC listed in some docs)
• Maximum output current
  4 A
• Protection rating
  IP40
• Protection class / Safety level
  Class I (documents vary; some list Category II)
• Standards / Compliance
  EN 61439-1 / IEC 60439-1 (document-dependent)
• Operating temperature range
  -10 °C to +50 °C (some documents list 10 °C to 50 °C)
• Environmental conditions
  Dry rooms / indoor use
• Dimensions (W×H×L)
  7 × 3 × 14 cm
• Product weight (incl. cable)
  567 g (documented); packaged weight ~668 g
• Kit contents
  1 × Setting cable USC (9 015 577), 1 × Adapter cable PASS S (9 015 951)
• Indicators & controls
  Voltage indicator LED, RTS connection LED, Up/Down controls, RTS/WT selection button
• Connector note
  Some IO hybrid variants/updates use a 5-pin connector instead of 4 pins
• Safety note
  Never connect more than one motor at the same time
