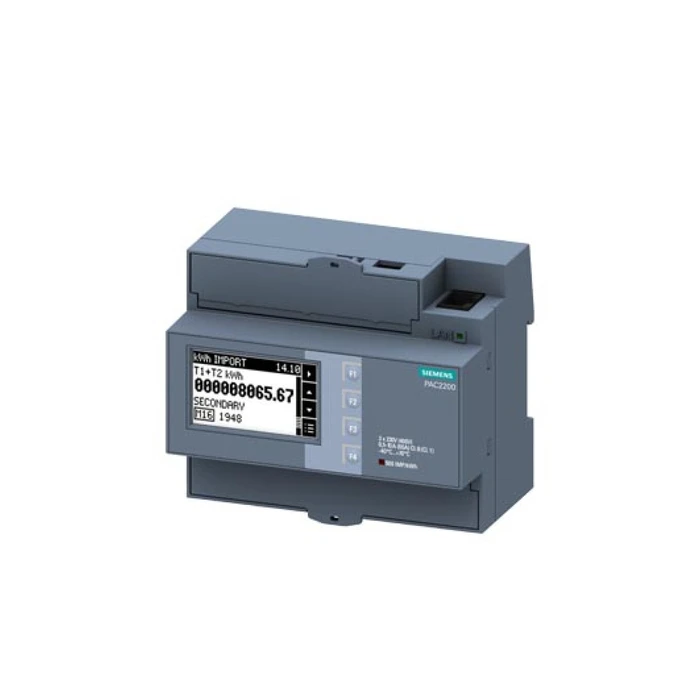

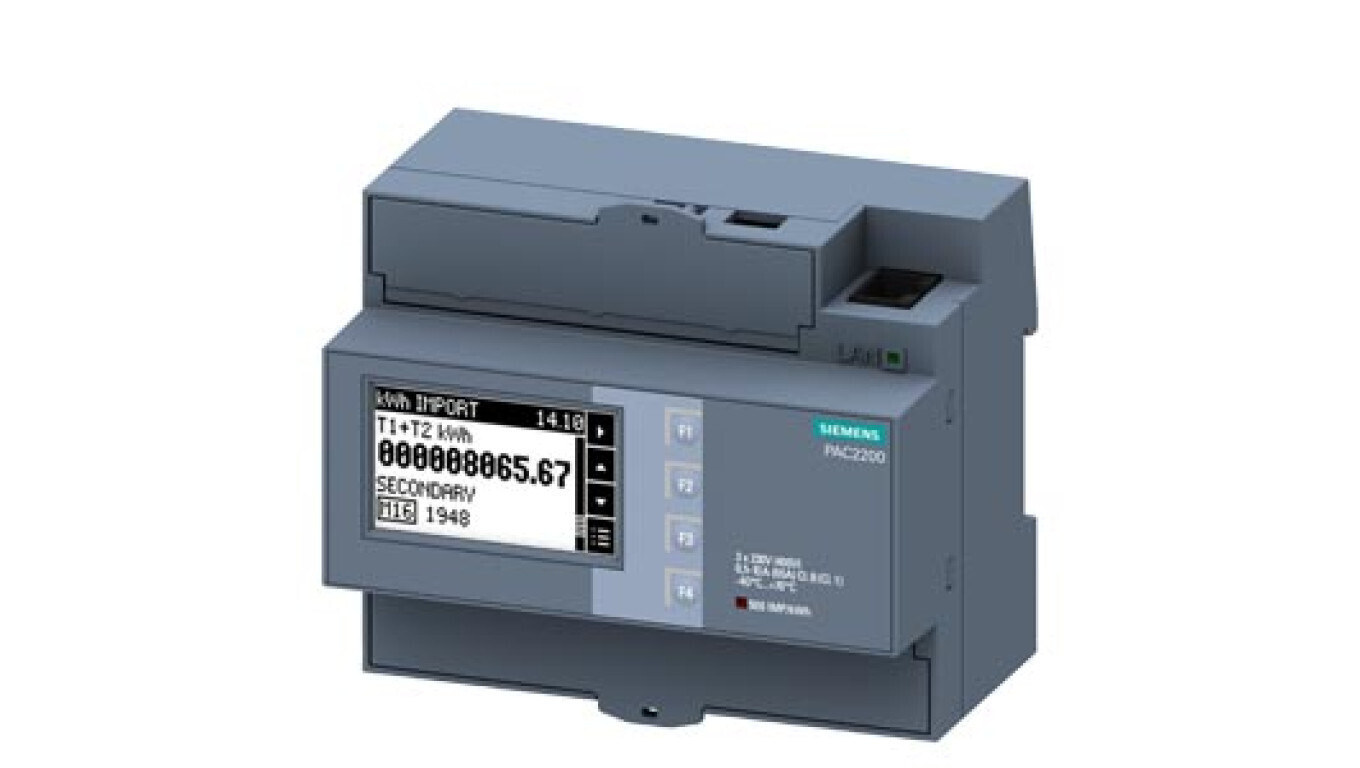

Siemens SENTRON PAC2200 7KM2200-2EA40-1JA1 Μετρητής Ενέργειας DIN-rail 35mm LCD MODBUS TCP/IP 65A

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Siemens
• Model
  7KM2200-2EA40-1JA1 (PAC2200)
• Device Type
  Network / Energy Meter (Power and network parameter meter)
• Mounting
  35 mm DIN-rail
• Accuracy Class
  Class B
• Number of Phases
  Single-phase
• Rated Current (max)
  65 A
• Nominal Voltage / Voltage Measurement
  Up to 400 VAC
• Display
  LCD
• Communication Protocols
  Modbus TCP/IP
• Communication Interface
  Ethernet RJ45
• Digital Inputs
  1 DI (digital input)
• Digital Outputs
  1 DO (digital output)
• Measured Parameters
  Voltage, Current, Active/Reactive Energy, Power, Power Factor, Frequency (general electrical parameters)
• Power Supply
  From measured voltage (self-powered) / nominally powered from system voltage
• Typical Applications
  Energy monitoring, consumption analysis, integration with BMS/SCADA
• Housing / Material
  DIN-rail industrial plastic housing
• Compliance / Standards
  Designed for electrical measurement and network integration (accuracy Class B)
