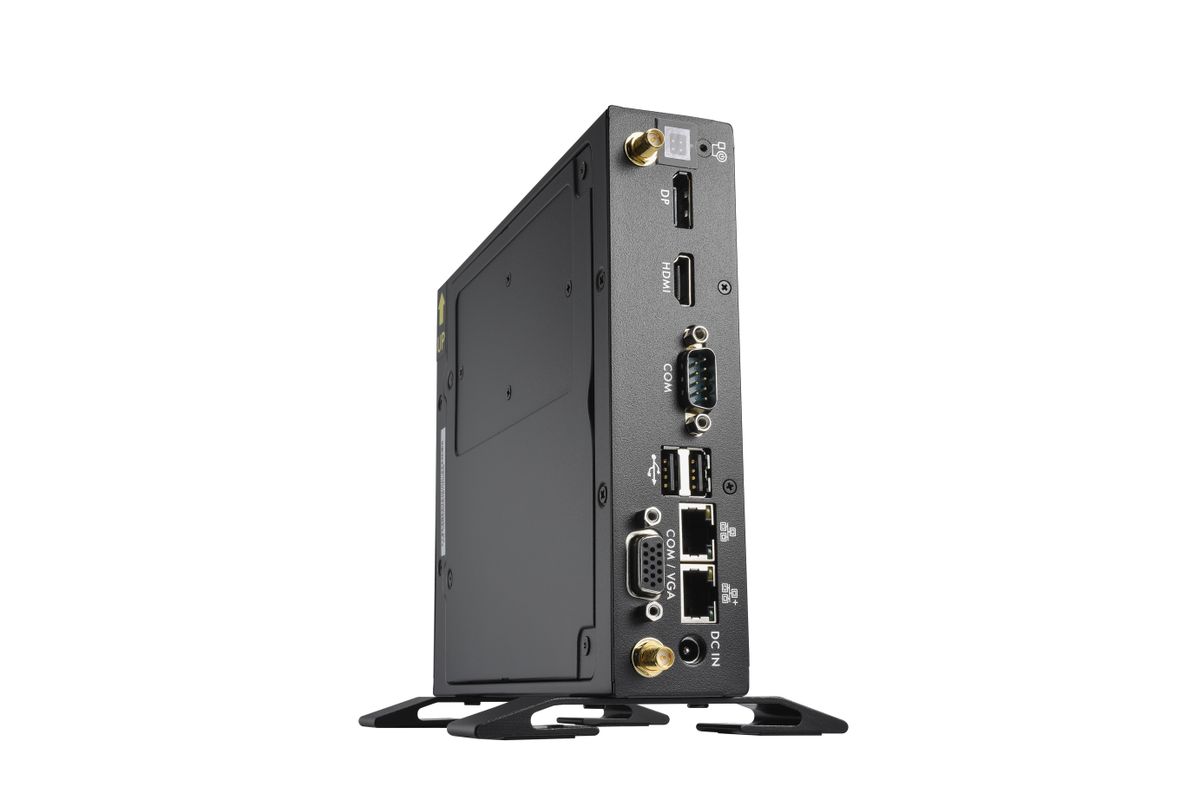

Shuttle DS50U_Bundle_8GB Αθόρυβο Barebone PC - Intel Celeron 7305, 8GB DDR5

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Shuttle
• Model
  DS50U_Bundle_8GB
• SKU
  605764
• MPN
  DS50U_ Bundle_8GB
• EAN / Barcode
  4046047104543
• Product family
  XPC slim
• Category
  Barebone PC / slim mini PC
• Product type
  Fanless barebone computer
• Chassis volume
  1.3 litres
• Intended use
  Compact business, industrial, kiosk, POS, digital signage, control applications
• CPU
  Intel Celeron 7305 (Alder Lake-U)
• CPU cores / threads
  5 cores / 5 threads (1 P-core + 4 E-cores)
• P-core clock
  1.1 GHz
• E-core clock
  0.9 GHz
• Cache
  8 MB Intel Smart Cache (L3)
• TDP / Base power
  15W
• Graphics
  Integrated Intel processor graphics (up to 1,100 MHz, 48 EUs)
• Included memory
  8GB DDR5 SO‑DIMM (DDR5‑4800 / PC5‑38400)
• Memory type
  DDR5 SDRAM, 262‑pin SO‑DIMM

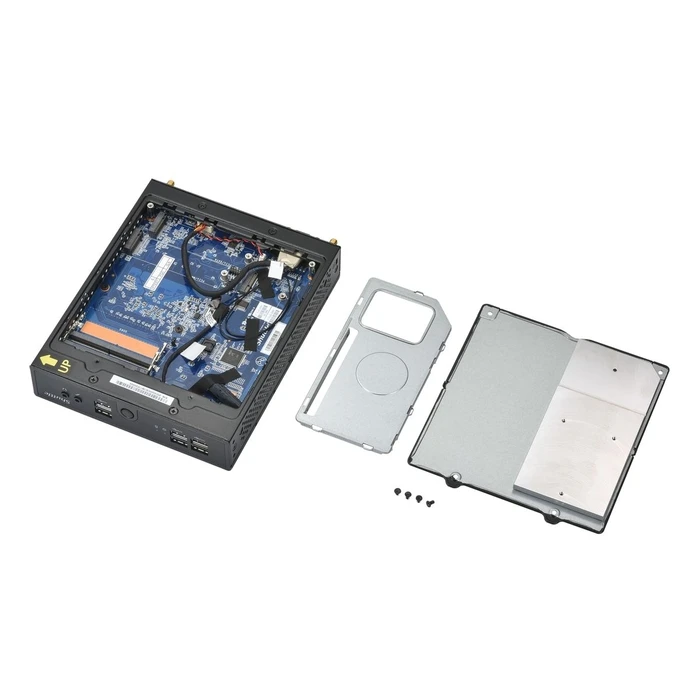

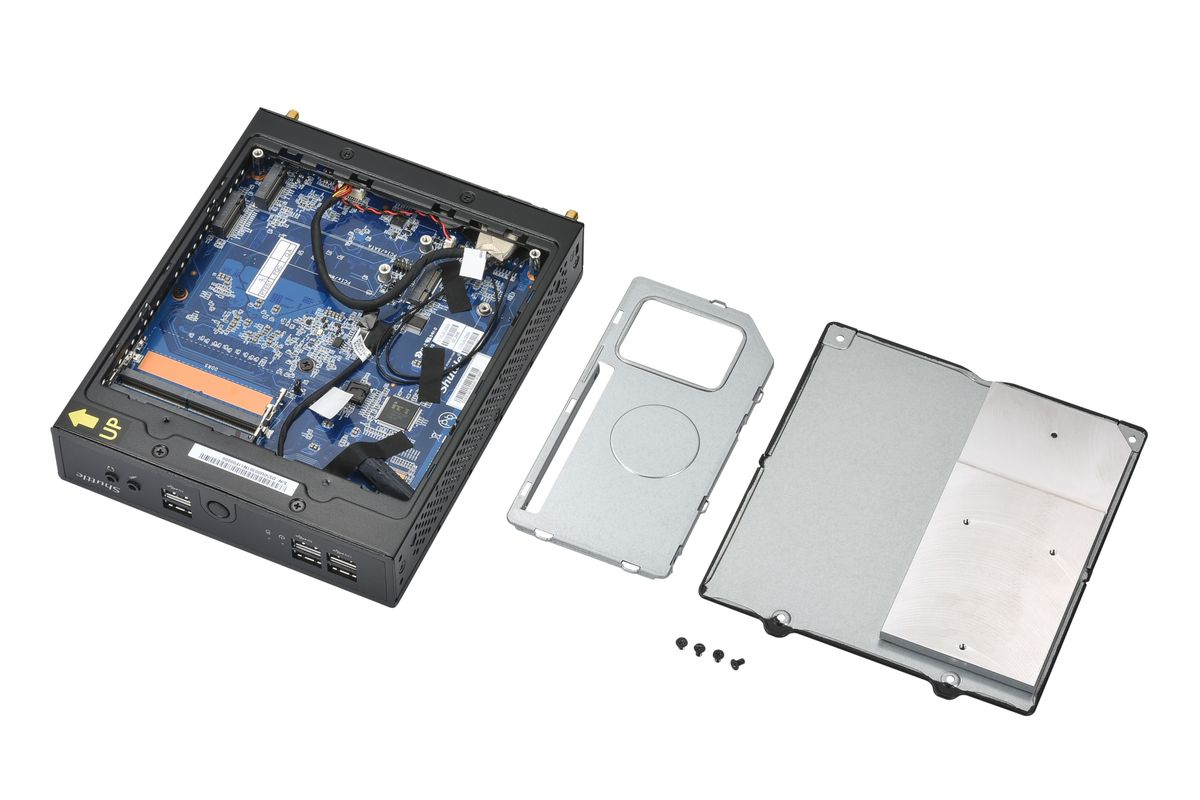

• Memory slots
  2 × SO‑DIMM (dual‑channel supported)
• Maximum memory per slot
  32GB
• Maximum total memory
  64GB
• ECC / registered memory
  Not supported (unbuffered SO‑DIMMs required)
• Storage bays
  1 × 2.5" SATA bay
• M.2 slots
  2 × M.2 2280 for storage (one supports PCIe Gen4×4)
• M.2 expansion
  1 × M.2 E‑key for wireless module

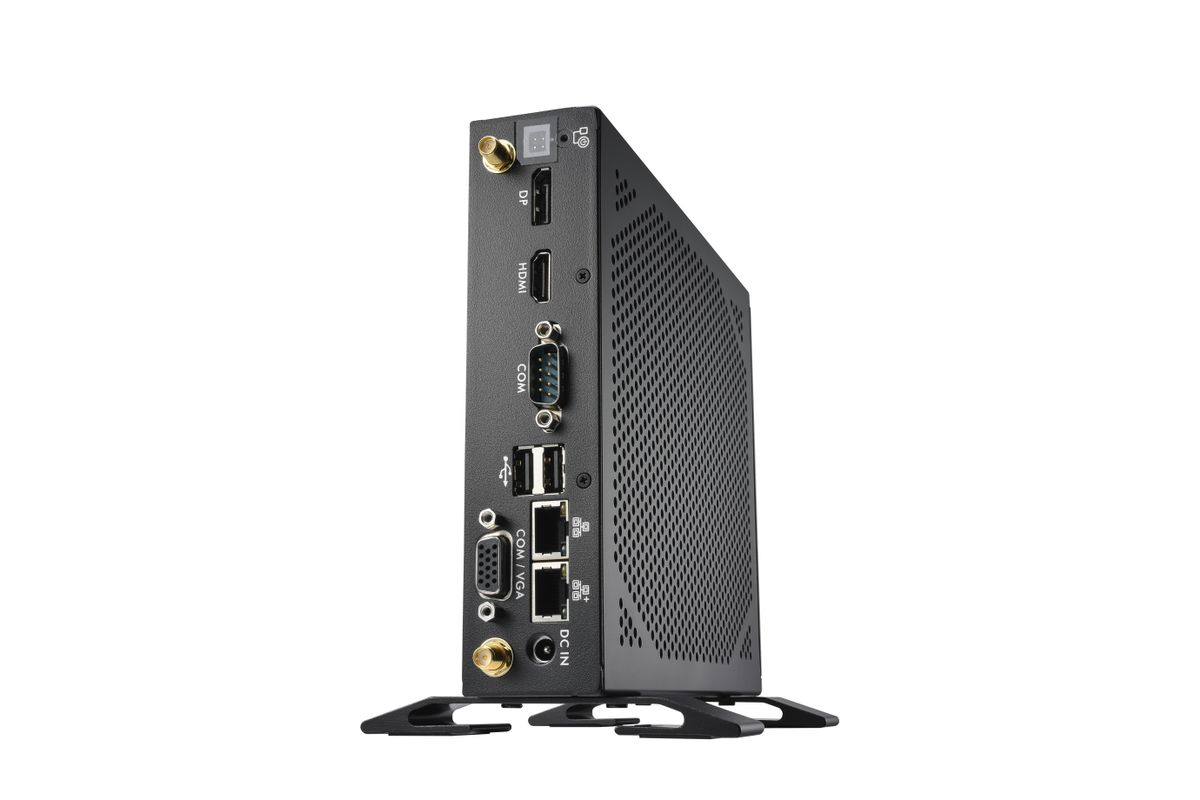

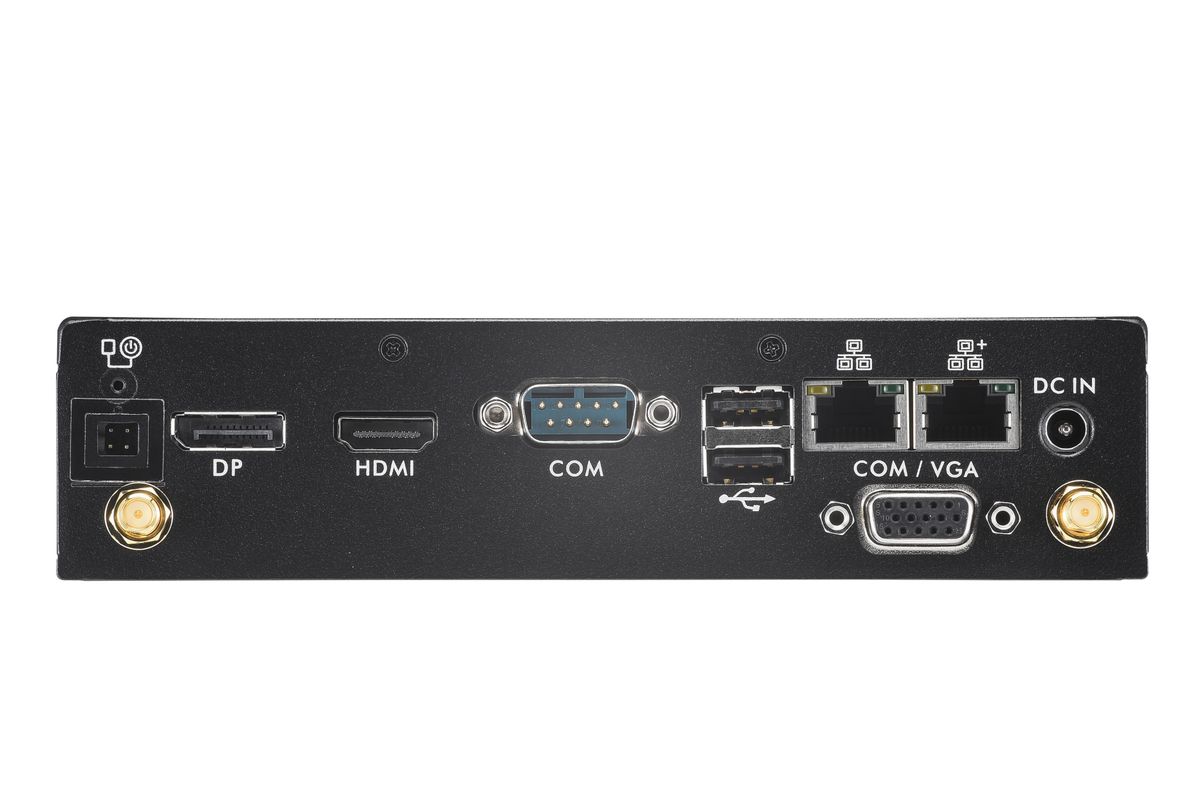

• Display outputs
  1 × HDMI, 1 × DisplayPort, 1 × VGA
• Multi‑display
  Supported via available outputs
• Ethernet
  2 × RJ‑45 Gigabit Ethernet

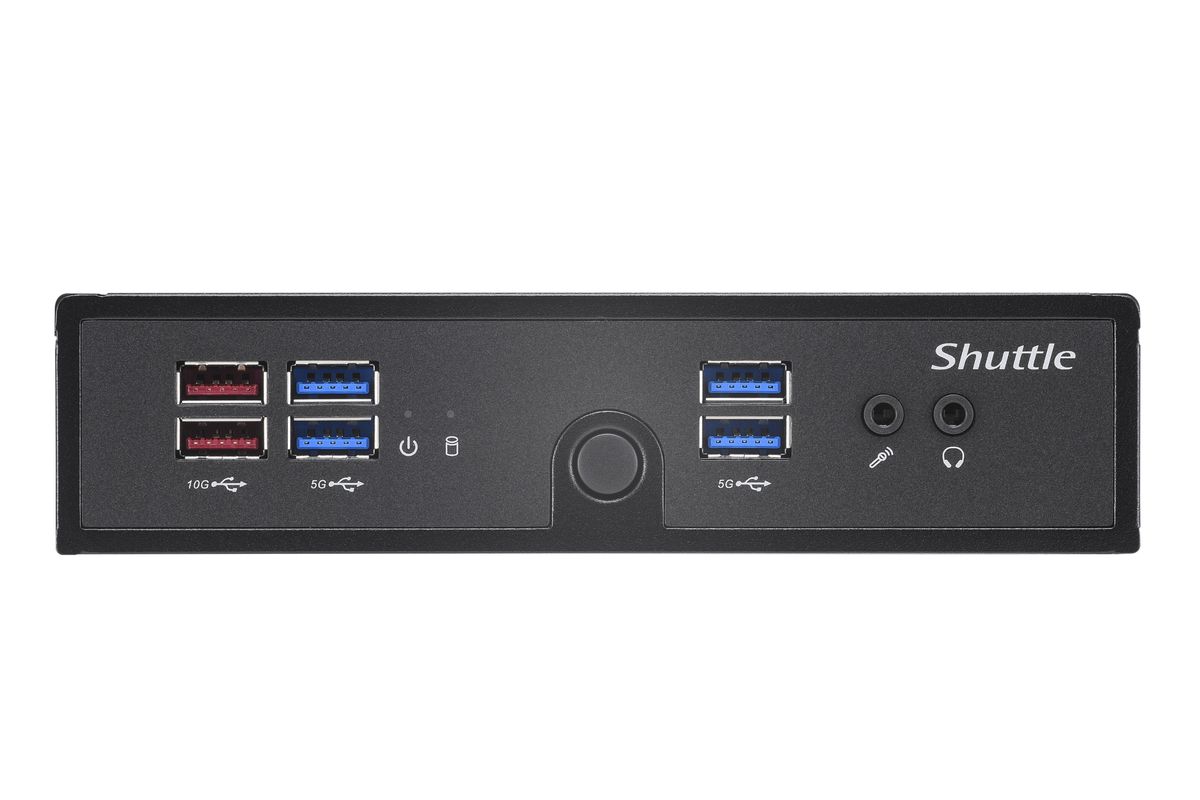

• USB ports
  8 total (mix of USB 3.0/3.1 Type‑A and USB 2.0 Type‑A)
• Audio
  Headphone jack, Microphone jack
• Cooling
  Fanless heat‑pipe passive cooling system
• Chassis material
  Metal compact chassis
• Volume
  Approximately 1.3 L
• Product weight
  900 g
• Package weight
  ~2500 g
• Dimensions (chassis)
  Compact slim form factor (manufacturer datasheet dimensions apply)
• Included accessories
  8GB DDR5 module (in sealed accessory box), RAM thermal pads, standard accessory materials
• Not included
  Operating system, 2.5" SSD/HDD, M.2 SSD, wireless module, keyboard/mouse, monitor
