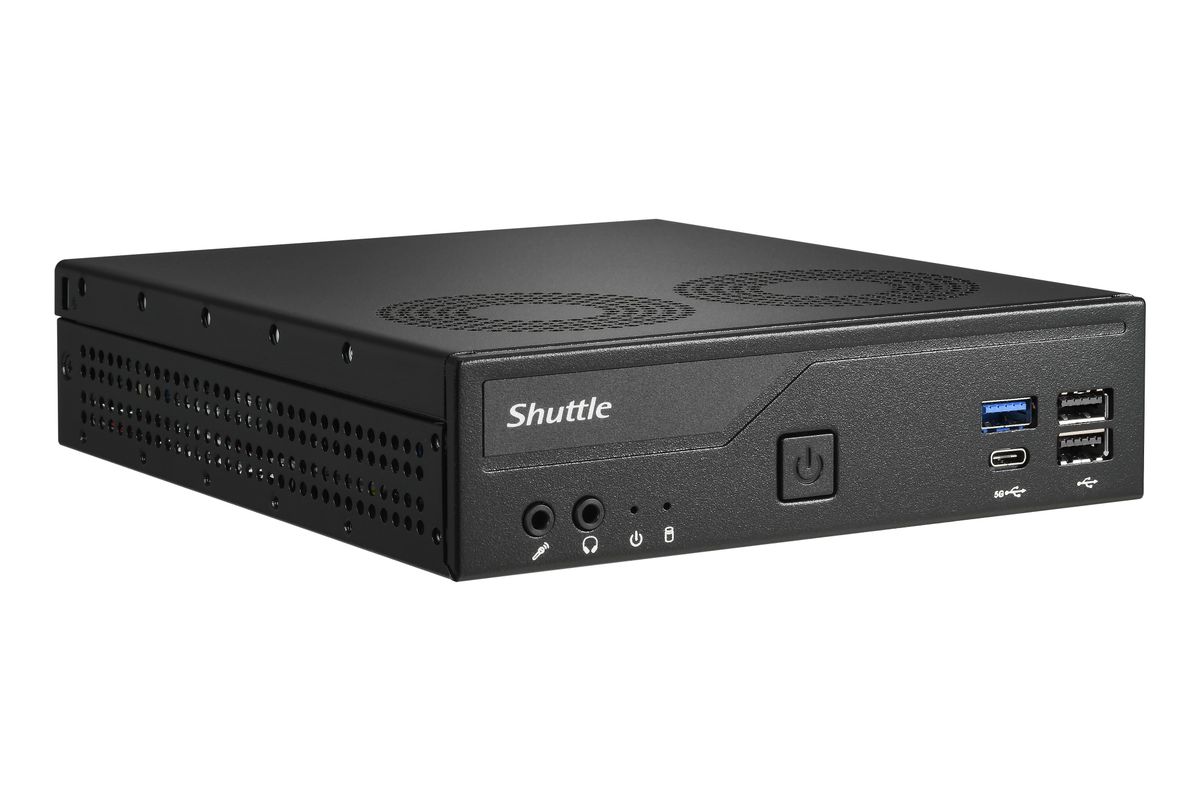

Shuttle DH610V2 XPC slim Barebone με 8GB DDR5 RAM

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Shuttle
• Model
  DH610V2 (XPC slim)
• SKU
  605767
• MPN
  DH610V2_Bundle_8GB
• EAN
  4046047104567
• Category
  Barebone / XPC slim / compact desktop chassis
• Chassis volume
  Approximately 1.35 litres
• Dimensions (L×W×H)
  190 × 165 × 43 mm
• Net weight
  Approximately 1300 g
• Gross weight (packaged)
  Approximately 2100 g
• Color
  Black
• Chassis material
  Metal slim enclosure
• VESA mount
  Included (VESA mounting support)

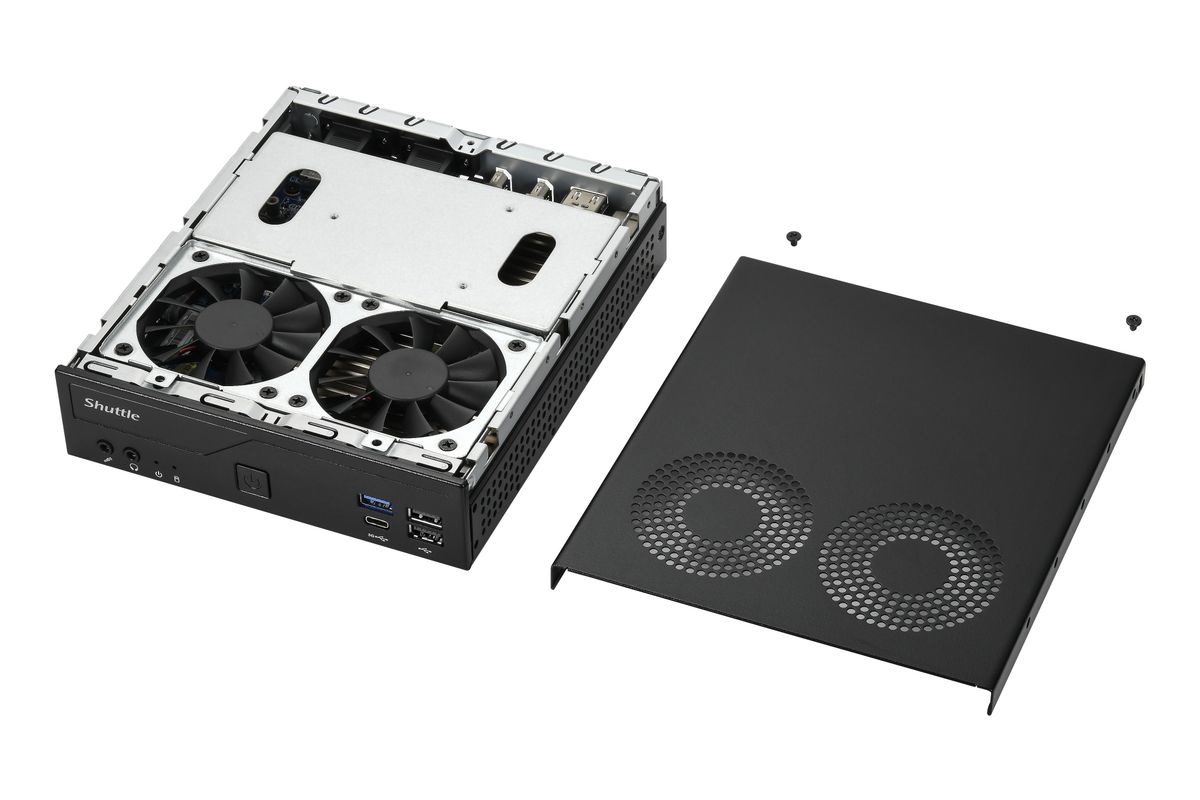

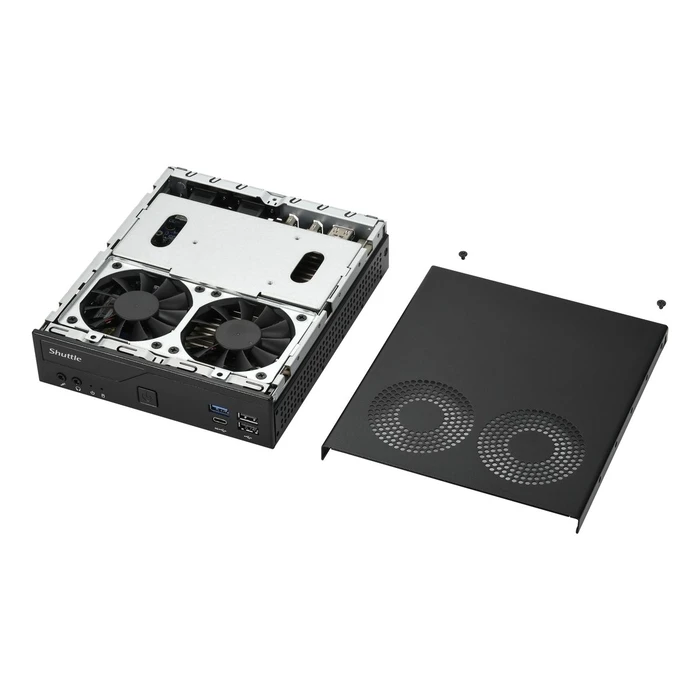

• Cooling
  Active CPU cooling with heat‑pipe and fan assembly
• Operating temperature
  Suitable up to approx. 50 °C ambient

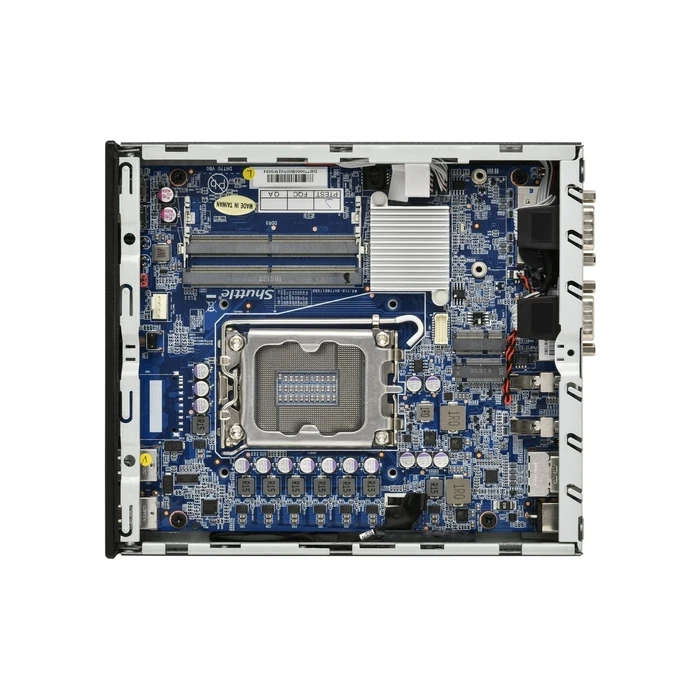

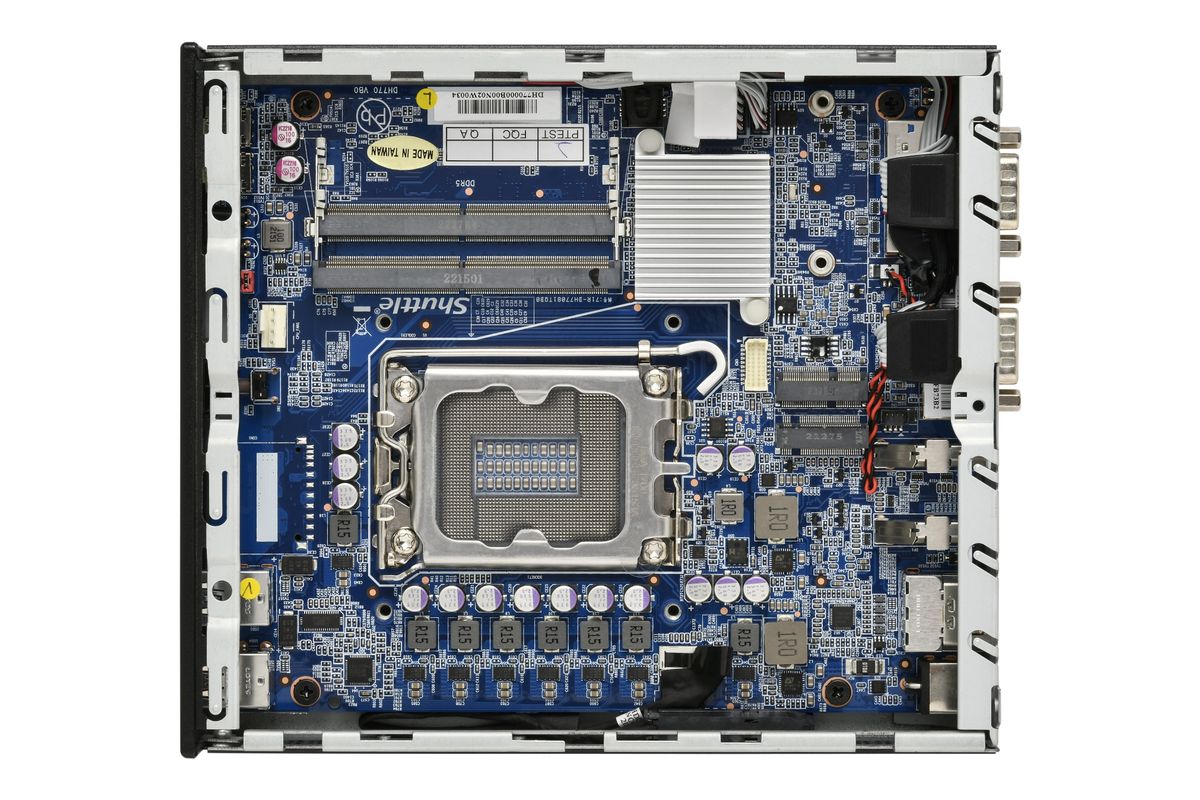

• CPU socket
  Intel LGA1700
• Chipset
  Intel H610 Express
• Supported processors
  Intel 12th, 13th and 14th Gen Core (i3/i5/i7/i9); Pentium Gold and Celeron (LGA1700)
• Supported CPU TDP
  Up to 65 W (processor cooling support)
• Included memory
  1 × 8GB DDR5 SO‑DIMM
• Memory type
  DDR5 SDRAM, unbuffered, non‑ECC, SO‑DIMM
• Memory slots
  2 × 262‑pin SO‑DIMM slots
• Memory channels
  Dual‑channel supported
• Supported memory speed
  DDR5‑5600 / PC5‑44800 (1.1 V)
• Maximum memory
  Up to 96GB total (up to 48GB per slot; per‑CPU generation limitations may apply)
• M.2 storage
  1 × M.2 2280 slot (PCIe NVMe x4 or SATA supported)
• 2.5" drive bay
  1 × 2.5" SATA bay
• Wireless expansion
  1 × M.2 2230 E‑Key slot for optional Wi‑Fi/BT module

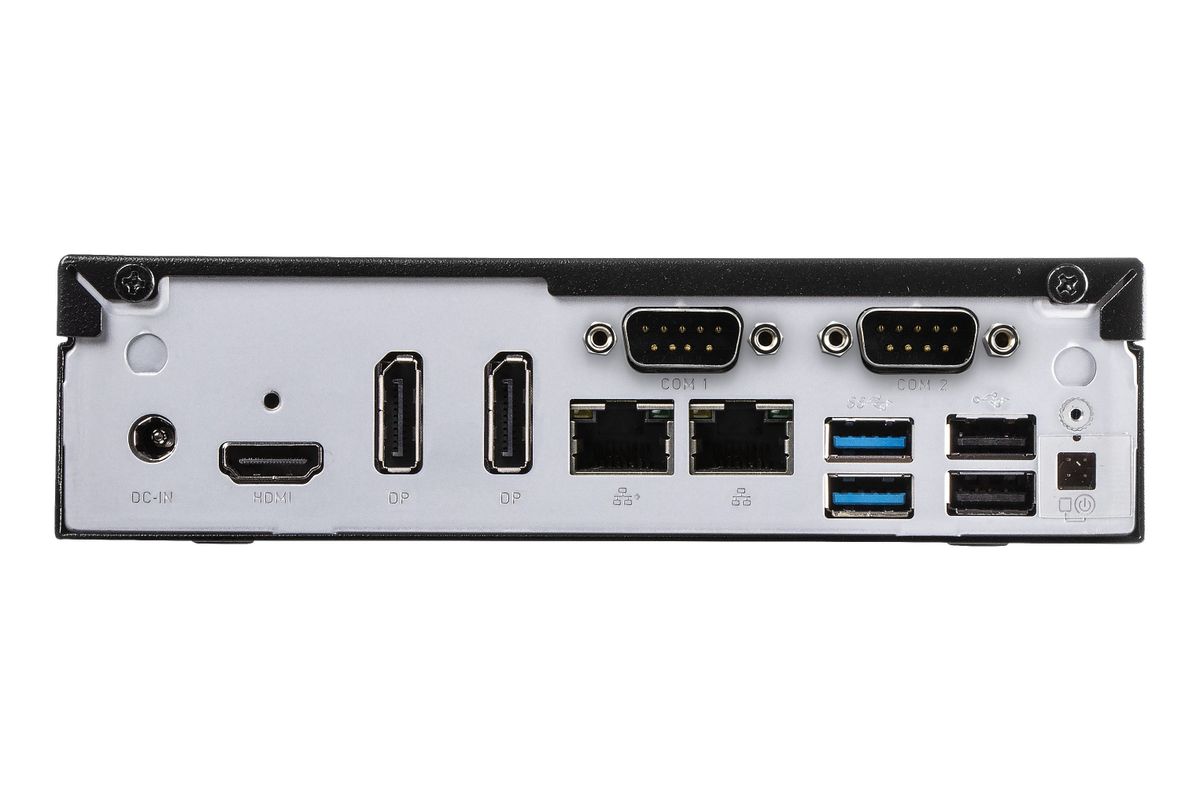

• Display outputs
  1 × HDMI, 2 × DisplayPort
• Maximum simultaneous displays
  Up to 3 (dependent on CPU iGPU)
• HDMI version
  HDMI 2.0
• USB‑C display
  USB‑C may provide DisplayPort Alt Mode depending on CPU
• Graphics
  Integrated CPU graphics (no dedicated GPU included)
• LAN ports
  2 × Ethernet (1 × 1GbE, 1 × 2.5GbE)
• COM ports
  2 × RS‑232 serial COM ports

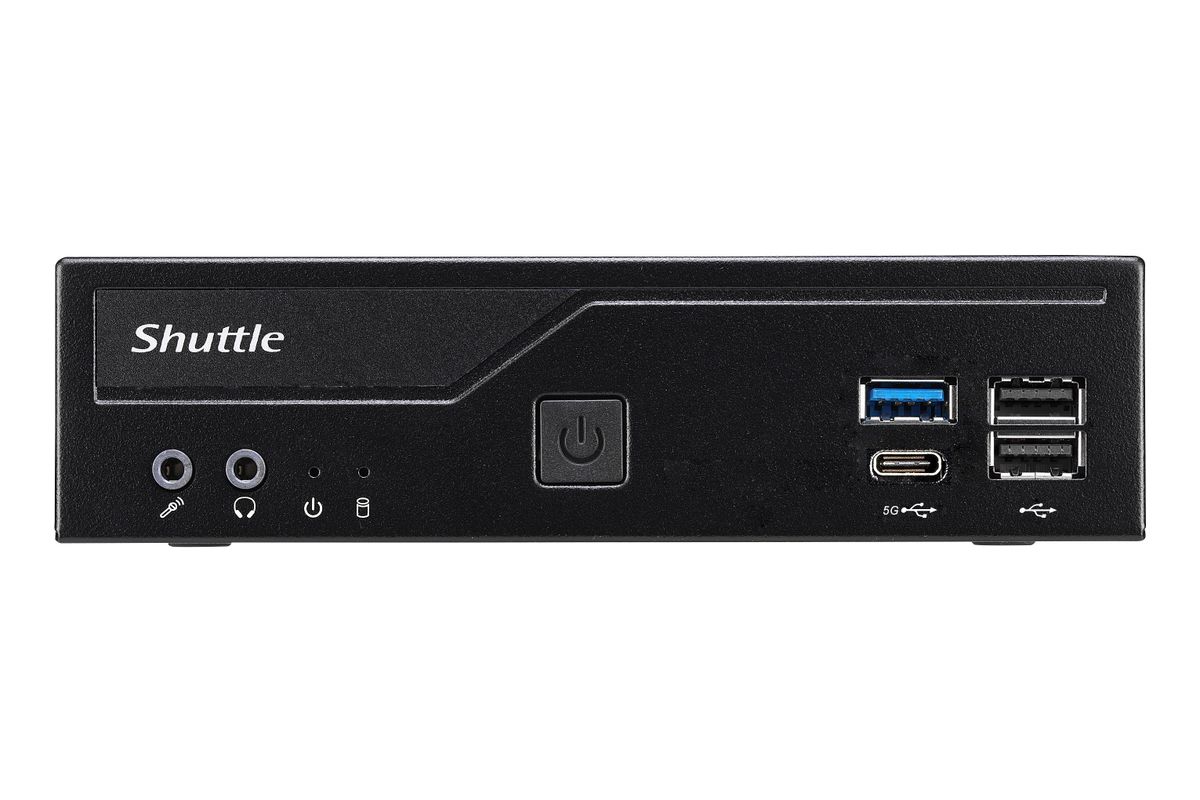

• USB ports total
  8 (1 × USB 3.2 Gen1 Type‑C, 3 × USB 3.2 Gen1 Type‑A, 4 × USB 2.0)
• Power input
  External DC adapter (common configurations: 12 V or 19 V)
• Power supply
  External adapter (specific adapter included depends on retailer/bundle)
• Included items
  DH610V2 chassis, H610 mainboard, CPU cooling assembly, 1× 8GB DDR5 SO‑DIMM, VESA mount hardware
• Excluded items
  CPU, OS, M.2 SSD, 2.5" drive, optional Wi‑Fi/BT module, dedicated GPU
• Intended use
  Business, industrial, digital signage, kiosks, NVR, edge computing, machine vision, office PC
• 24/7 operation
  Designed and approved for continuous 24/7 operation
