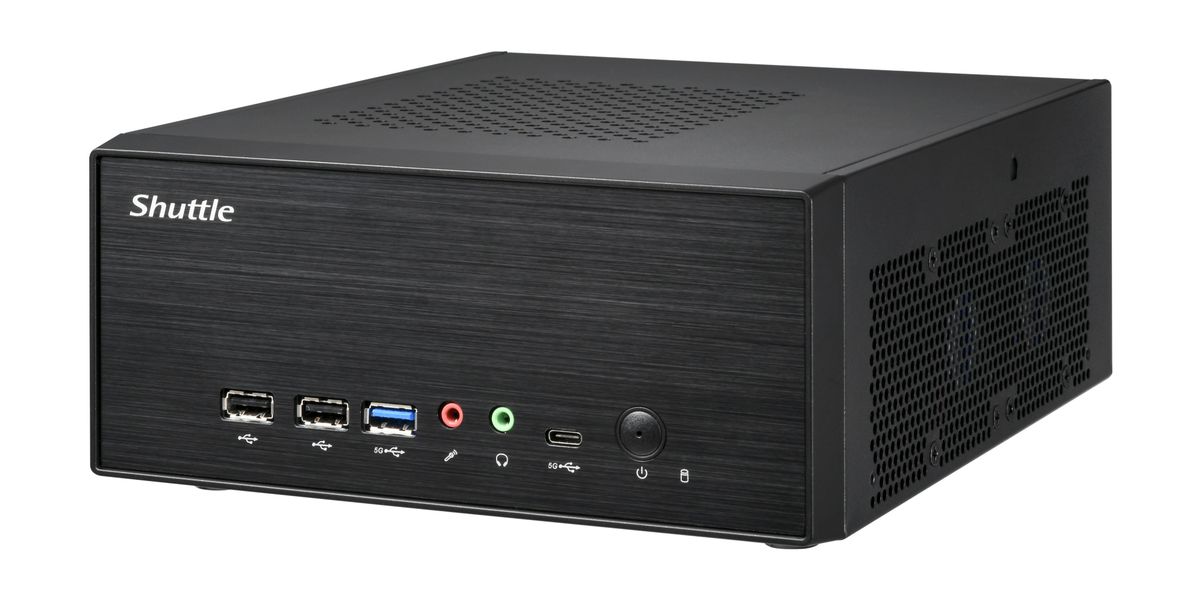

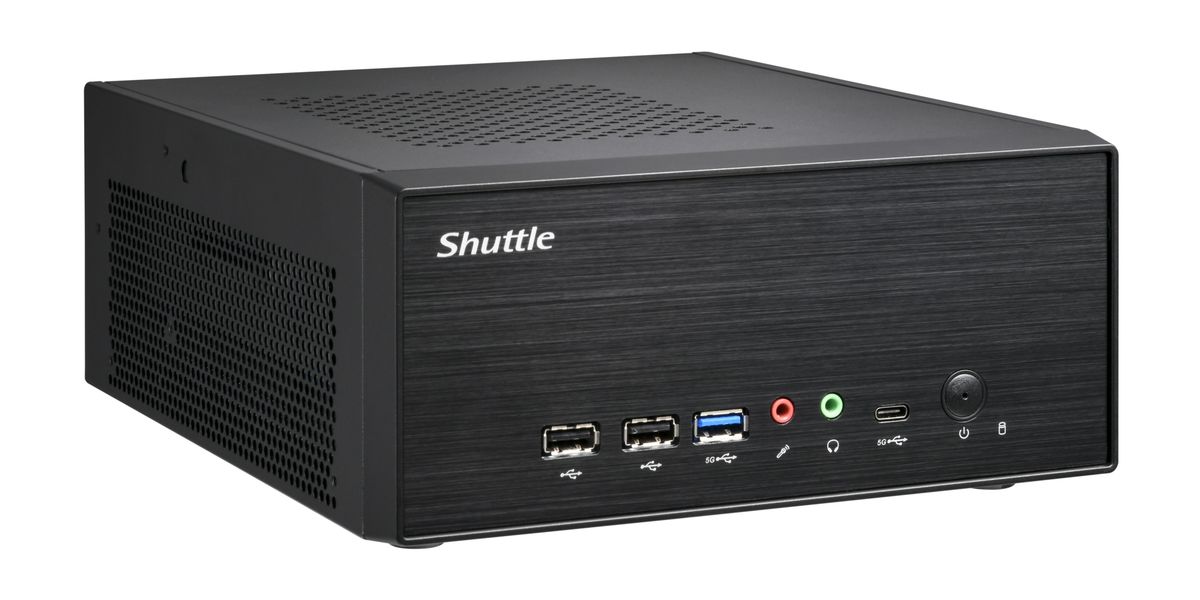

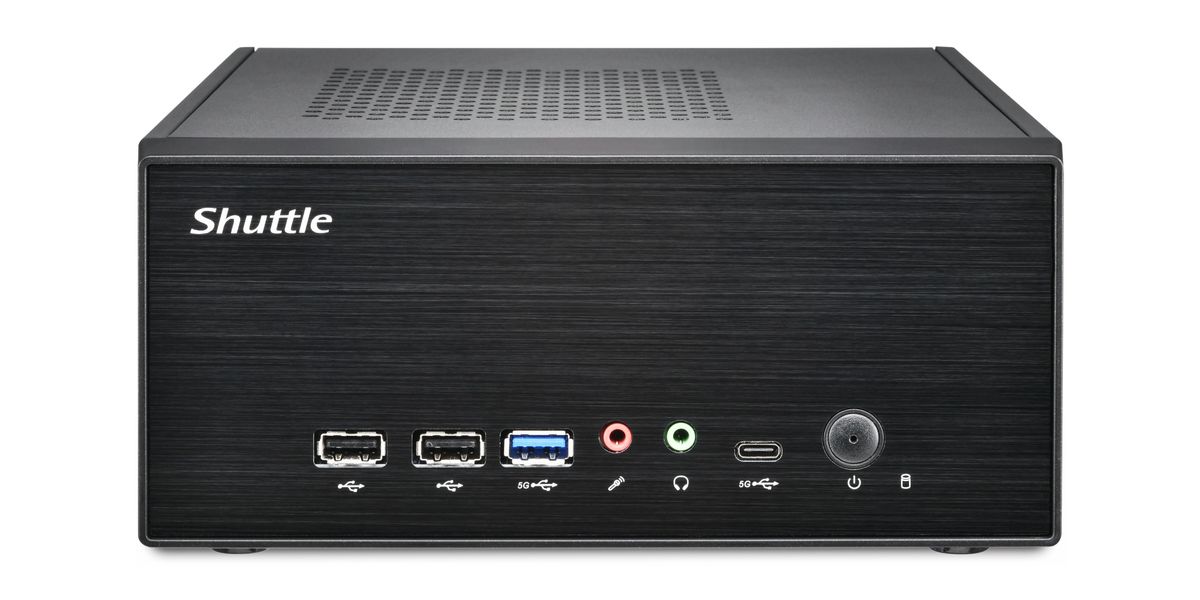

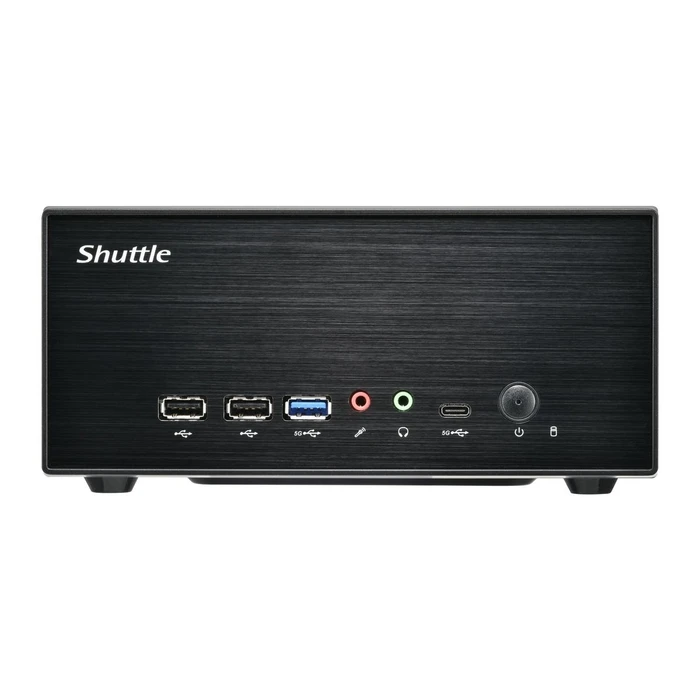

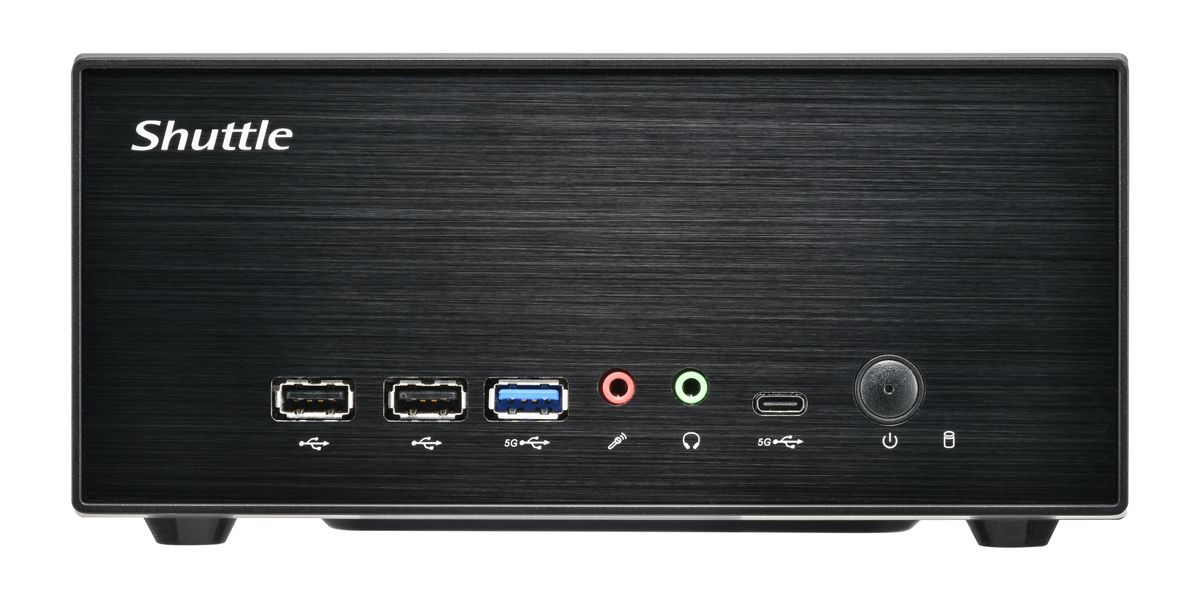

Shuttle Barebone slim XB860G2 SO‑DDR5 Μαύρο

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Shuttle
• Model / MPN
  XB860G2
• SKU
  588373
• EAN / Barcode
  0887993008134
• Product type
  Barebone (requires CPU, RAM, storage, OS)
• Form factor
  XPC slim — ultra‑compact slim desktop
• Chassis color
  Black
• Chassis material
  Steel (robust construction)
• Volume
  Approx. 4.5–5 liters
• Dimensions (L×W×H)
  23.7 cm × 20.0 cm × 9.5 cm
• CPU socket
  LGA1851
• Supported CPUs
  Intel Core Ultra 200 Series (Arrow Lake‑S, Series 2) — Core Ultra 9/7/5 (up to 65W TDP)
• Chipset
  Intel B860 (primary) — (H810 noted in some variants/configs)
• Memory slots
  2 × SO‑DIMM (262‑pin)
• Memory type
  DDR5‑5600 (non‑ECC, unbuffered)
• Maximum memory
  Up to 96 GB (2×48 GB modules)
• M.2 slots
  3 × M.2‑2280 (NVMe / SATA; 1 slot supports PCIe Gen5)
• Drive bays
  1 × 2.5" SATA bay
• PCIe expansion
  1 × PCIe Gen5 x16 (dual‑slot GPU/accelerator support), 1 × PCIe Gen4 x1
• Max GPU size
  205 mm (L) × 120 mm (H) × 45 mm (D)
• Max GPU power (internal)/slot
  75 W
• Integrated graphics
  Intel Xe (integrated in supported CPUs)

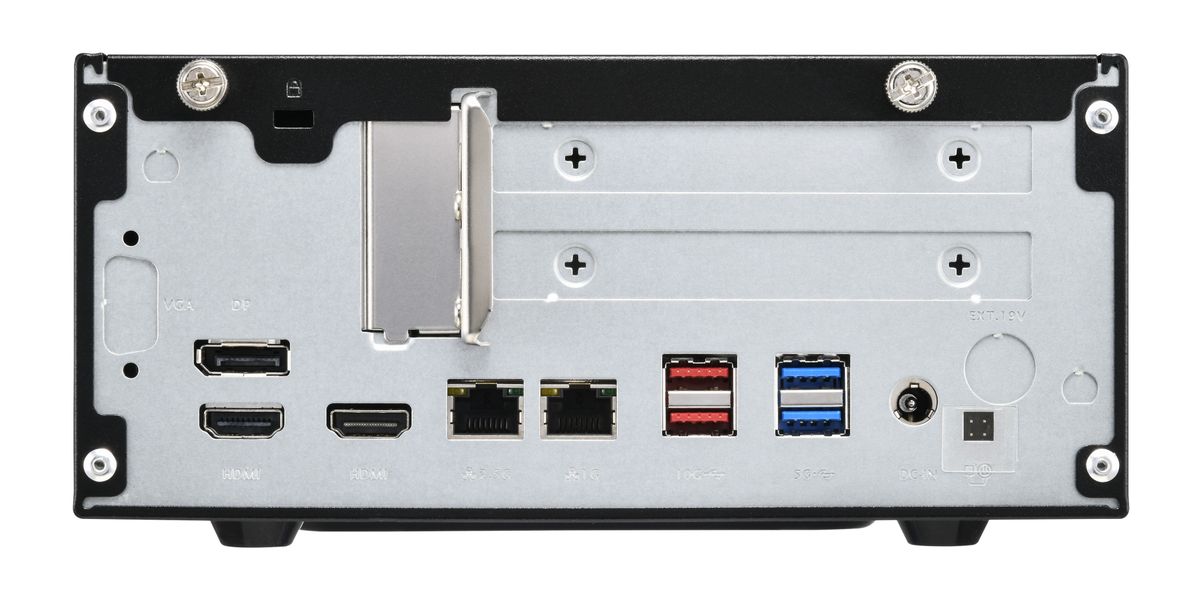

• Display outputs
  HDMI 2.1 (8K capable), DisplayPort 1.4a (and additional HDMI 2.0 on some configs)
• Multi‑display support
  Triple / Quad display (depends on CPU/chipset — B860 supports quad)

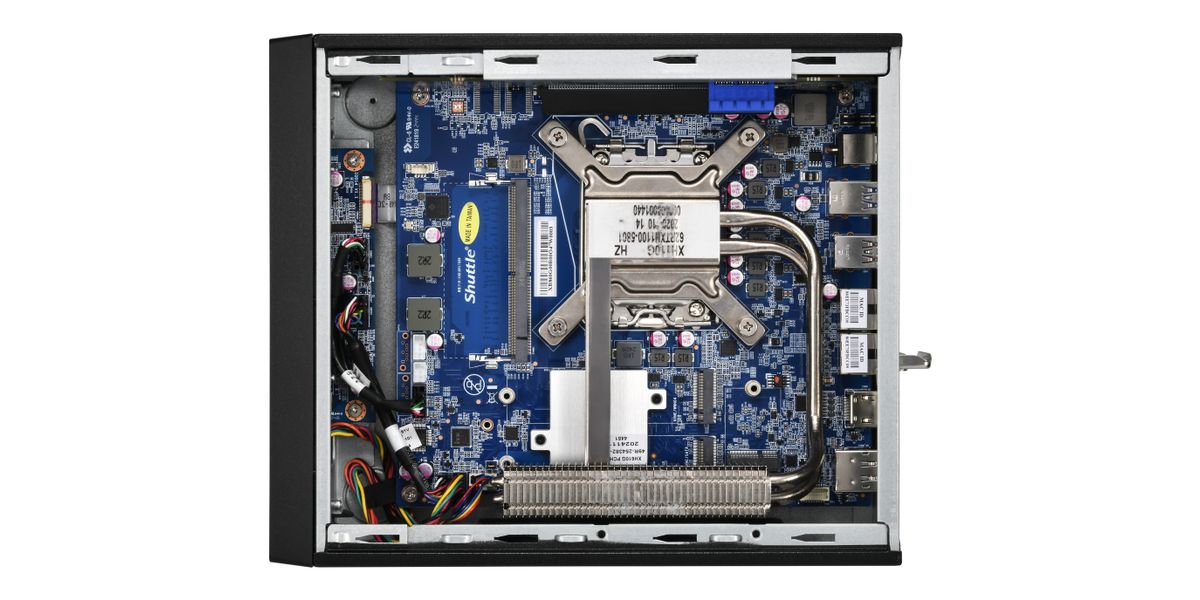

• Cooling
  Advanced heatpipe cooling with two 70 mm fans
• BIOS/UEFI features
  UEFI, hardware monitoring, watchdog, power‑on after power failure, firmware TPM v2.0
• OS support
  Windows 11 (64‑bit), Linux (64‑bit)
• Intended applications
  Graphics workstations, AI/edge computing, video walls (8K), media production, surveillance, POS/POI, industrial control, mid‑range gaming
• Weight (product)
  Approx. 1600 g
• Power design
  Optimized for 65W CPU and additional PCIe card power (exact PSU not fixed/varies by build)
• Ports & connectivity notes
  Multiple high‑speed display outputs, internal expansion for NVMe storage and add‑in cards
• Cooling details
  Heatpipe + dual 70 mm fans for sustained performance
• documentation
  Datasheet and manuals available from Shuttle
