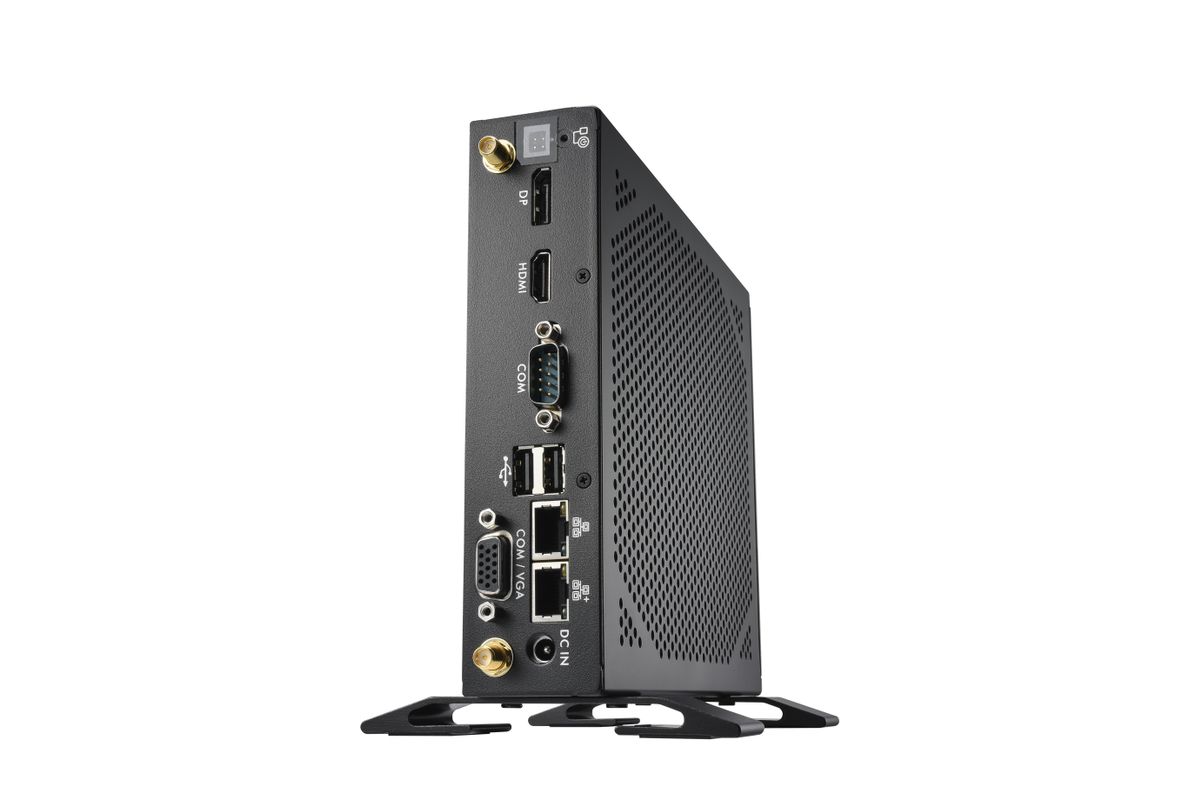

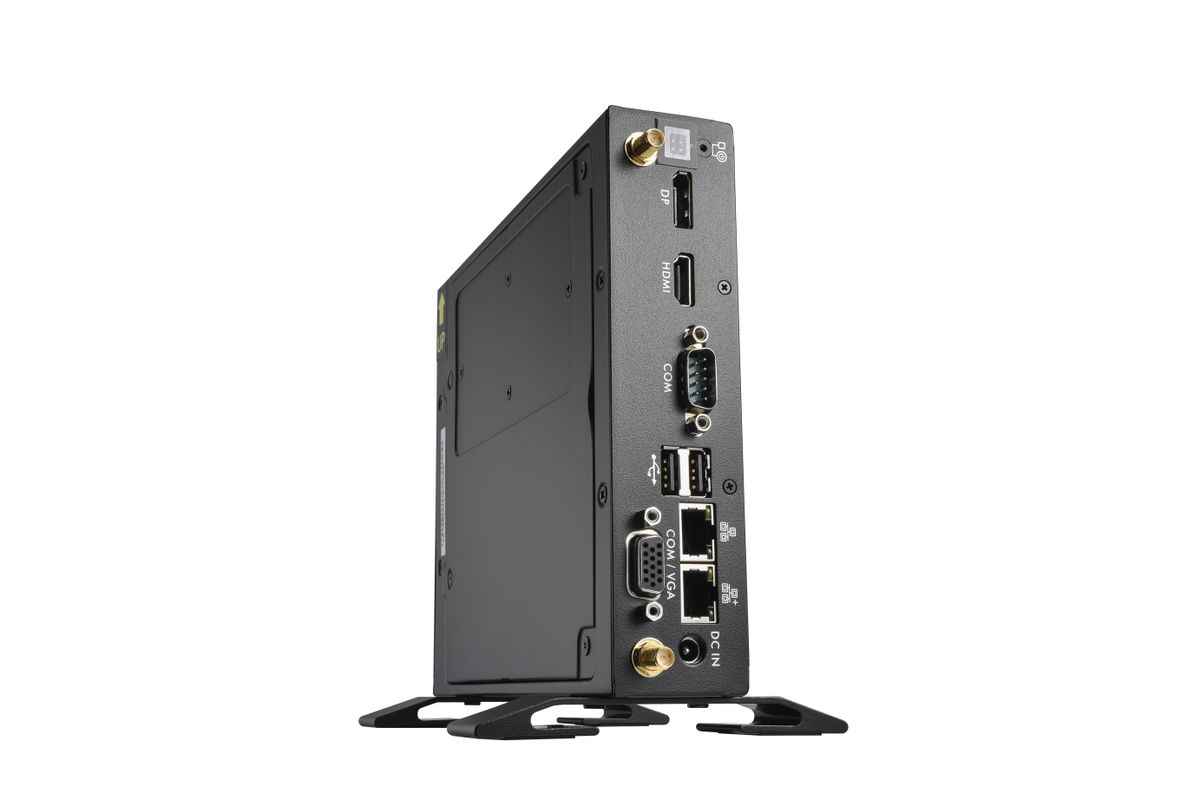

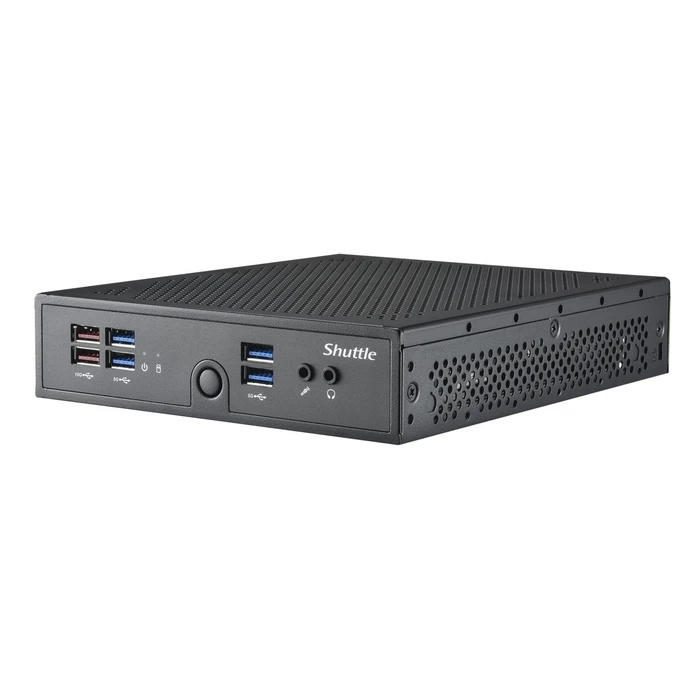

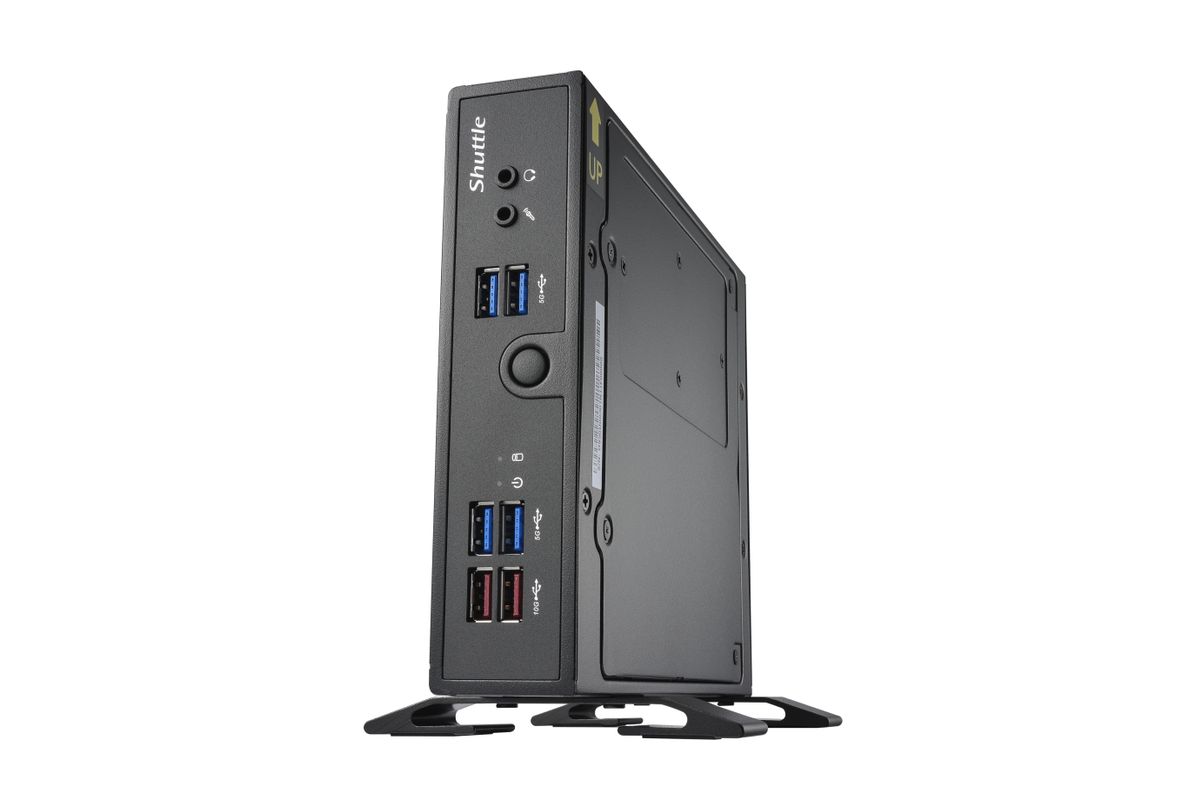

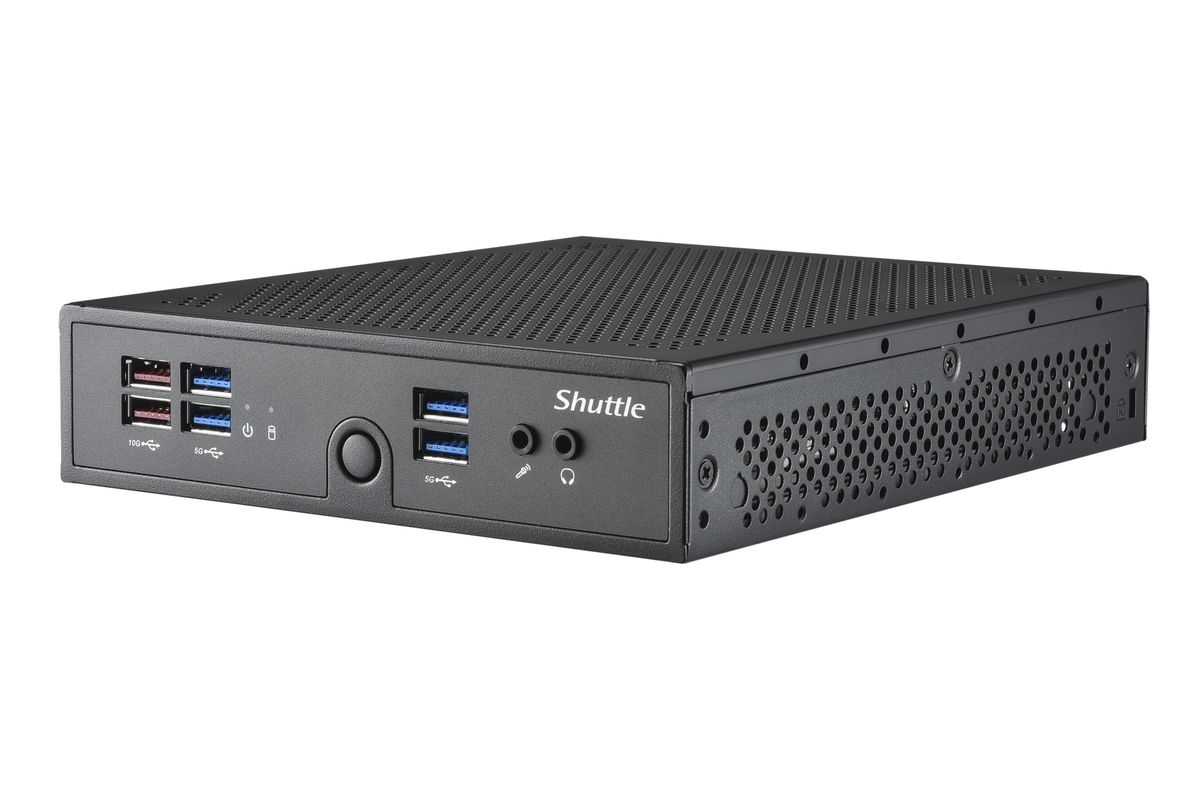

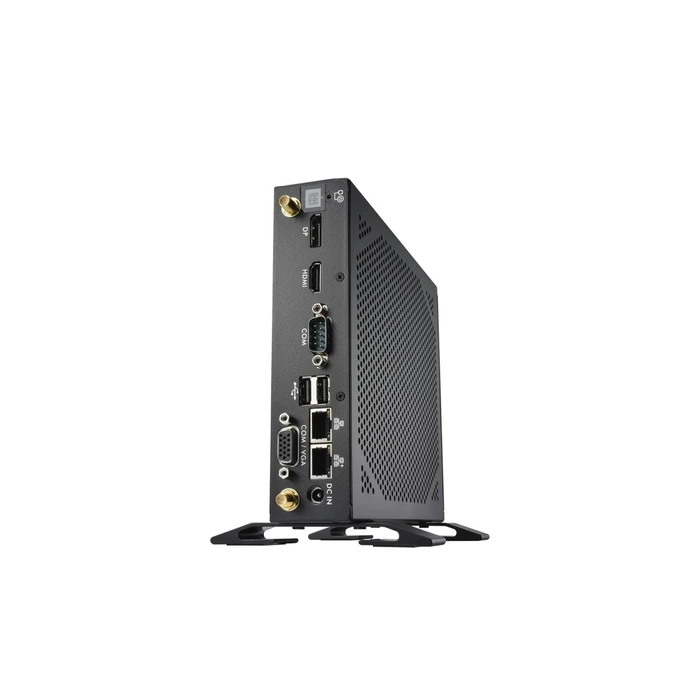

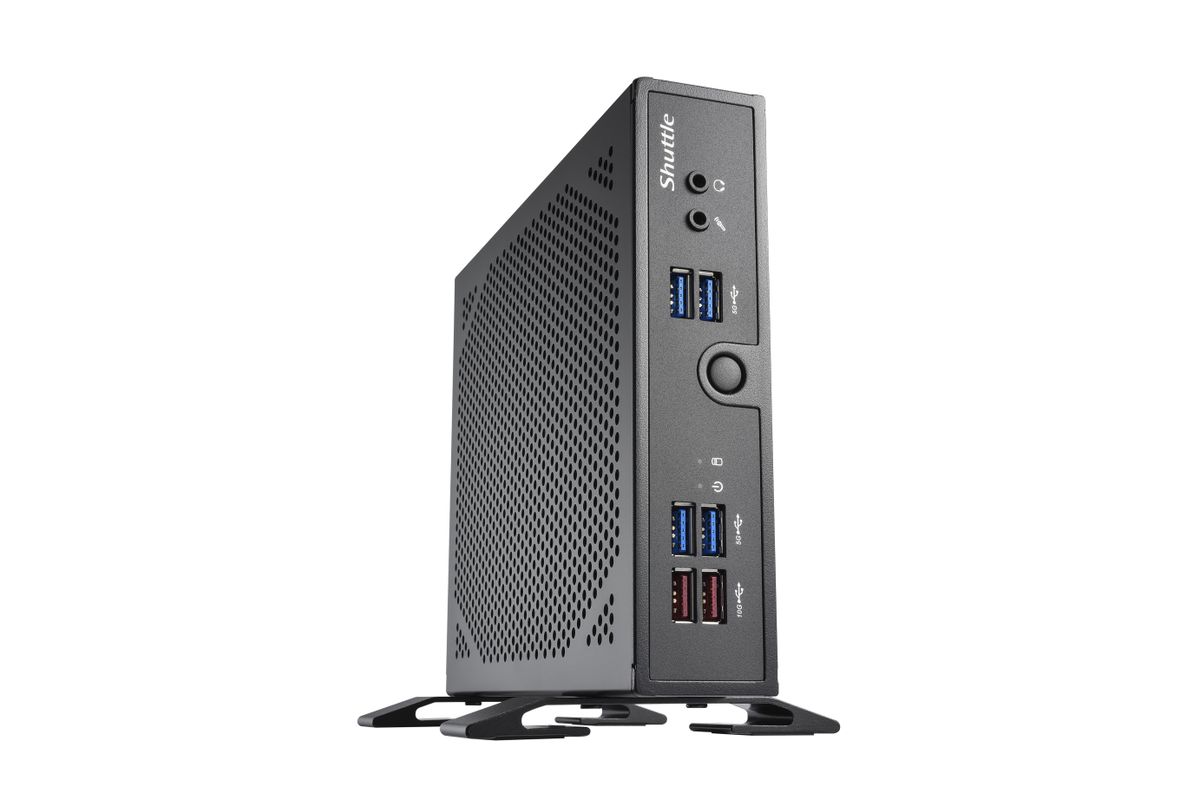

Shuttle Barebone DS50U5 i5-1335U με 8GB DDR5 RAM

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Shuttle
• Product family
  XPC slim
• Model
  DS50U5
• Bundle
  DS50U5_Bundle_8GB (includes 8GB DDR5 RAM)
• SKU
  605766
• MPN
  DS50U5_Bundle_8GB
• EAN
  4046047104550
• Product type
  Fanless slim barebone PC / mini computer
• CPU
  Intel Core i5-1335U (13th Gen, Raptor Lake-U)
• CPU cores / threads
  10 cores (2 P-cores + 8 E-cores), 12 threads
• CPU frequencies
  P-core: 1.3 GHz base, up to 4.6 GHz turbo; E-core: 0.9 GHz base, up to 3.4 GHz turbo
• Cache
  12 MB Intel Smart Cache
• Processor TDP
  Up to 15W
• Integrated GPU
  Intel Iris Xe Graphics
• Included memory
  8GB DDR5 (preinstalled, bundle)
• Memory type
  DDR5 SO-DIMM (1.1V)
• Memory slots
  2 × 262-pin SO-DIMM
• Max memory
  Up to 64GB (2 × 32GB)
• Supported memory speed
  DDR5-5200 (platform dependent; DDR5-4800 listed in some docs)

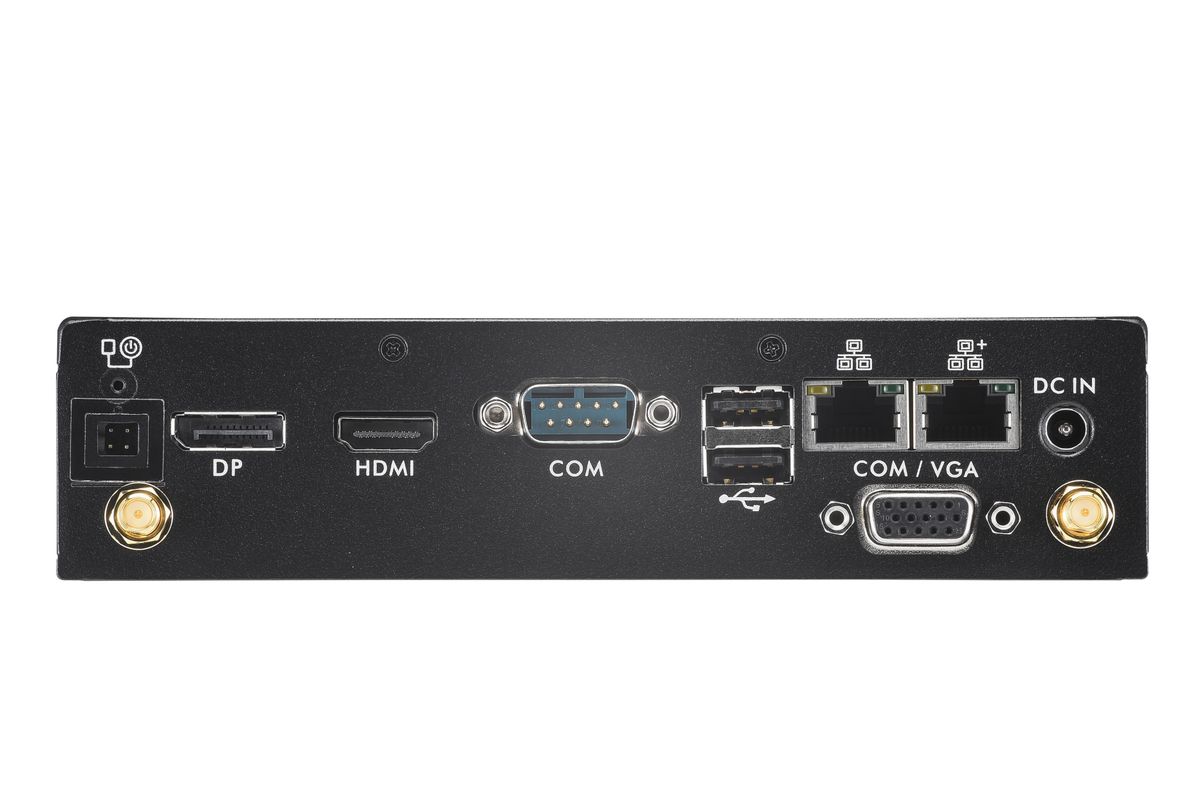

• Display outputs
  HDMI 2.0b, DisplayPort 1.4, VGA (D-Sub) — up to 3 independent displays
• Storage expansion
  1 × M.2 PCIe NVMe (Gen4), 1 × M.2 SATA, 1 × 2.5" SATA bay (supports up to 3 storage devices)
• LAN
  1 × 2.5GbE (Intel I226), 1 × 1GbE (Intel I219)

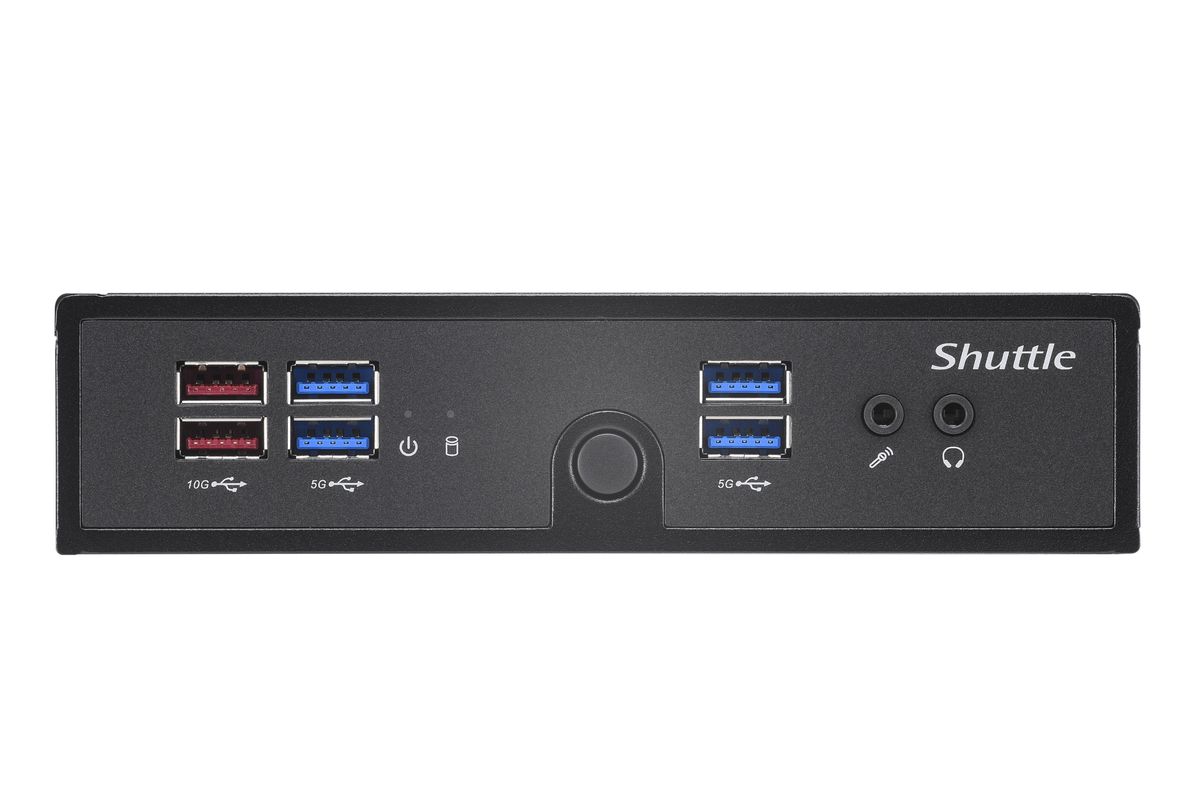

• USB and I/O
  Multiple USB ports (high-speed), audio I/O, serial COM (configurable RS-232/RS-422/RS-485), CMOS header, external power-on header
• Cooling
  Fanless heat-pipe passive cooling (no moving parts)
• Operating system
  Barebone — storage and OS usually not included
• Power supply
  External 90W AC adapter (19V DC)
• Mounting
  VESA mount kit included; vertical stand included
• Chassis material
  Metal compact chassis
• Dimensions (WxDxH)
  165 × 200 × 39.5 mm
• Product volume
  Approx. 1.3 litres
• Net weight
  Approx. 1.6 kg
• Gross (shipping) weight
  Approx. 2.3 kg
• Color
  Business/black finish (confirm with seller for exact finish)
• Use cases
  Office PC, digital signage, kiosks, POS, thin client, industrial control, embedded systems
• Notes
  Barebone system — check included RAM module configuration; storage and OS usually not included
