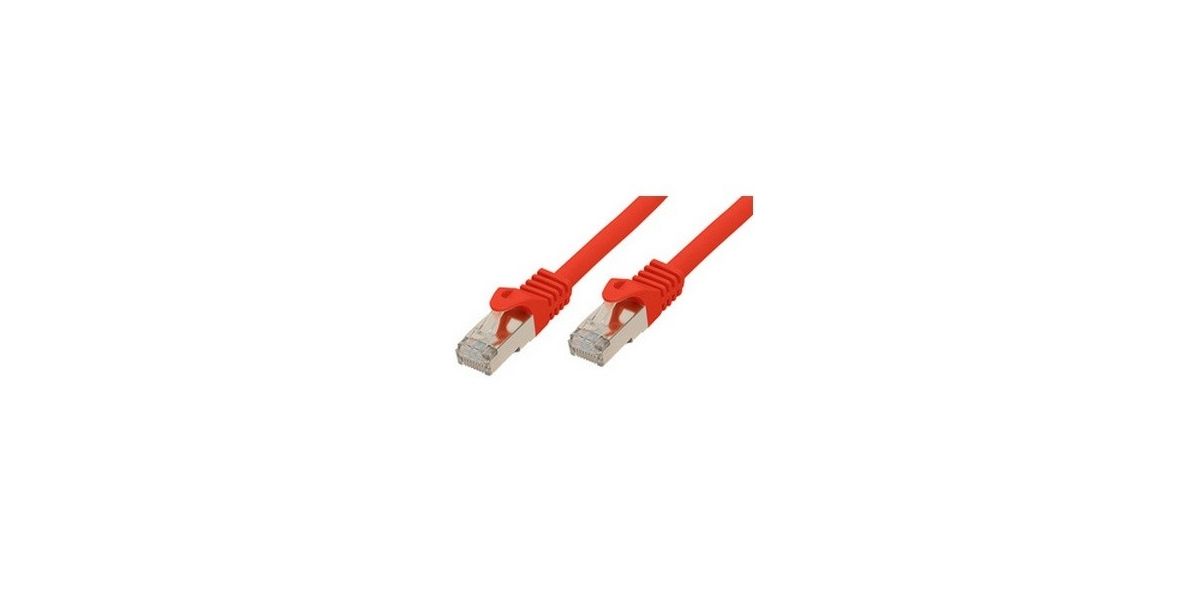

Shiverpeaks RJ45 Patchkabel S/FTP Cat7 LSZH 30m Κόκκινο (BS75530-R)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  shiverpeaks
• Model / MPN
  BS75530-R
• SKU
  581240
• EAN / GTIN
  4017538008718
• Product type
  RJ45 to RJ45 patch cable (male-male)
• Category
  Cat7 (Class F)
• Shielding type
  S/FTP (individual foil per pair + braided overall shield)
• Length
  30 m
• Color
  Red
• Outer jacket
  LSZH (Low Smoke Zero Halogen)
• Outer diameter (O.D.)
  6.2 ± 0.3 mm
• Jacket thickness
  5.0 mm
• Conductor
  Copper stranded (7/0.16 mm per conductor)
• Conductor gauge
  AWG 26
• Pairs
  4 × 2 (4 twisted pairs)
• Insulation
  Foam PE
• Individual shield
  AL-foil per pair
• Overall shield
  CCAM braid (≥40% coverage)
• 360° shield contact
  Yes
• Bandwidth
  Up to 600 MHz
• Data rate
  10GBase-T (10 Gbps)
• Impedance
  100 ± 15 Ω
• NVP (Nominal Velocity of Propagation)
  70%
• Max DC conductor resistance
  ≤145 Ω/km
• Contact resistance
  ≤30 mΩ
• Test voltage
  1000 V DC (1 min) core-to-core & core-to-screen
• Connector type
  RJ45 plugs (male-male)
• Connector plating
  Gold plated (50 μm reported)
• Mating cycles
  ≥750
• Operating temperature
  −20°C to +75°C
• Installation temperature
  0°C to +50°C
• Standards compliance
  ISO/IEC 11801, IEC 60603-7, TIA/EIA-568-B
• RoHS compliant
  Yes
• CE certified
  Yes
• Silicone-free
  Yes
• PoE compatibility
  Supports PoE including IEEE 802.3bt
• Applications
  10G Ethernet, data centers, server rooms, professional networks
