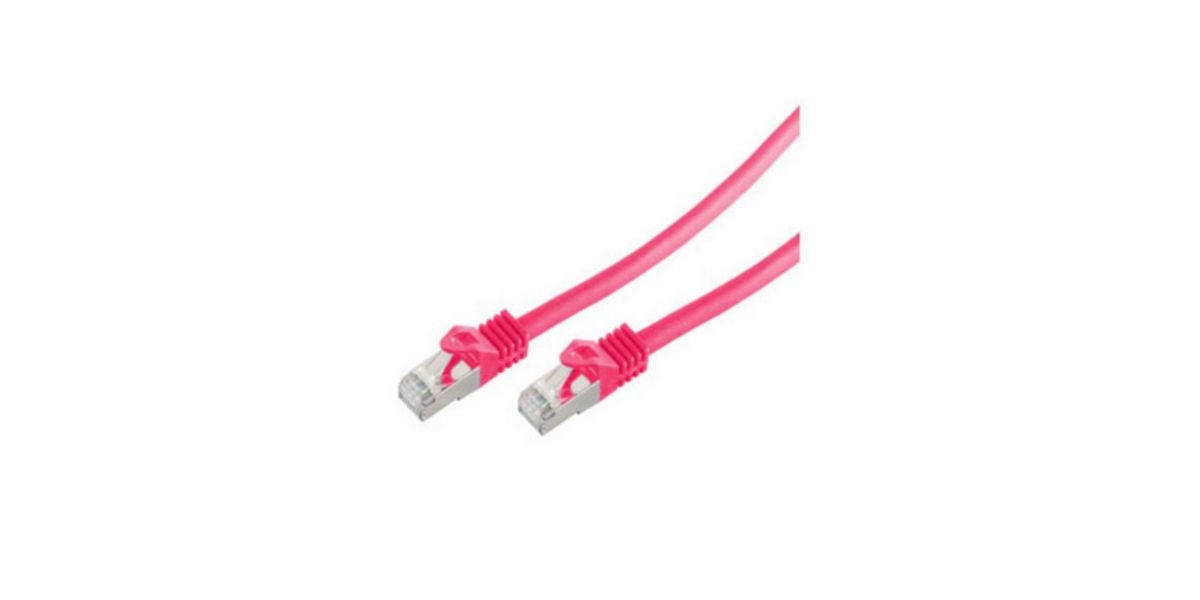

Shiverpeaks RJ45 Patch καλώδιο S/FTP Cat7 LSZH 1,0 m ματζέντα (BS75511-M, SKU 581090)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Shiverpeaks
• Model / MPN
  BS75511-M
• SKU
  581090
• EAN / GTIN
  4017538071248
• Cable Category
  Cat 7
• Shielding Type
  S/FTP (PiMF - pair in metal foil) with overall braid (shielded, foil per pair)
• Jacket Material
  LSZH (Low Smoke Zero Halogen / LSOH)
• Length
  1.0 m
• Color
  Magenta
• Conductor
  Stranded copper, AWG 26/7
• Insulation
  Foamed polyethylene (approx. Ø over insulation ~1.45 mm)
• Bandwidth / Frequency
  Up to 600 MHz (1–600 MHz)
• Max Data Rate
  10 Gbps (10GBase-T)
• Connector Type
  RJ45 (male/male), gold-plated contacts
• Contact Plating
  Gold-plated contacts (reduced contact resistance)
• Wiring / Pinout
  Straight (T568B)
• PoE Compatibility
  Supports PoE and PoE+
• Standards Compliance
  ISO/IEC 11801, EN 50173-1, EIA/TIA 568B
• Cable Design
  4 x 2 shielded twisted pairs (S/FTP), flexible patch cable
• Typical Outer Diameter
  ~6 mm (approximate for Cat7 S/FTP patch cables)
• Plug Style
  Flat plug (narrow/low-profile plug)
• Application
  Gigabit and 10Gigabit Ethernet, switches, routers, patch panels, network cards, multimedia
• RoHS / Safety
  RoHS compliant; jacket meets LSZH flame/halogen standards
