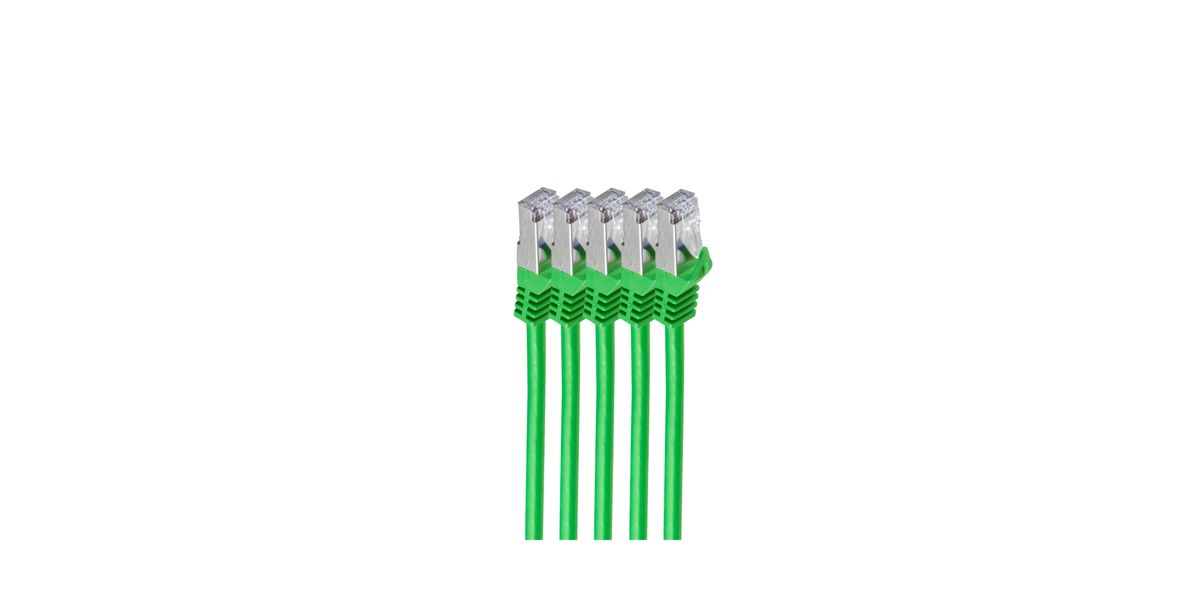

Shiverpeaks RJ45 Patchkabel S/FTP Cat7 VE5, 5m, πράσινο

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Shiverpeaks
• Model / MPN
  BS75515-G-SET5
• SKU
  581585
• EAN
  4017538081728
• Product Type
  RJ45 Ethernet patch cable
• Category
  Cat7 (VE5)
• Length
  5 meters
• Color
  Green
• Shielding
  S/FTP (overall foil + individually shielded pairs) / PIMF
• Connector Type
  RJ45 (8P8C), 1:1 pin assignment
• Contacts
  Gold-plated contacts (typ. gold flash)
• Bandwidth / Frequency
  Up to ~600 MHz (Cat7 typical)
• Rated Application
  10 Gigabit Ethernet (10GBASE-T) and high-bandwidth networking
• Jacket Material
  Halogen-free, flexible (typ. TPE-type / superflex) outer sheath
• Cable Diameter
  Approx. 6.5 mm (typical for Cat7 S/FTP patch cables)
• Impedance
  100 Ω ±15 Ω
• Contact Resistance
  ≤30 mΩ (connector contact)
• Conductor Resistance (approx.)
  ~142 Ω/km (single conductor, typical)
• Loop Resistance (approx.)
  ~284 Ω/km (typical)
• Resistance Unbalance
  ≤2%
• Insulation Resistance
  ≥100 MΩ
• Test Voltage
  1000 V DC (1 min core-to-core and core-to-screen)
• Operating Temperature Range
  -20°C to +75°C
• Mating Cycles
  ≥750 (typical RJ45 spec for similar series)
• Flame / Safety
  IEC 60332-1 (flame retardant), halogen-free (IEC 60754-2), low smoke (IEC 61034)
• Boot / Strain Relief
  Molded anti-kink boot with locking lever protection
• Typical Use Cases
  Rack patching, server rooms, switches, routers, high-speed LAN wiring
• Packaging
  Retail blister or polybag with label (estimated)
• Country of Brand
  Shiverpeaks (brand used by EFB / distribution partners)
