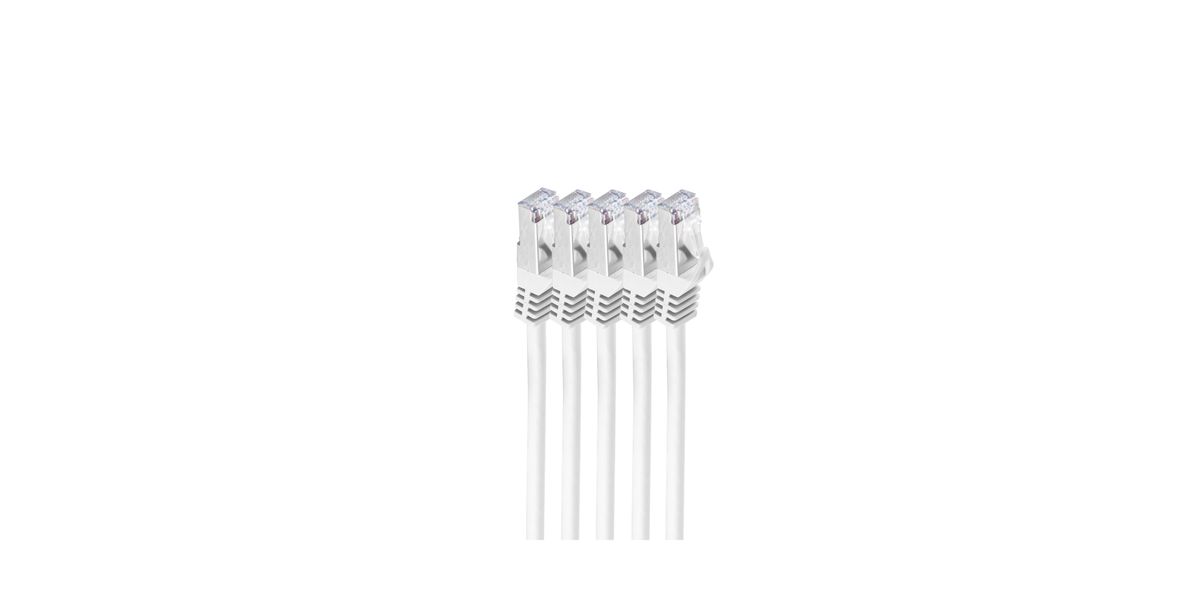

Shiverpeaks RJ45 Patch καλώδιο S/FTP Cat7 VE5 3m λευκό (σετ 5)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Shiverpeaks
• Model / MPN
  BS75513-W-SET5
• SKU
  581580
• EAN
  4017538081520
• Product Type
  RJ45 Patch Cable Set (VE5)
• Cable Category
  Cat7
• Shielding
  S/FTP (overall braid + foil around each pair) / PIMF
• Length per Cable
  3 m
• Color
  White (Weiß)
• Connectors
  RJ45 male to RJ45 male (8P8C), 1:1 pinout (TIA/EIA-568B)
• Contact Plating
  Gold-plated contacts (typical)
• Bandwidth
  Up to 600 MHz (Cat7)
• Supported Speeds
  Up to 10 GBit/s (10GBASE-T), compatible with 1G/100M/10M
• Impedance
  100 Ω ±15 Ω
• Conductor Resistance (DC)
  ≤142 Ω/km (typical for Cat7)
• Loop Resistance
  ≤284 Ω/km (typical)
• Contact Resistance
  ≤30 mΩ (typical)
• Test Voltage
  1000 V DC (1 min, core-to-core and core-to-screen)
• Insulation Resistance
  ≥100 MΩ (typical)
• Velocity of Propagation (NVP)
  ~70–80% (typical for shielded cables)
• Sheath Material
  Halogen-free (LSZH) outer jacket
• Boot / Sleeve
  Molded anti-kink boot, colour-matched (white)
• Locking Lever
  Yes
• Mating Cycles
  ≥750 (typical)
• Bending Radius
  >32.5 mm (minimum)
• Operating Temperature
  -20 °C to +75 °C (typical)
• Packaging
  VE5 = set/pack of 5 cables (retail box / blister depending on vendor)
• Typical Use Cases
  Data centers, server rooms, multimedia installations, high-speed LANs
• Standards / Compliance
  IEC 60603-7-51 (connector compliance), TIA/EIA 568B pinout
• Notes
  Specifications compiled from Shiverpeaks BS755xx series product listings and Cat7 datasheets; some values generalized across the series.
