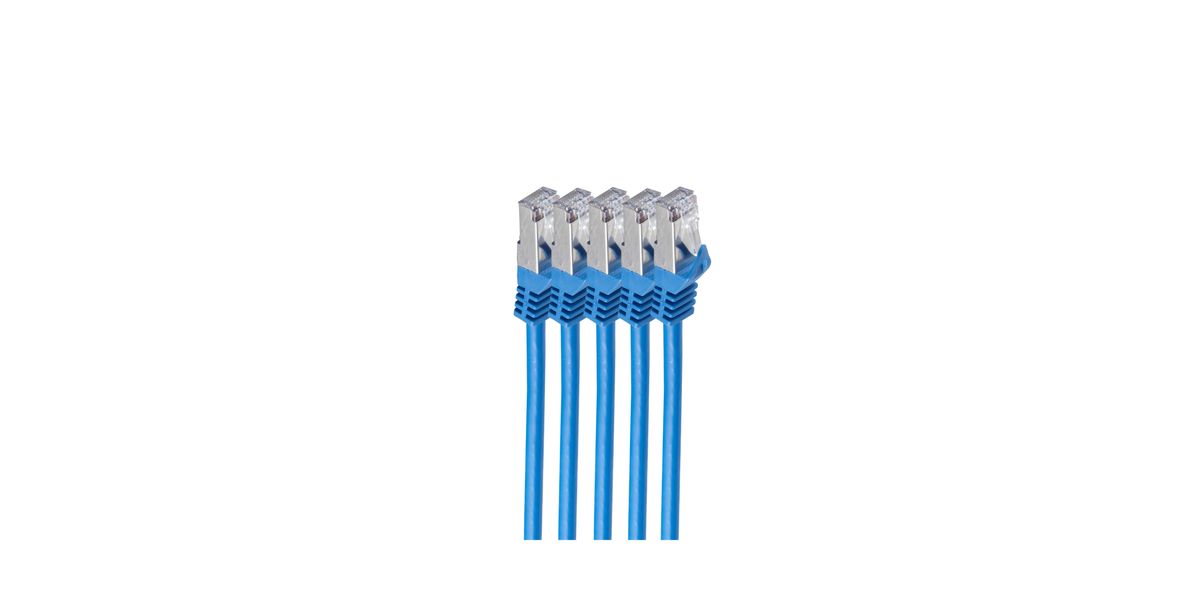

Shiverpeaks καλώδιο δικτύου RJ45 S/FTP, Cat7 VE5, 3μ, μπλε (σετ 5)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Shiverpeaks
• Model / MPN
  BS75513-B-SET5
• SKU
  581575
• EAN
  4017538081834
• Package Quantity
  5 (VE5)
• Length per Cable
  3 m
• Color
  Blue
• Category
  Cat7 (Class F)
• Shielding
  S/FTP (Foil per pair + overall braid)
• Bandwidth
  600 MHz
• Max Data Rate
  10 Gbps
• Connector Type
  RJ45 (8P8C) male to RJ45 (8P8C) male
• Wiring
  1:1 straight-through (T568B)
• Conductor Material
  Copper (Cu)
• Typical Conductor AWG
  24-26 AWG (strand/stranded type typical for patch cables)
• Jacket Material
  LSZH / Halogen-free (specified as halogen-free)
• Contact Plating
  Gold-plated contacts
• Braid Coverage
  ~85% tinned copper braid (typical for S/FTP)
• Insulation
  HDPE or similar for pair insulation
• Impedance
  100 Ω ± tolerance
• DC Resistance
  ≤9.5 Ω/100 m (typical spec)
• Resistance Unbalance
  ≤2%
• Delay Skew
  ≤25 ns/100 m
• Nominal Velocity of Propagation (NVP)
  ~70%
• Operating Temp Range
  -20°C to +75°C
• Test Voltage
  1000 V DC (core-to-core and core-to-screen, typical test)
• Mating Cycles
  ≥750
• Bending Radius
  >32.5 mm (min.)
• PoE Support
  Yes (suitable for PoE incl. high-power variants)
• Certification / Compliance
  RoHS, IEC component standards (typical for Cat7 patch cords)
• Pack Type
  Retail set / cardboard box or blister (5 cables)
• Intended Use
  Structured cabling, data centers, offices, gaming, streaming, interference-heavy environments
