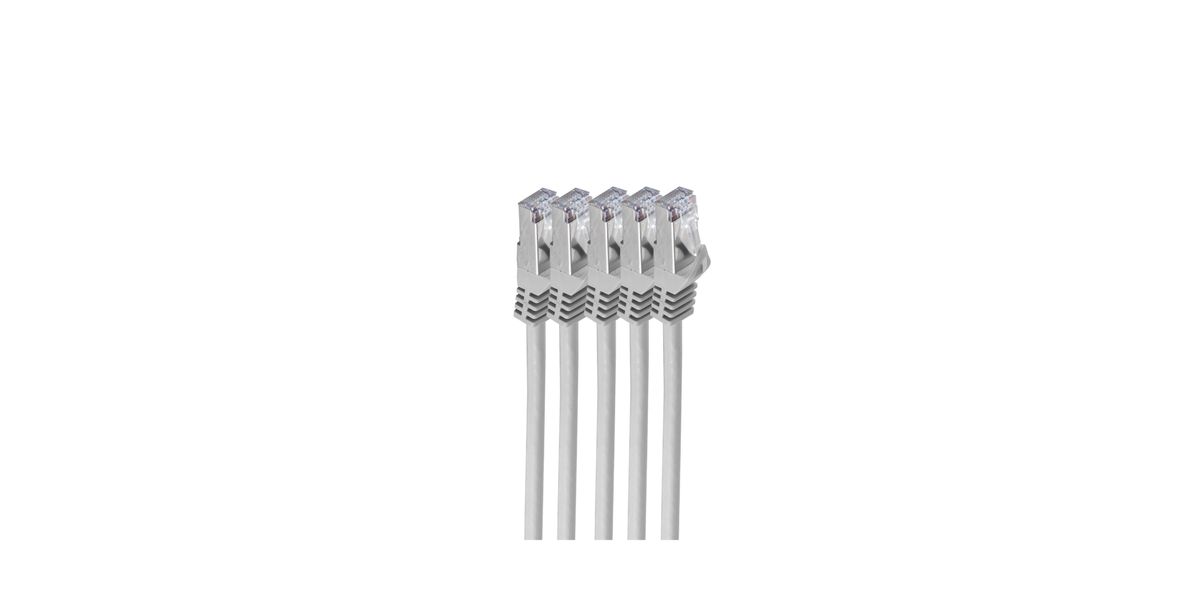

Shiverpeaks RJ45 Patch καλώδιο S/FTP Cat7 VE5 1,5 m (SET5)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Shiverpeaks
• Model / MPN
  BS75511-1.5-SET5
• SKU
  581562
• EAN
  4017538081346
• Product Type
  RJ45 Ethernet Patch Cable (Patchkabel)
• Category
  Cat7 (Class F) VE5
• Shielding
  S/FTP (Overall foil + individually braided pairs)
• Connector Type
  RJ45 (8P8C) shielded plugs
• Wiring Standard
  TIA/EIA-568B
• Length
  1.5 m
• Conductor
  23 AWG (solid or stranded copper depending on patch construction)
• Bandwidth
  Up to ~500–600 MHz (Cat7 VE5 class)
• Supported Ethernet
  10GBASE-T (10 Gigabit Ethernet)
• PoE Support
  Yes (including IEEE 802.3bt PoE++)
• Backward Compatibility
  Cat6A / Cat6 / Cat5e
• Jacket Material
  Likely LSZH (halogen-free) or PVC depending on variant
• Color
  Variant-dependent (common colours: white, blue); specific SKU unspecified
• Cable Diameter
  Typical for Cat7 S/FTP ~6-8 mm
• Characteristic Impedance
  100 Ω (1–500 MHz with standard tolerances)
• DC Resistance
  ≤9.5 Ω/100 m (max, typical Cat7 spec)
• Resistance Unbalance
  ≤2%
• Capacitance Unbalance to Earth
  ≤1600 pF/km
• Delay Skew
  ≤25 ns/100 m
• Nominal VOP
  ~70%
• Test Voltage
  1000 V DC (conductor-conductor, 1 min)
• Operating Temperature
  -20°C to +75°C (typical)
• Mating Cycles
  ≥750 (connector durability, related models)
• Bending Radius
  >32.5 mm (typical)
• Contact Resistance
  ~30 mΩ (related component spec)
• Package
  Likely retail blister or boxed; MPN suggests SET5 (pack of 5 cables) for this SKU
• Typical Use Cases
  Data centers, structured cabling, office networks, PoE devices, EMI-prone environments
• Compliance / Certification
  IEC / EIA-TIA standards; component certification reported for related models
