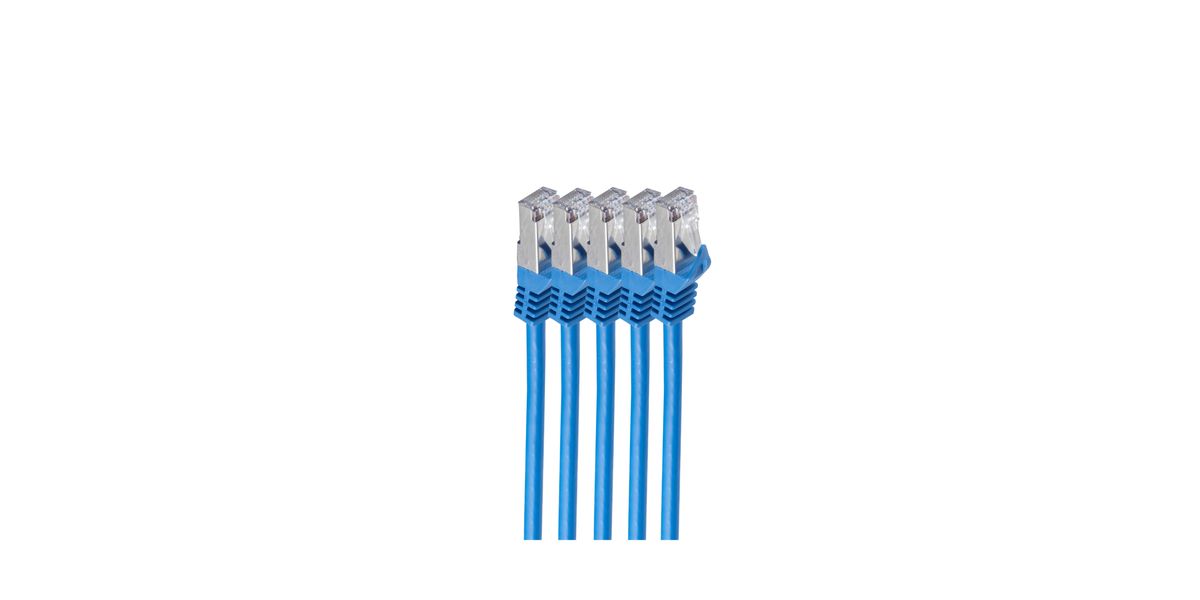

Καλώδιο Patch RJ45 Shiverpeaks S/FTP Cat7 VE5 0,5m Μπλε (SKU: 581486, MPN: BS75511-0.5B-SET5)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Shiverpeaks
• Model / MPN
  BS75511-0.5B-SET5
• SKU
  581486
• EAN
  4017538081292
• Cable Category
  Cat7 (Class F)
• Cable Type
  S/FTP (Shielded Foil Twisted Pair / Pairs in Metal Foil)
• Length
  0.5 m
• Color
  Blue (VE5)
• Connector Type
  RJ45 8(8) on both ends, straight-through (1:1)
• Conductor
  23 AWG solid copper
• Impedance
  100 Ω ±15
• Frequency Range
  Up to 600 MHz
• Bandwidth
  ~500 MHz (meets/ exceeds Cat7/Class F requirements)
• Shielding
  Individually shielded pairs + overall braided screen (S/FTP)
• Contact Plating
  Gold-plated contacts (50 µ")
• Bending Radius
  >32.5 mm
• Mating Cycles
  ≥750
• Operating Temperature Range
  -20°C to +75°C
• PoE Compatibility
  Supports PoE up to IEEE 802.3bt (PoE++ Type 4)
• Standards & Certifications
  IEC 60603-7-51, IEC/ISO 11801 (Class F), TIA/EIA 568B
• Test Voltage
  1000 V DC (1 min) core/core and core/screen
• Contact Resistance
  ≈30 mΩ
• Conductor Resistance DC
  ≈142 Ω/km
• Loop Resistance
  ≈284 Ω/km
• Insulation Resistance
  ≈100 MΩ
• Resistance Unbalance
  ≤2%
• Application
  10GBase-T, Gigabit Ethernet, high-density switches, professional networking
• Compatibility
  Backwards compatible with Cat5, Cat5e, Cat6, Cat6a
• Package Type
  Retail patch cable packaging (individual/retail blister or bag) (set indicated by MPN)
