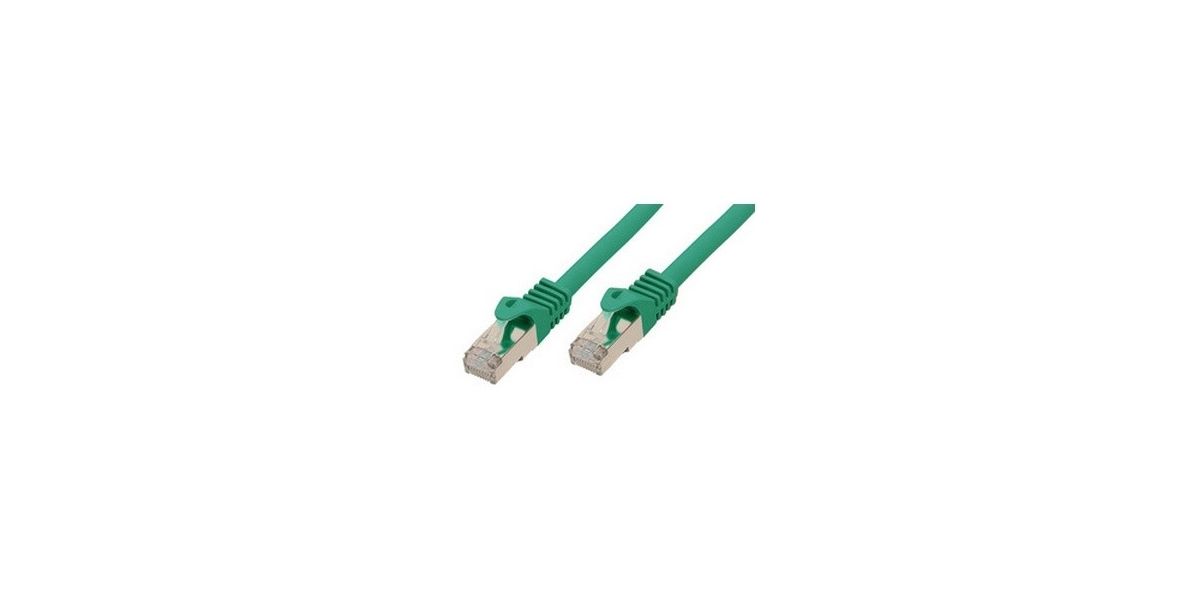

Shiverpeaks RJ45 Patch καλώδιο S/FTP Cat7 LSZH, 7,5 m, Πράσινο (BS75517-G, SKU 581179, EAN 4017538003133)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Shiverpeaks
• Model / MPN
  BS75517-G
• SKU
  581179
• EAN / Barcode
  4017538003133
• Product Type
  RJ45 Ethernet patch cable (Patchkabel)
• Category / Class
  Category 7 (Cat7, Class F)
• Length
  7.5 m
• Color
  Green (Grün)
• Shielding
  S/FTP (Pair-in-Metal-Foil per pair + overall braided shield)
• Conductor
  Pure bare copper, stranded (approx. 26 AWG typical)
• Connectors
  RJ45 (Male) to RJ45 (Male), 8P8C, 1:1 wiring (T568B)
• Contact Plating
  Gold-plated contacts (typ. 50 µ")
• Jacket Material
  LSZH (Low Smoke Zero Halogen)
• Outer Diameter
  ~6.2 mm (typical)
• Bandwidth / Frequency
  Up to 600 MHz (tested to ~600 MHz)
• Data Rate
  Up to 10 Gbps (10GBase-T)
• Impedance
  100 Ω
• DC Resistance
  Typical conductor resistance per spec (manufacturer typical values)
• Velocity of Propagation (NVP)
  ~70% (typical)
• Delay Skew
  ≤25–45 ns/100 m (typical)
• Operating Temperature
  −20°C to +75°C
• Electrical Test Voltage
  1,000 V DC (core/core and core/shield test, 1 min)
• Standards & Compliance
  ISO/IEC Cat7 component performance, RoHS compliant
• Applications
  Indoor networking, patch panels, switches, routers, network cards, PoE support
• Country of Manufacture
  Typical for line: China (manufacturer listings)
• Packaging
  Retail blister / folded cable with printed length on boot (retailer packaging varies)
