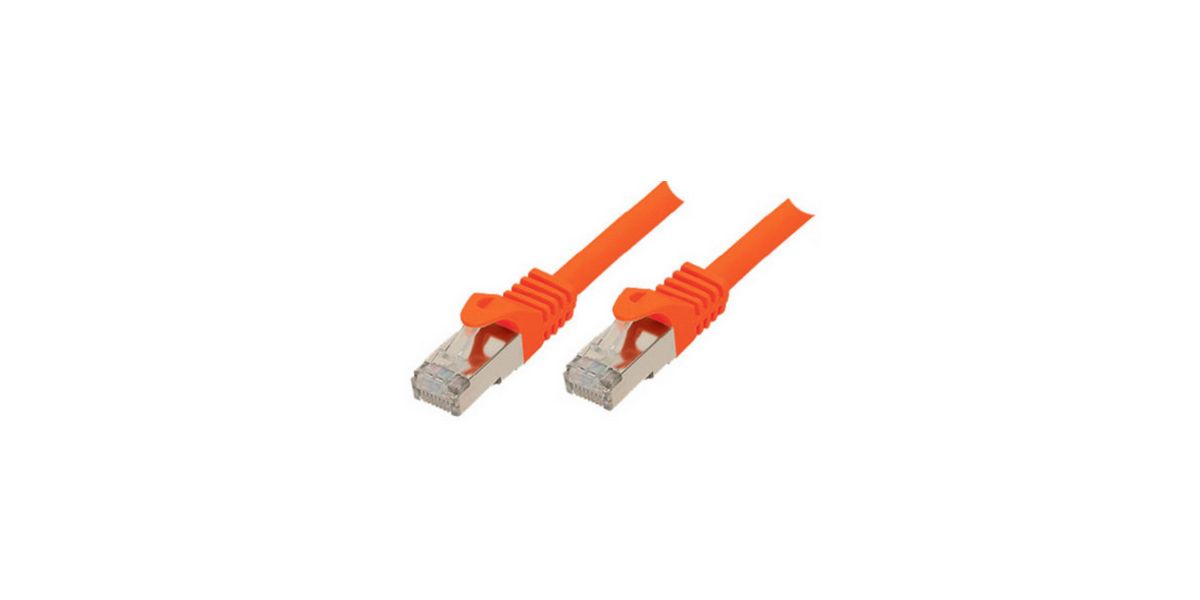

Shiverpeaks RJ45 Patchkabel S/FTP Cat7 LSZH 50m πορτοκαλί

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Shiverpeaks
• Model / MPN
  BS75550-O
• SKU
  581251
• EAN
  4017538075857
• Product Type
  RJ45 Patch Cable / Patchkabel
• Category
  CAT7 S/FTP (PiMF)
• Length
  50 m
• Color
  Orange
• Jacket Material
  LSZH (Low Smoke Zero Halogen)
• Shielding
  S/FTP (overall braid + foil per twisted pair)
• Conductor
  Stranded pure copper, AWG26 (26/7)
• Pairs
  4 pairs (8 cores)
• Connector Type
  RJ45 8P8C - plug to plug (moulded boots)
• Connector Plating
  Gold-plated contacts (typ. 50 µ")
• Bandwidth
  Cable up to 600 MHz (assembled patch cord limited to ~500 MHz)
• Data Rate
  Up to 10 Gbit/s (10GBASE-T)
• Impedance
  100 Ω ± tolerance
• Bending Radius
  Recommended >32 mm
• Mating Cycles
  ≥750 (connector spec)
• Contact Resistance
  ≤30 mΩ
• Test Voltage
  1000 V DC core-to-core/core-to-screen (1 min)
• Operating Temp Range
  ≈ -20 °C to +70 °C
• Outer Diameter
  ≈ 6 mm ±0.2 mm
• PoE Support
  Yes (PoE / PoE+ compatible)
• Compliance
  Backward compatible with Cat6A/Cat6/Cat5e; IEC 60603-7 connector spec
• Packaging
  Single coil/box, typically with length marking on jacket
• Intended Use
  High-speed networks, gaming, streaming, patch panels, switches, routers
• Typical Applications
  10/100/1000/2.5G/5G/10G Ethernet, ATM, LAN
