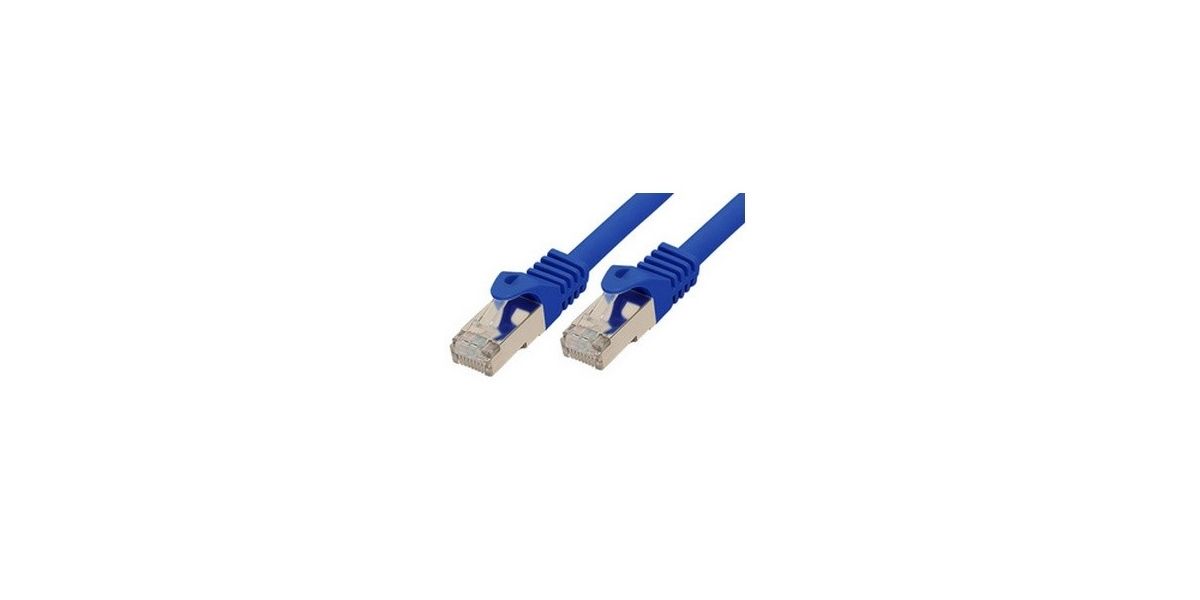

Shiverpeaks RJ45 Patch καλώδιο S/FTP Cat7 LSZH 5,0m μπλε

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Shiverpeaks
• Model
  BS75515-B
• SKU
  581148
• EAN
  4017538006271
• Cable Type
  Cat7 S/FTP (PiMF)
• Length
  5.0 m
• Color
  Blue
• Jacket Material
  LSZH (Low Smoke Zero Halogen)
• Shielding
  S/FTP (foil per pair + overall braid)
• Connector Type
  RJ45 (8P8C), gold-plated contacts
• Conductor
  AWG 23 solid copper (typical for Cat7 patch cords)
• Characteristic Impedance
  100 Ω
• Bandwidth
  ~600 MHz
• Data Rate
  Up to 10 Gbps (10GBASE-T over 100 m)
• Standards/Compliance
  ISO/IEC 11801, TIA/EIA 568 family; IEC 60332-1 (flame), IEC 60754-2 (halogen), IEC 61034 (smoke)
• PoE Support
  Yes (compatible with IEEE 802.3bt PoE++ specifications)
• Outer Diameter
  ~6.0–7.5 mm (typical)
• Temperature Range
  -20 °C to +70 °C (operating)
• Test Voltage
  1 000 V DC (core/core and core/screen, typical test)
• Packaging
  Retail single-cable blister or polybag (patch cable packaging)
• Connector Plating
  Gold plated (~50 µ")
• Mating Cycles
  ≥750 (typical for pre-terminated RJ45)
• NVP (Nominal Velocity of Propagation)
  ~70%
