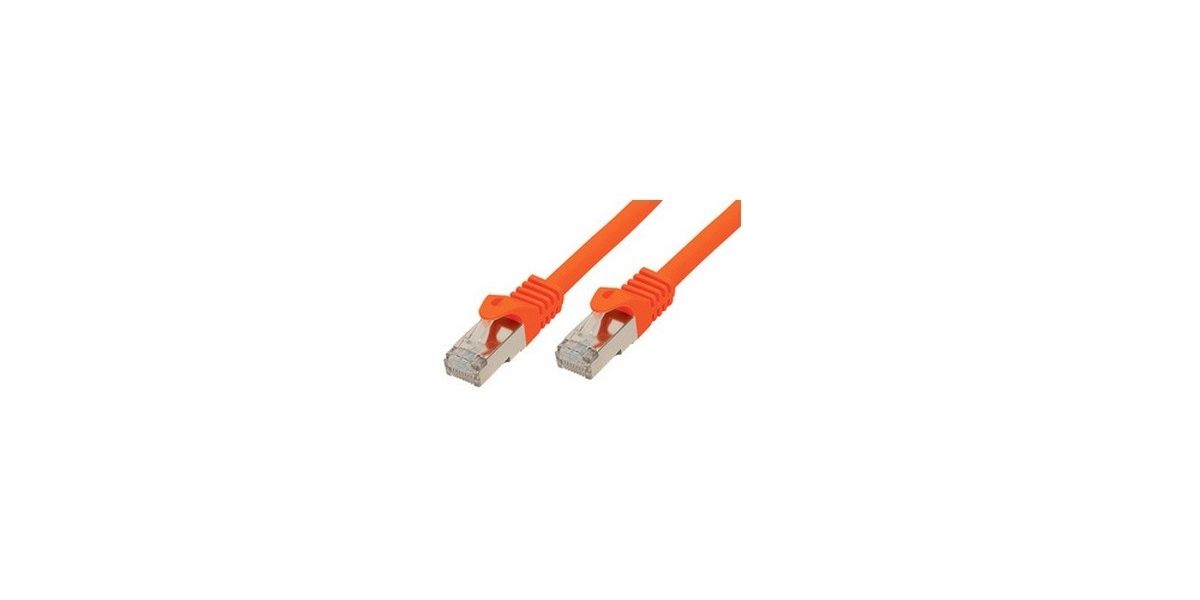

Shiverpeaks RJ45 Patch καλώδιο S/FTP Cat7 LSZH 5,0 m πορτοκαλί (SKU 581145, MPN BS75515-O)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  shiverpeaks
• Model / MPN
  BS75515-O
• SKU
  581145
• EAN / GTIN
  4017538051998
• Cable Category
  Cat7 (S/FTP, PiMF)
• Length
  5.0 m
• Color
  Orange
• Shielding Type
  S/FTP (overall braided screen + foil per pair)
• Connector Type
  RJ45 (8P8C) on both ends
• Conductor
  Stranded pure copper (CU)
• Typical Conductor AWG
  26 AWG (stranded)
• Bandwidth
  Up to 600 MHz (raw cable), connectors rated to ~500 MHz
• Data Rate Support
  Up to 10 Gbps (10GBASE-T)
• Jacket Material
  LSZH (Low Smoke Zero Halogen)
• Cable Diameter
  Approximately 6.0 mm
• Impedance
  100 Ω (nominal)
• Propagation Velocity
  ~70% (nominal)
• Delay Skew
  ≤ 25 ns/100 m
• Test Voltage
  1000 VDC conductor-to-conductor (1 min)
• Operating Voltage
  ≤ 80 V
• DC Resistance
  ≤ 9.5 Ω/100 m
• Capacitance Unbalance
  ≤ 1600 pF/km
• Resistance Unbalance
  ≤ 2%
• Temperature Range (typical)
  Operating: -20°C to +60°C (manufacturer typical ranges)
• PoE Support
  Yes (PoE / PoE+; likely compatible with higher PoE standards)
• Standards Compliance
  Cat7 / Class F performance; TIA/EIA & IEC aligned; RoHS compliant
• Intended Use
  Indoor patching, datacenters, structured cabling, switches, routers
