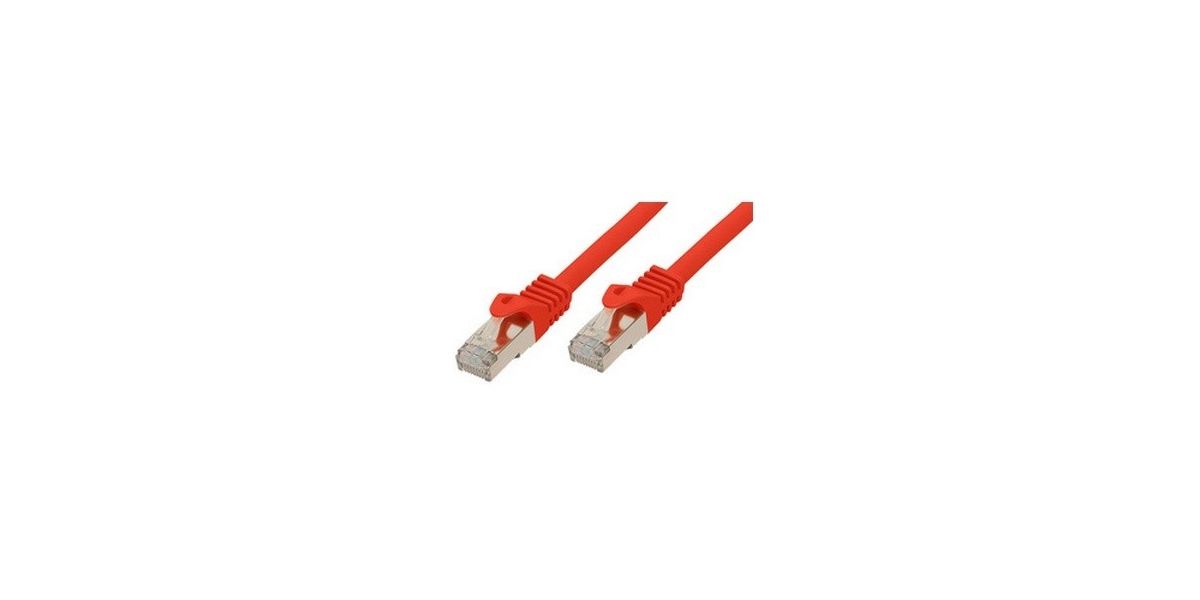

Shiverpeaks RJ45 Patchkabel S/FTP Cat7 LSZH 3,0 m κόκκινο (BS75513-R)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Shiverpeaks
• Model / MPN
  BS75513-R
• SKU
  581135
• EAN / Barcode
  4017538004123
• Cable Category
  Category 7 (Cat7) / Class F
• Length
  3.0 m
• Color
  Red
• Shielding
  S/FTP (overall foil + braid outer shield, foil on each twisted pair)
• Jacket Material
  LSZH (Low Smoke Zero Halogen)
• Connectors
  RJ45 (8P8C) on both ends, gold-plated contacts
• Pinout
  1:1 (TIA/EIA-568B)
• Bandwidth
  Up to ~600 MHz
• Data Rate
  Supports 10GBASE-T (10 Gigabit Ethernet) and PoE (including IEEE 802.3bt)
• Standards / Compliance
  ISO 11801, IEC 60603-7-51 (connectors), ANSI/TIA-568-C.2, RoHS
• Conductor
  Stranded copper conductors (commonly 26/7 AWG in patch cable assemblies)
• Cable Diameter
  ~7.8 mm (nominal, typical for Cat7 S/FTP LSZH patch cables)
• Mating Cycles
  ≥750
• Length Marking
  Yes (length imprint on boot)
• Anti-kink Sleeve
  Moulded boot with locking lever, red
• Operating Temperature Range
  ~-10°C to +60°C (typical for patch cables)
• Storage Temperature Range
  -20°C to +75°C (typical)
• Electrical Impedance
  100 Ω nominal
• Test Voltage
  1000 V DC (core/core and core/screen, typical test)
• Typical Use Cases
  High-speed LAN patching, multimedia setups, structured cabling where EMI/RFI protection and LSZH are required
• Packaging
  Pre-terminated retail patch cable (individual packaging)
