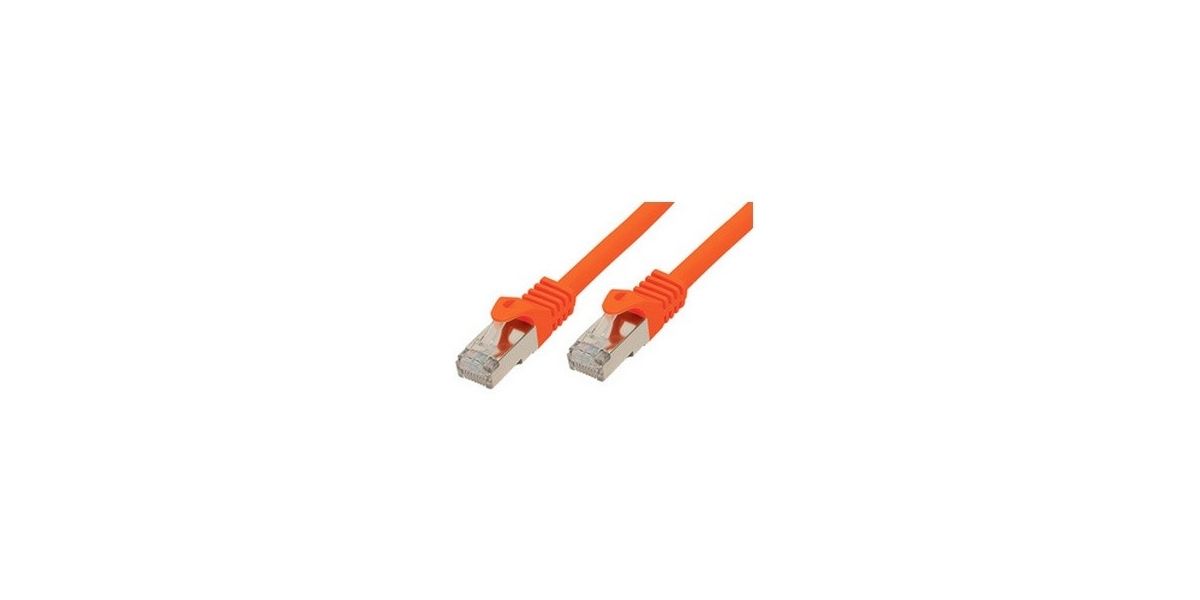

Shiverpeaks RJ45 Patch καλώδιο S/FTP Cat7 LSZH 20m πορτοκαλί

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Shiverpeaks
• Model / MPN
  BS75526-O
• SKU
  581219
• EAN / Barcode
  4017538052155
• Product Type
  RJ45 Patch Cable (raw patch cable style)
• Category
  CAT 7 (Class F)
• Shielding
  S/FTP (PiMF) – foil per pair + overall shield
• Jacket Material
  LSZH (Low Smoke Zero Halogen), flame retardant
• Color
  Orange
• Length
  20 m
• Connectors
  RJ45 (8P8C) gold-plated plugs both ends
• Wiring Standard
  TIA/EIA-568B
• Conductors
  4 pairs (8 cores), AWG 26/7 pure copper (Cu)
• Bandwidth / Frequency
  Up to ~600 MHz (typical CAT7 performance)
• Data Rate
  10 Gbps (10/100/1000/10000 Mbps) over standard distances
• Impedance
  100 Ω (nominal)
• Conductor Insulation
  HDPE / Foam-skin polyethylene (typical)
• Outer Diameter
  Approx. 5.8–8.3 mm (round, depending on variant)
• Bend Radius
  Minimum 8x outer diameter
• Operating Temperature
  Approx. -20°C to +60/75°C
• Installation Temperature
  0°C to +50°C
• Max DC Resistance
  <25–145 Ω/100m (typical spec range)
• Delay Skew
  Max ~45 ns/100m (typical)
• Mutual Capacitance
  ~5.6 nF/100m (typical)
• PoE Support
  Suitable for PoE and PoE+ (and compatible with higher PoE standards in similar models)
• Fire / Safety Standards
  LSZH ratings; IEC 60332-1, IEC 60754, IEC 61034 (typical for LSZH cables)
• Certifications
  RoHS, CE (typical compliance)
• Accessories / Construction
  Molded boots, latching nose protection, rip cord (where applicable)
• Use Cases
  10GBase-T, structured cabling, routers, switches, NAS, IP cameras, VoIP, streaming, gaming
