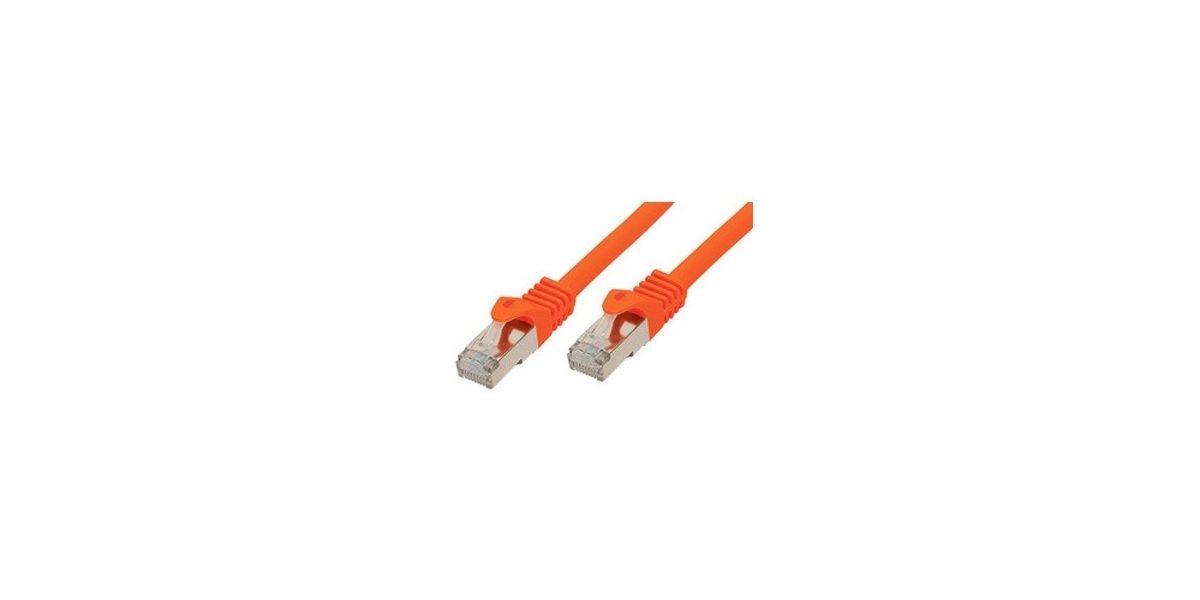

Shiverpeaks RJ45 Patchkabel S/FTP Cat7 LSZH 15m πορτοκαλί (SKU 581203, MPN BS75525-O)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Shiverpeaks
• Model / MPN
  BS75525-O
• SKU
  581203
• EAN / Barcode
  4017538052117
• Category
  CAT 7 S/FTP Patch Cable (RJ45)
• Length
  15 m
• Colour
  Orange
• Sheath Material
  LSZH (Low Smoke Zero Halogen)
• Shielding
  S/FTP (PiMF) – foil per twisted pair + overall braided screen
• Conductor
  Stranded copper, AWG 26/7
• Connector Type
  RJ45 8(8) to RJ45 8(8), molded snagless boots, locking lever
• Connector Spec
  RJ45 Cat6A compatible (500 MHz)
• Bandwidth / Frequency
  ~500–600 MHz (raw cable up to ~600 MHz; connector rated 500 MHz)
• Data Rate
  Up to 10 Gbps (10GBASE-T over 100 m, backwards compatible 1G/2.5G/5G)
• Impedance
  100 Ω (typical)
• Contact Resistance
  ≤30 mΩ
• Test Voltage
  1000 V DC (1 min, core/core and core/screen)
• Nominal Velocity of Propagation (NVP)
  ~70%
• Delay Skew
  ≤45 ns/100 m (typical/series spec)
• Cable Diameter
  ≈6–7.5 mm (nominal)
• Operating Temperature
  -20 °C to +70 °C
• Mating Cycles
  ≥750
• Bending Radius
  Fixed: 4×OD, Flex: 8×OD
• PoE Support
  Supports IEEE 802.3af/at/bt (PoE, PoE+, PoE++ where supported)
• Standards
  Meets CAT7 / Class F cabling characteristics; connectors per IEC 60603-7-51; TIA/EIA pinout (568B)
• Packaging
  Retail coil with label / blister or sleeve depending on retailer
