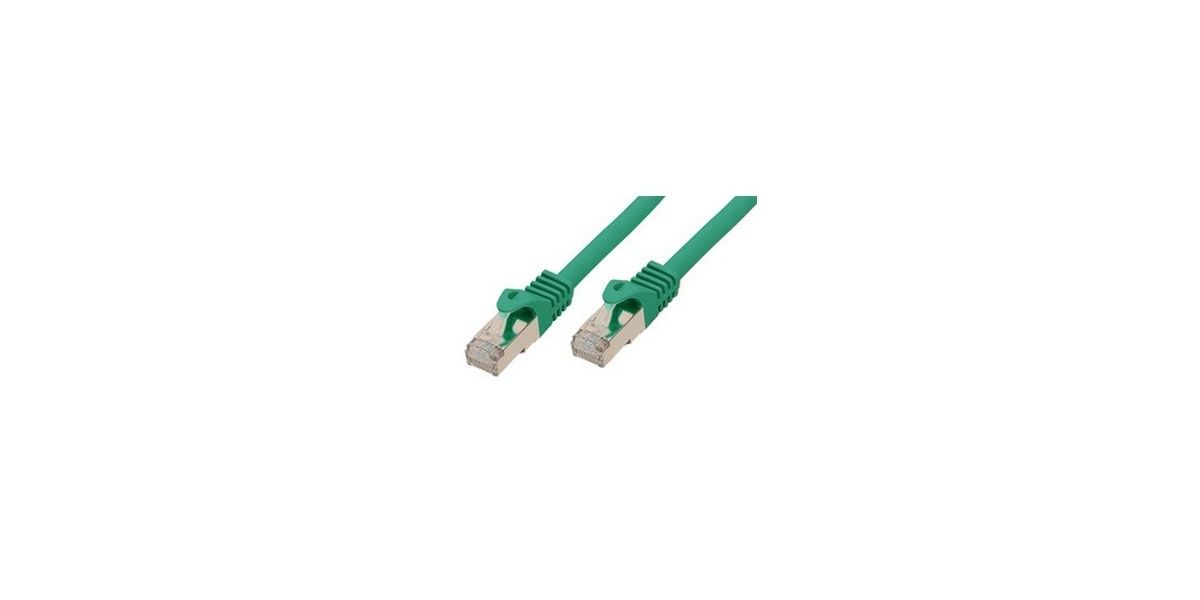

Shiverpeaks RJ45 Patch καλώδιο S/FTP Cat7 LSZH 1,0m Πράσινο (BS75511-G, SKU 581084)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Shiverpeaks
• Model / MPN
  BS75511-G
• SKU
  581084
• EAN / Barcode
  4017538002884
• Product Type
  RJ45 to RJ45 Ethernet patch cable (Patch Cord)
• Category
  Cat.7 (S/FTP, PiMF)
• Length
  1.0 m
• Color
  Green
• Outer Sheath
  LSZH (Low Smoke Zero Halogen)
• Shielding
  S/FTP (overall braided shield + foil per twisted pair, Pair-in-Metal-Foil)
• Connector Type
  RJ45 (8P8C) gold-plated plugs on both ends
• Pinout / Wiring
  Straight-through (1:1) — TIA/EIA 568B compatible
• Pairs
  4 twisted pairs
• Bandwidth / Frequency
  Up to 600 MHz
• Maximum Data Rate
  Up to 10 Gbit/s (10GBASE-T)
• Impedance
  100 Ω (nominal)
• Conductor Material
  Pure copper (bare copper cores) — typical for Cat7 patch cords
• Typical Conductor AWG
  AWG 26 (stranded typical for patch cords)
• Cable Diameter
  Approx. Ø 6 mm (typical for Cat7 S/FTP patch cords)
• Contact Plating
  Gold-plated contacts (typical >50 µ")
• Bending Radius
  Static >32 mm (typical recommendation)
• Operating Temperature
  ~ -20°C to +75°C (typical range)
• Application
  High-speed LAN, data centers, gaming, HD streaming, industrial and EMI-prone environments
• Compliance / Standards
  Backward compatible with Cat5e/Cat6/Cat6A; meets ISO/IEC & IEEE network standards typical for Cat7 components
• Packaging
  Retail: small polybag / blister or carded blister with label (estimated)
• Typical Mating Cycles
  ≥750 (typical for gold-plated RJ45 contacts)
• Weight (product)
  ~30 g (estimated)
• Packaging Weight
  ~50 g (estimated)
