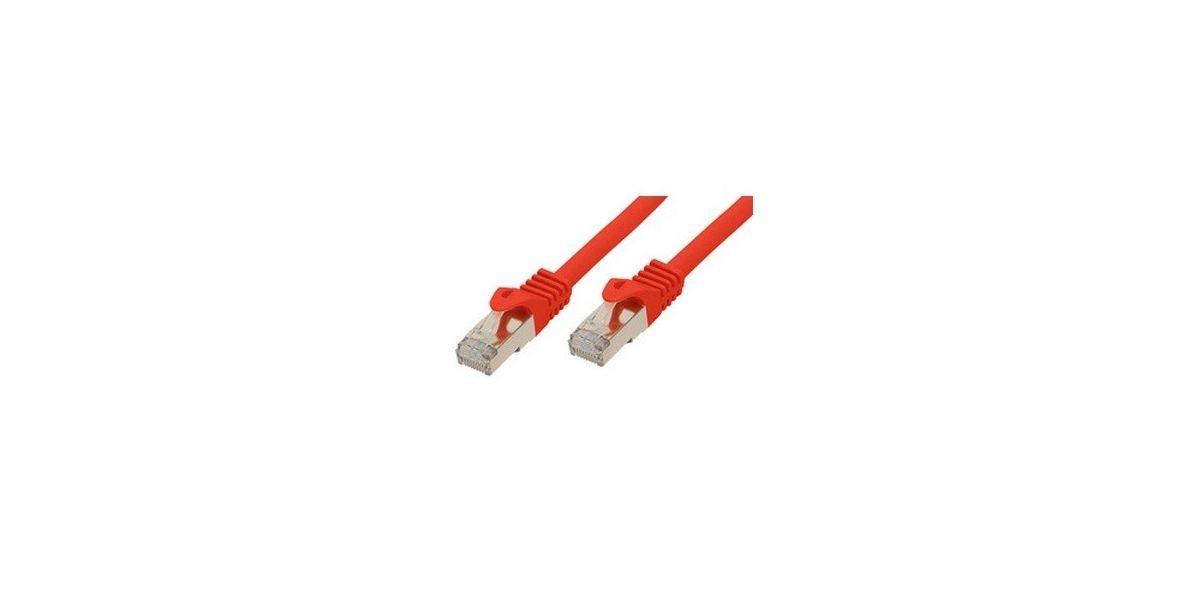

Shiverpeaks RJ45 Patchkabel S/FTP Cat7 LSZH 1,0 m κόκκινο (BS75511-R)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Shiverpeaks
• Model / MPN
  BS75511-R
• SKU
  581086
• EAN
  4017538003294
• Product type
  RJ45 Ethernet patch cable
• Category
  Cat7 (Class F)
• Shielding
  S/FTP (overall braid + foil per pair, PiMF)
• Conductor material
  Copper (CU)
• Conductor construction
  4 x 2 x AWG 26/7 (flexible stranded)
• Jacket material
  LSZH (Low Smoke Zero Halogen)
• Color
  Red
• Length
  1.0 m
• Connectors
  RJ45 plug (8P8C) – both ends
• Pin assignment
  TIA/EIA-568B (1:1)
• Contact plating
  Gold-plated contacts
• Contact resistance
  ~30 mΩ (typ.)
• Impedance
  100 Ω ±15 Ω
• Bandwidth / Frequency
  Up to 600 MHz
• Data rate
  Up to 10 Gbit/s
• Cable diameter
  ~6.0 - 6.2 mm
• Bend radius
  min. ≥32 mm
• Mating cycles
  ≥750 cycles (connector)
• Test voltage
  1000 V DC core-to-core / core-to-screen (1 min)
• Operating temperature
  -20 °C to +60 °C (typical)
• Standards compliance
  ISO/IEC 11801 Class F, IEC 60603-7-51, TIA/EIA 568B
• Compatibility
  Backward compatible with Cat6A, Cat6, Cat5e
• Application
  Data centers, gaming, HD streaming, professional networks
• Packaging
  Retail blister / simple folded cable packaging (estimate)
• RoHS / Safety
  Halogen-free jacket (LSZH)
