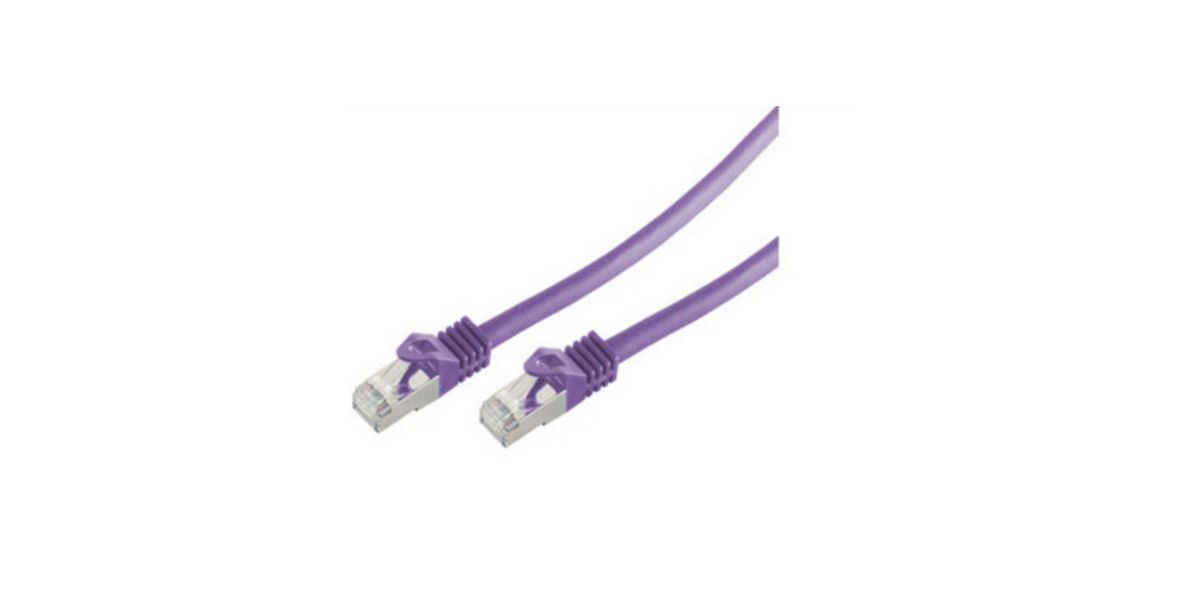

Shiverpeaks RJ45 Patchkabel S/FTP Cat7 LSZH 0,25 m βιολετί

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Shiverpeaks
• Model / MPN
  BS75511-0.25V
• SKU
  581063
• EAN / Barcode
  4017538071439
• Product Type
  RJ45 patch cable (pre-terminated)
• Category / Class
  CAT 7 (Class F / S/FTP)
• Length
  0.25 m (25 cm)
• Color
  Violet (violett)
• Conductor Material
  Pure copper (CU) — typical construction AWG 26/7 (manufacturer typical)
• Shielding
  S/FTP (overall braided shield + foil on each twisted pair, PiMF)
• Jacket / Sheath
  LSZH (Low Smoke Zero Halogen)
• Cable Shape / Diameter
  Round; nominal diameter ≈6–7.8 mm (typical for Cat7 S/FTP patch cords)
• Connector Type
  RJ45 (8P8C) to RJ45 (8P8C)
• Connector Contacts
  Gold-plated contacts (typical)
• Wiring Standard
  T568B (typical for patch cables)
• Bandwidth / Frequency
  Up to 500–600 MHz (Class F / Cat7)
• Data Rate
  Up to 10 Gbps (10GBASE-T), backward compatible with lower standards
• PoE Support
  Supports PoE / PoE+ / PoE++ (IEEE 802.3 standards)
• Standards Compliance
  ISO/IEC 11801 Class F; IEEE 802.3 (10GBASE-T) compatibility
• Operating Temperature
  Operation: approx. -10°C to +60°C; Installation: 0°C to +50°C (typical)
• Bend Radius (min)
  ≈8× cable diameter (manufacturer typical)
• Tensile Load (max)
  Installation tensile strength typically ≈110 N (typical value)
• Fire / Safety Rating
  LSZH — halogen-free, low smoke
• Product Weight
  ≈25 g
• Package Weight
  ≈40 g
• Package Dimensions (L×W×H)
  10 × 8 × 2 cm
