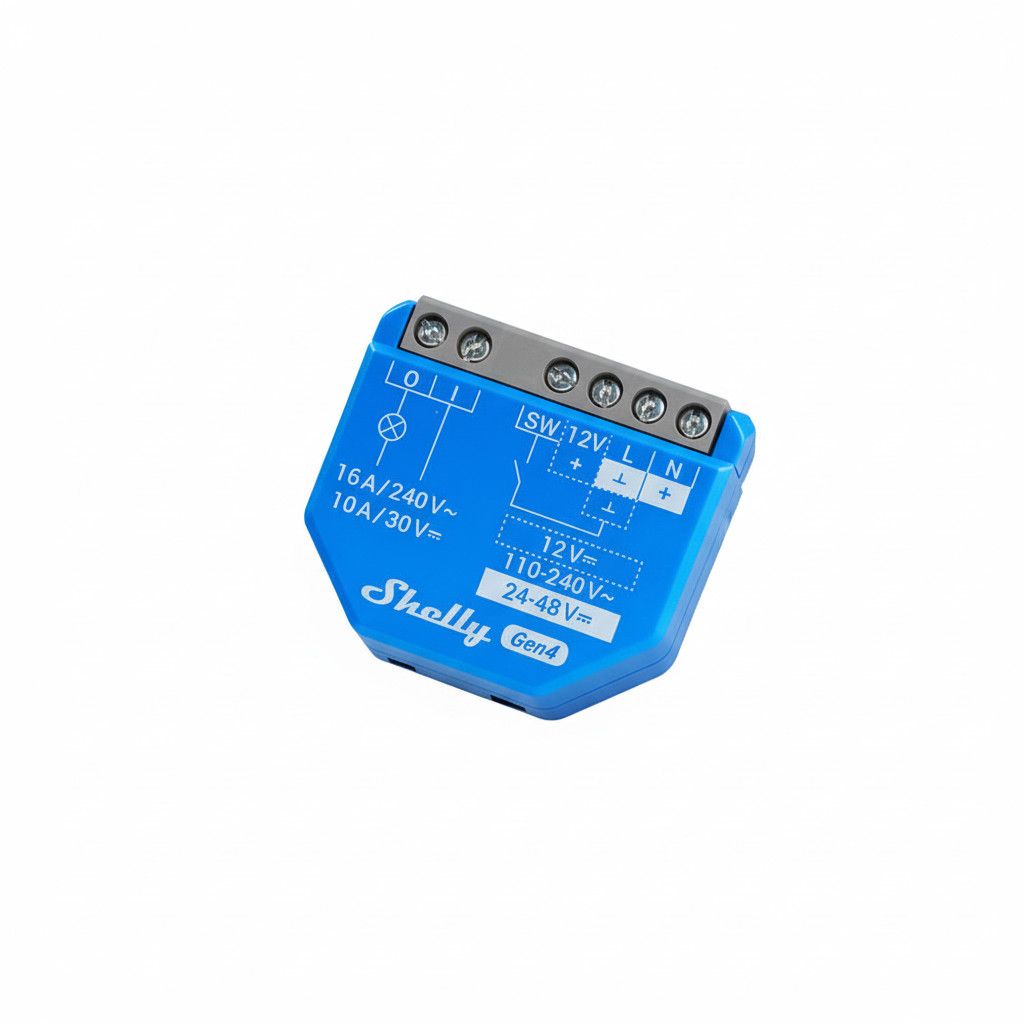

Shelly Ρελέ 1 Gen4 - Πακέτο 4 τεμαχίων (4er Pack), max 16A, 1 Κανάλι, Wi‑Fi, Matter, Zigbee, Bluetooth

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Shelly
• Model
  Shelly 1 Gen4 (4er Pack)
• MPN
  Shelly_1_Gen4_4er
• SKU
  21249841
• EAN
  3800238070700
• Product Type
  Single-channel relay (dry contact)
• Channels
  1
• Max Current
  16 A at 240 V AC
• Max Switching Voltage
  240 V AC / 30 V DC
• Max Switching Current (DC)
  10 A at 30 V DC
• Max Load Power
  3680 W at 230 V
• Supply Voltage
  110–240 V AC; 12 V DC; 24–48 V DC
• Power Consumption
  < 1 W
• Connectivity
  Wi‑Fi 2.4 GHz (802.11 b/g/n), Bluetooth 5.0, Zigbee (802.15.4), Matter
• Protocols
  HTTP, HTTPS, MQTT, MQTTS, UDP, WebHooks, KNXnet/IP
• Integrations
  Amazon Alexa, Google Assistant, Samsung SmartThings, Apple HomeKit (via Matter), Home Assistant
• Processor / SoC
  ESP-based multi-protocol MCU (Gen4 family hardware)
• Memory
  8 MB (flash)
• Sensor
  Internal temperature sensor
• Interface
  Embedded web interface, local API
• Dimensions (unit)
  42 × 37 × 16 mm
• Weight (unit)
  120 g
• Material
  Plastic (blue housing)
• Terminals
  6 screw terminals
• Mounting
  Installed inside wall junction box / concealed wiring
• Operating Temperature
  -20 °C to 40 °C
• Humidity
  30% to 70% RH
• Protection Notes
  Requires external circuit breaker (EN60898-1) B or C characteristic, max 16 A
• OTA Updates
  Supported
• Packaging
  4 units per pack (retail 4er Pack) — single-unit specs primarily documented; 4-pack retail bundle not always listed in vendor specs
