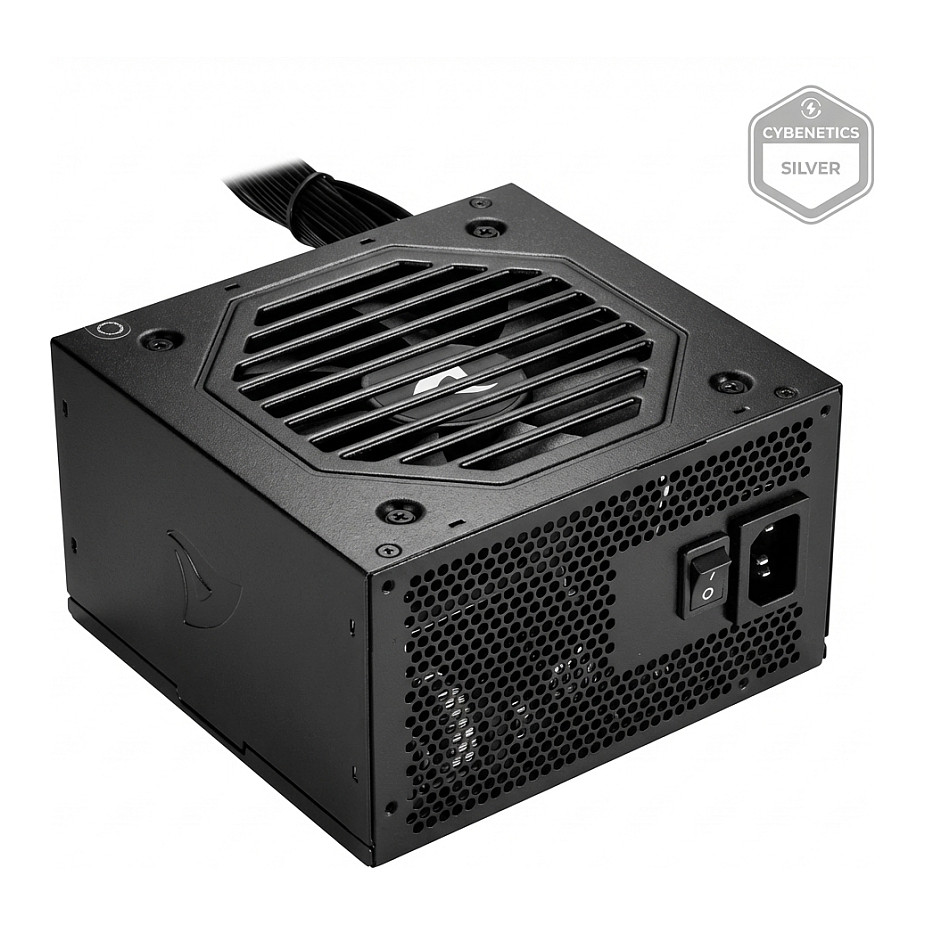

Sharkoon Rebel P15 850W (ATX 3.1) Τροφοδοτικό 850W

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Product Name
  SHARKOON Rebel P15 850W (ATX 3.1)
• Brand
  SHARKOON
• MPN
  4044951045037
• EAN
  4044951045037
• SKU
  21318938
• Form Factor
  ATX 3.1
• Continuous Power
  850 W
• 12V Rail Power
  849.6 W
• 12V Rails Count
  1 (single 12V rail)
• Combined 3.3V + 5V
  100 W (18A @ 3.3V, 18A @ 5V)
• 5VSB
  15 W
• -12V
  0.3 W
• Certification
  Cybenetics Gold
• Efficiency (typical)
  ~89% @ 230V
• Input Voltage
  100 – 240 VAC
• Input Frequency
  50 – 60 Hz
• Input Current
  10 A (110V) / 5 A (230V)
• Topology / Tech
  APFC, Half-Bridge, LLC Resonant, Synchronous Rectification, DC-DC
• Fan
  120 mm Fluid Dynamic Bearing (FDB) / hybrid magnetic bearing
• Fan Mode
  Semi-passive (hybrid) - fan stops at low loads
• Noise Class
  Cybenetics Class A (approx. 20–25 dB[A])
• Protections
  OVP, OCP, UVP, OTP, SCP, OPP
• MTBF
  ≥100,000 hours
• Warranty
  7 years
• Modularity
  Fixed cables (non-modular)
• Cable Type
  Flat cables
• Main GPU Connector
  1x 12+4 pin (12V 2×6) high power GPU connector
• Additional GPU Connectors
  4x PCIe 6+2 pin (on 2 cables)
• EPS / CPU Connectors
  2x 8-pin (4+4) EPS connectors
• SATA Connectors
  11x SATA (3 cables)
• Molex
  1x 4-pin Molex (adapter)
• ATX Cable Length
  600 mm (ATX cable)
• Dimensions (PSU)
  140 x 150 x 86 mm
• Housing Color
  Black
• Weight (unit)
  1963 g (approx., incl. fixed cables)
• Standby Power Consumption
  ≤0.25 W
• Operating Temperature
  0 to +40 °C (continuous)
• ErP Compliant
  Yes
• Target Use
  Gaming / High-end GPUs / Next-gen GPU ready
