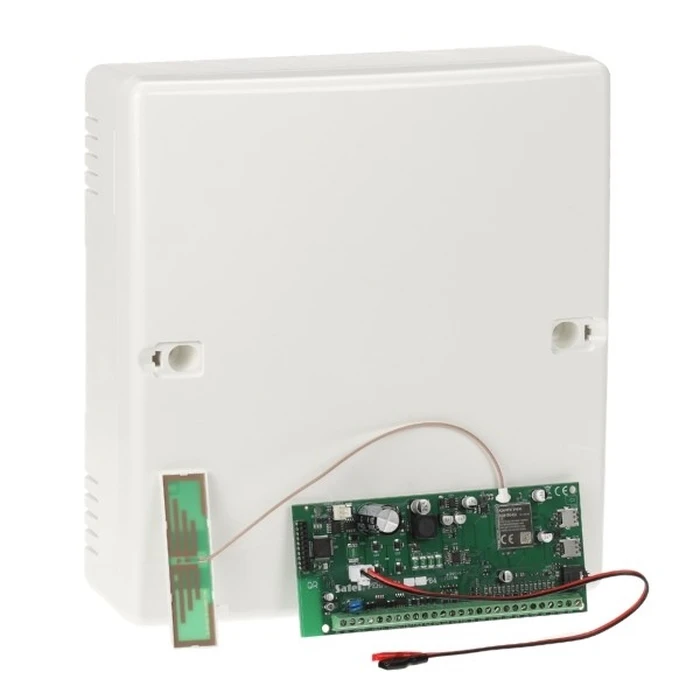

SATEL PERFECTA 64 M SET-A - Κεντρική μονάδα συναγερμού (kit) με επικοινωνία GSM/LTE, κεραία και περίβλημα

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  SATEL
• Model
  PERFECTA 64 M SET-A
• Product type
  Hybrid alarm control panel kit (wired + wireless)
• Certification
  EN 50131 Grade 2
• Built-in communicator
  GSM/LTE (2G/4G)
• SIM support
  Dual nano-SIM slots (redundancy)
• On-board inputs
  8 wired inputs
• On-board outputs
  4 wired outputs
• Maximum expandable zones
  Up to 64 zones
• Maximum outputs (expandable)
  Up to 64 outputs
• Partitions
  Up to 4 partitions
• Partition arming modes
  Day, Night, Full (3 modes per partition)
• Users supported
  62 users/keyfobs
• Event memory
  3584 events
• Wireless support
  ABAX 2 and MICRA / PERFECTA-RF devices
• Wireless keypads supported
  Up to 4 PRF-LCD-WRL keypads
• Detectors supported (wireless)
  Up to 64 detectors (depending on config)
• Sirens supported
  Up to 4
• Keyfobs supported
  Up to 62
• Remote control
  SMS, voice calls, push notifications via mobile app
• Remote configuration
  PERFECTA Soft (PC configuration)
• Audio alarm verification
  Supported (listening to premises audio)
• Reporting
  Monitoring station reporting supported
• Expandable modules
  INT-E (zone expander), INT-O / INT-ORS (output expanders)
• Power supply
  18 V AC (±15%), 50–60 Hz
• Current consumption (standby)
  190 mA
• Current consumption (max)
  490 mA
• Operating temperature
  -10°C to +55°C
• PCB dimensions
  160 × 68 mm
• PCB weight
  110 g
• Kit includes
  Alarm control panel PCB, antenna, enclosure
• Enclosure
  Included (metal/plastic enclosure for mounting)
• Typical applications
  Flats, single-family houses, offices, small commercial premises
