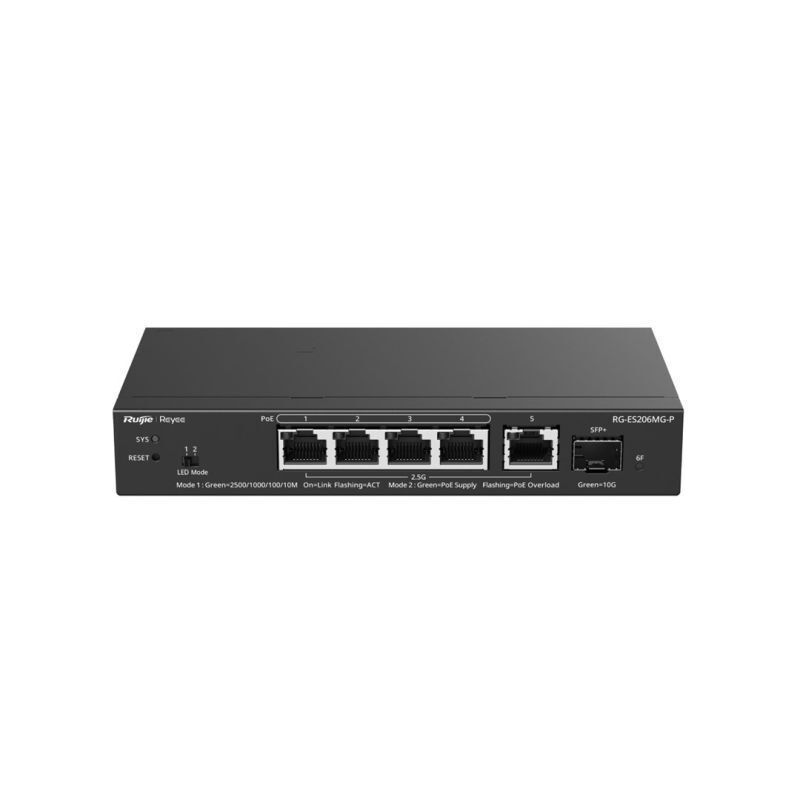

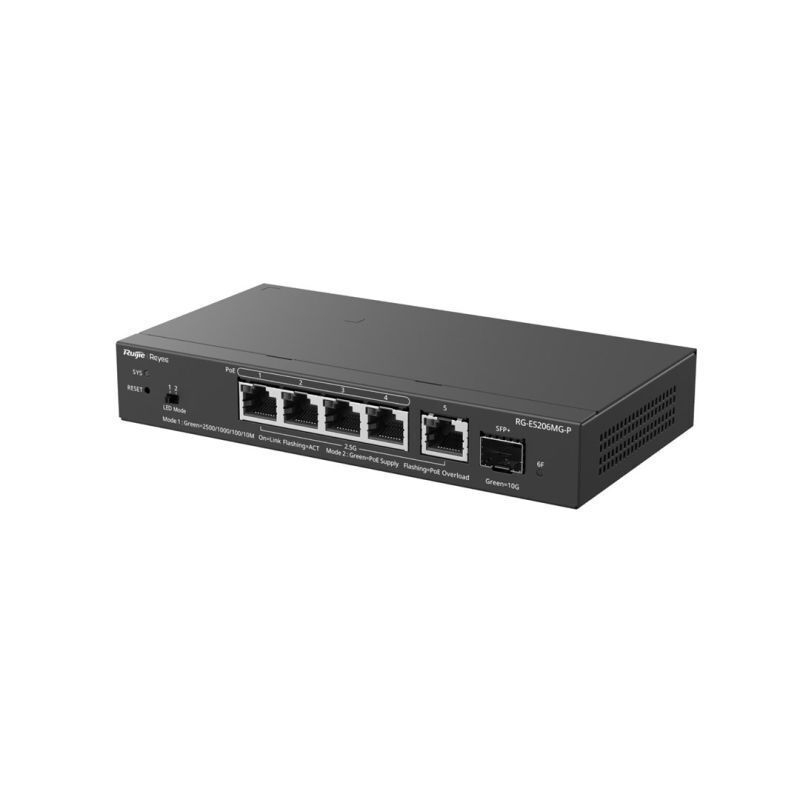

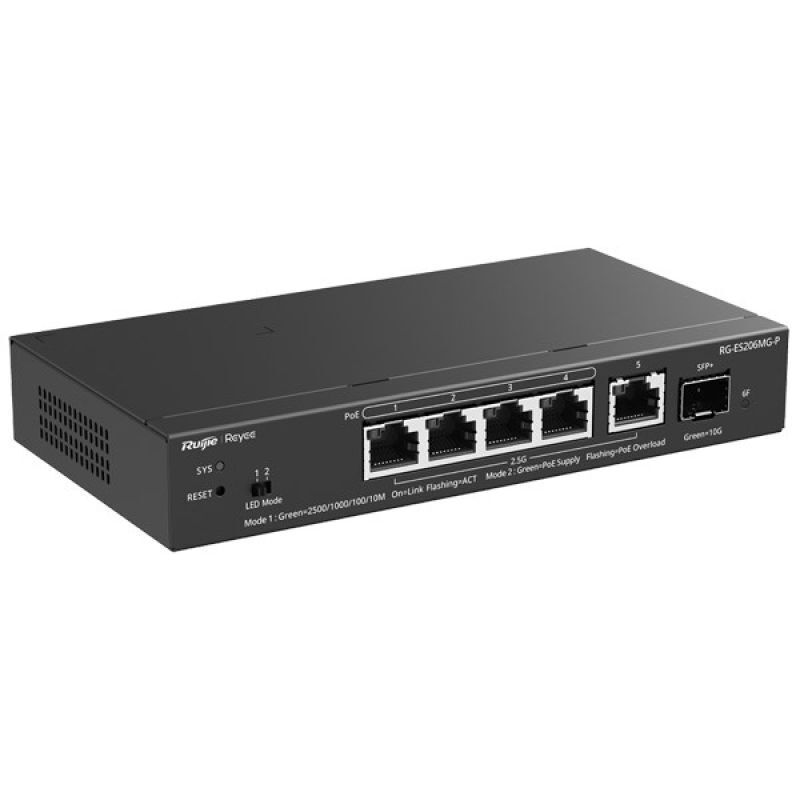

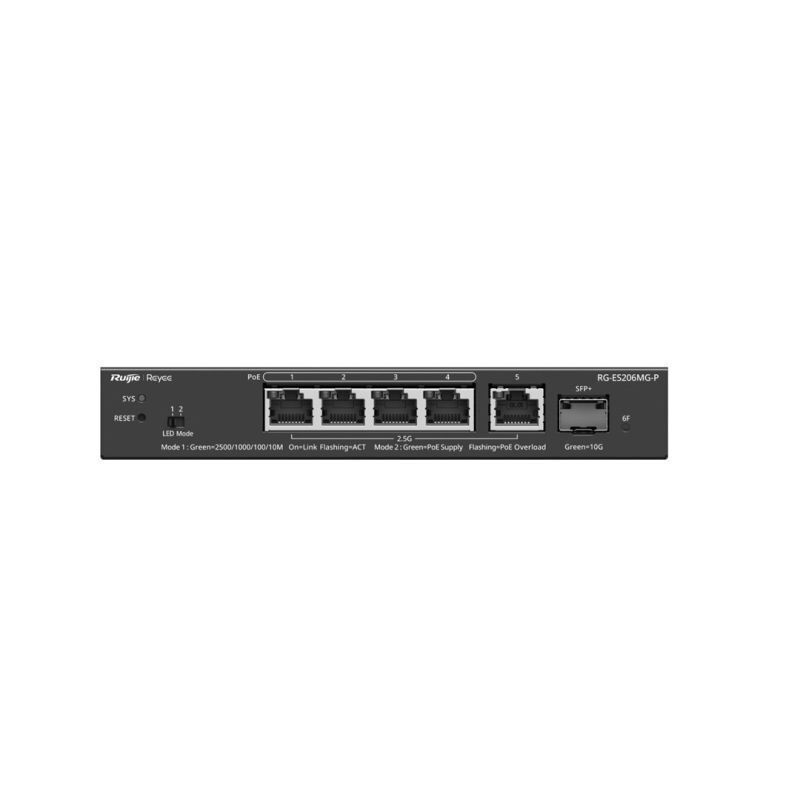

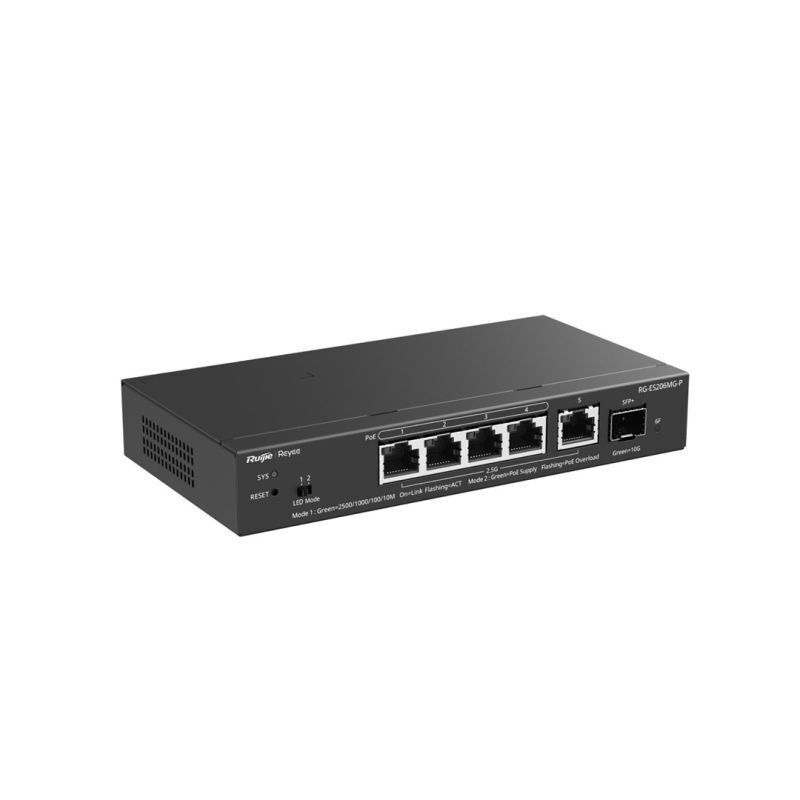

Ruijie RG-ES206MG-P Διαχειριζόμενος L2 PoE+ Switch με 4 Θύρες Gigabit (1Gbps)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Model
  RG-ES206MG-P
• Manufacturer
  Ruijie
• SKU
  WLONONWCRPOXS
• EAN
  6976915003303
• MPN
  RG-ES206MG-P
• Switch type
  Managed
• Switch layer
  L2
• PoE support
  Yes (PoE+/IEEE 802.3at and IEEE 802.3af)
• Total PoE budget
  70 W
• Ethernet ports (RJ-45) quantity
  5 (2.5G-capable ports, 100/1000/2500 Mbps)
• PoE-enabled ports
  4 (PoE+ capable)
• SFP+ module slots quantity
  1 (10G SFP+ support)
• Per-port speed
  Up to 2.5G on RJ‑45 ports (100/1000/2500)
• Uplink support
  10G via SFP+
• Switching capacity
  45 Gbit/s
• Forwarding rate
  33.75 Mpps
• MAC address table
  4000 entries
• Jumbo frames
  9216 bytes
• Number of VLANs
  16
• VLAN support
  Yes (IEEE 802.1Q)
• Port mirroring
  Yes
• Flow control support
  Yes
• Broadcast storm control
  Yes
• DHCP features
  DHCP client, DHCP snooping
• Web-based management
  Yes
• Flash memory
  4 MB
• MTBF
  200000 h
• Housing material
  Metal
• Form factor
  Desktop / Wall-Mounting
• Rack mounting
  No
• Product colour
  Black
• Power supply included
  Yes
• Power source
  DC (54 V)
• AC input voltage
  90 - 264 V
• AC input frequency
  47 - 63 Hz
• Input current
  1.5 A
• Power consumption (max)
  75.5 W
• Power saving mode (EEE)
  Yes
• Operating temperature
  0 - 40 °C
• Storage temperature
  -40 - 70 °C
• Operating relative humidity
  10 - 90 %
• Storage relative humidity
  5 - 95 %
• Operating altitude
  -500 - 5000 m
• Width
  172 mm
• Depth
  90.8 mm
• Height
  28 mm
• Weight
  490 g
• Package weight
  1.39 kg
• Compliance certificates
  CE
• 10G support
  Yes (via SFP+)
