Ruijie RG-AP820-L v3 Σημείο Πρόσβασης Wi‑Fi 6 Διπλής Ζώνης (2.4 & 5 GHz) Λευκό

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Ruijie
• Model
  RG-AP820-L(V2) (v3 variant referenced)
• SKU
  WLONONWCROPXM
• MPN
  RG-AP820-L(V2)
• EAN
  6971693271432
• Product Type
  Wireless Access Point (Ceiling/Indoor)
• Wi‑Fi Generation
  Wi‑Fi 6 (802.11ax)
• Wireless Standards
  IEEE 802.11a/b/g/n/ac/ax
• Frequency Bands
  2.4 GHz and 5 GHz (Dual‑Band)
• Maximum data rate (5 GHz)
  1200 Mbit/s
• Maximum data rate (2.4 GHz)
  574 Mbit/s
• Combined/Reported WLAN Throughput
  (reported) up to 2975 Mbps (spec sheet entry)
• Maximum data transfer rate (overall)
  1200 Mbit/s (per provided attribute)
• MIMO
  2x2
• Modulation
  DQPSK, CCK, 1024-QAM, QPSK, DBPSK, 256-QAM, OFDM, 64-QAM, 16-QAM, BPSK

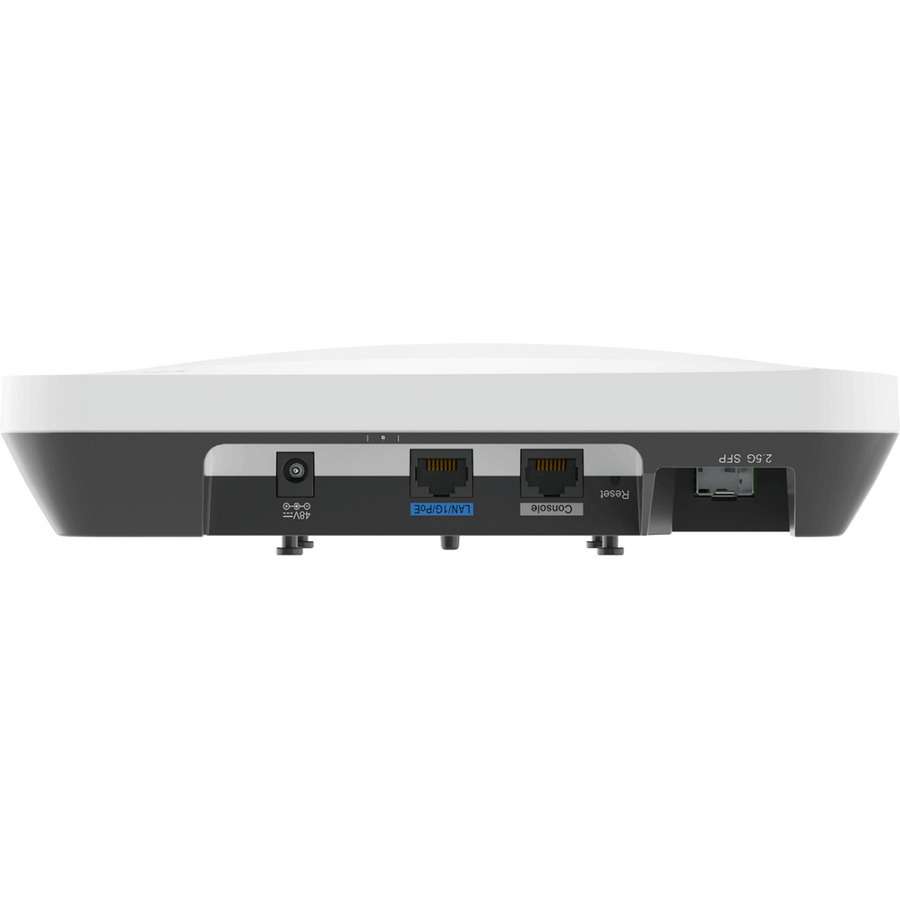

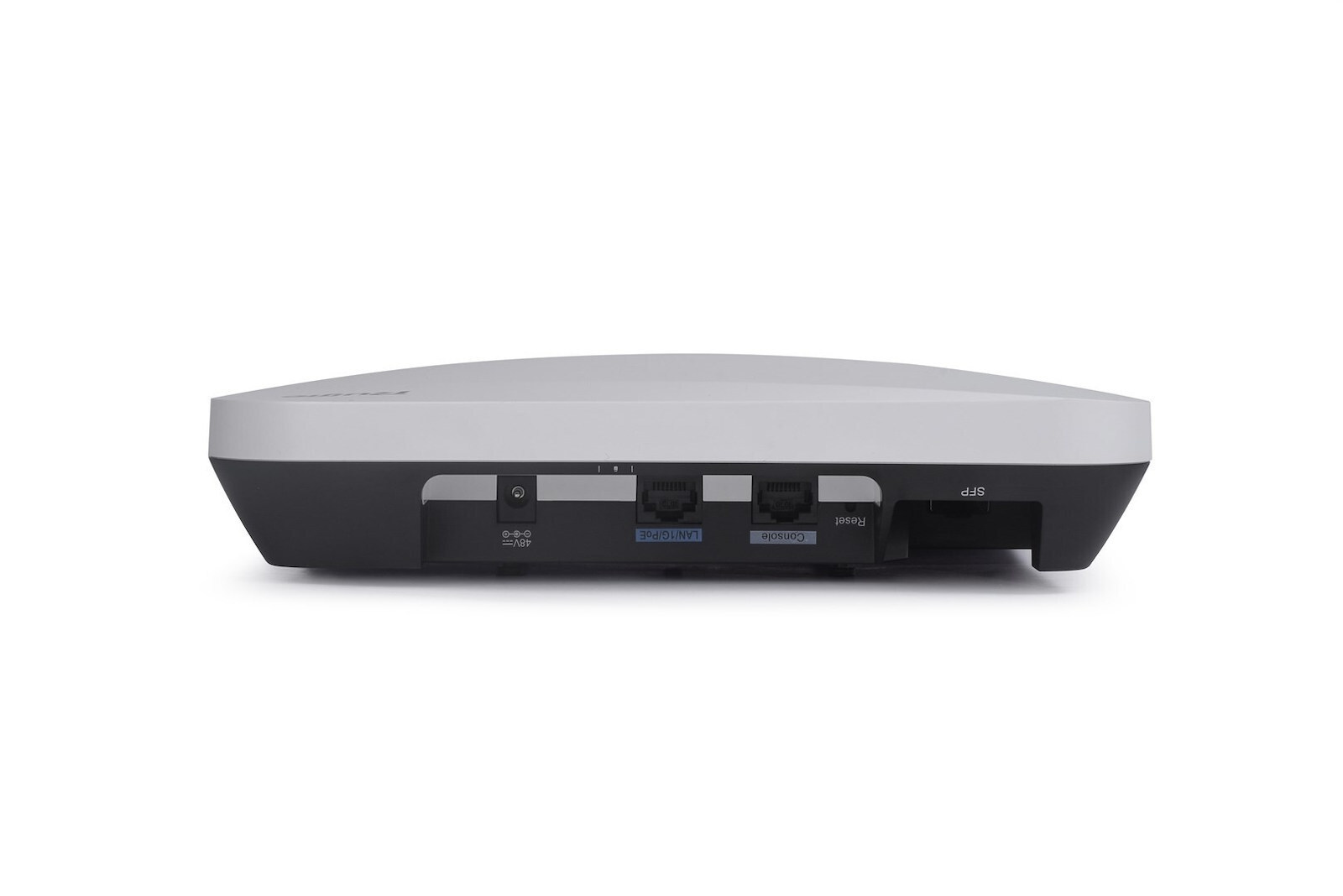

• Ethernet ports
  2 (supports 1000 Mbps and 2500 Mbps speeds; typical config: 1x 2.5GbE + 1x 1GbE passthrough)
• Cabling technology
  10/100/1000Base-T(X)
• Power over Ethernet (PoE)
  Yes (PoE+)
• Number of SSIDs supported
  32
• VLAN support
  Yes
• Wireless isolation
  Yes
• Security algorithms
  WPA3, WPA2, WPA-PSK, WPA2-AES, WPA-TKIP, WEP
• SSID features
  Hidden SSID supported
• Management protocols
  Web-based management, Telnet, SSH, TFTP
• SNMP / Syslog
  Syslog: Yes
• DHCP features
  DHCP server: Yes, DHCP client: Yes, DHCP snooping: Yes
• Mesh support
  Yes (Wi‑Fi Mesh)
• Ethernet Backhaul
  Yes
• Antenna type
  Internal / Integrated
• Antenna gain (max)
  ~3 dBi (per provided data; 2.4 GHz noted ~2.4 dBi in spec block)
• Maximum transmit power
  26 dBm
• LED indicators
  Yes

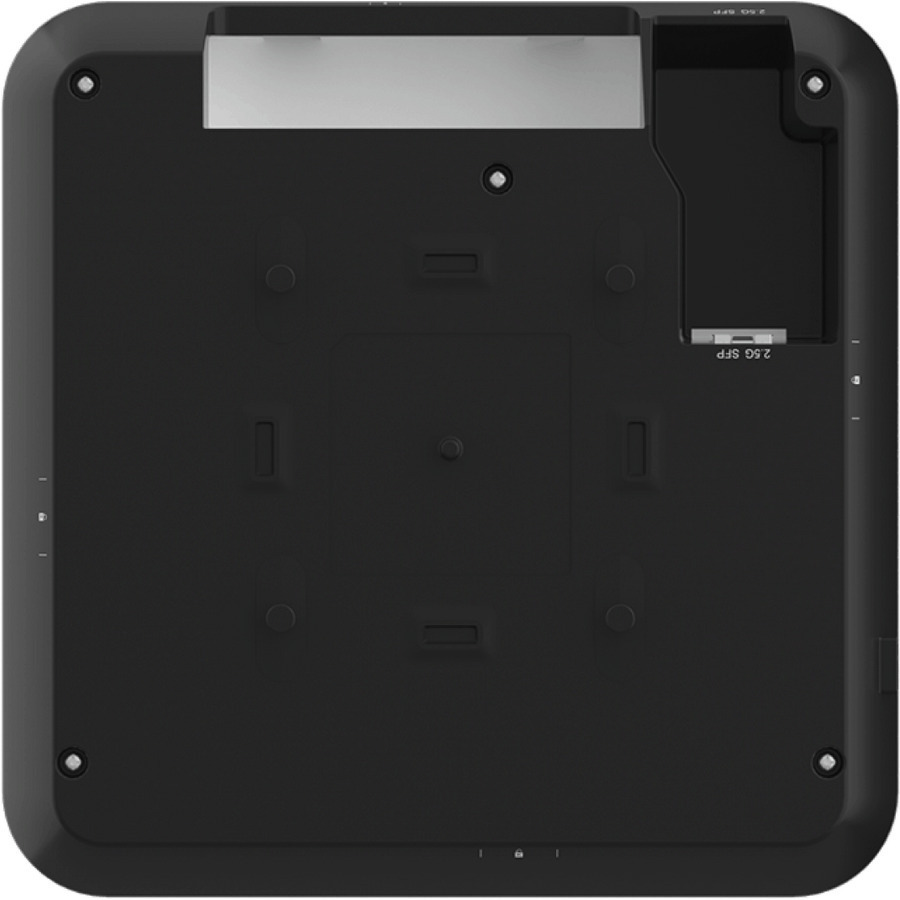

• Placement / Mounting
  Ceiling, Wall, Pole
• Operating temperature
  -10 to 50 °C
• Storage temperature
  -40 to 70 °C
• Operating relative humidity
  5 - 95 %
• Storage relative humidity
  5 - 95 %
• Dimensions (H x W x D)
  26 x 153 x 193 mm
• Weight
  500 g
• Product colour
  White
• Package contents
  Mounting kit (included)
• Regulatory / Additional
  Web/CLI management, wireless roaming supported, DHCP snooping, VLAN, wireless isolation
