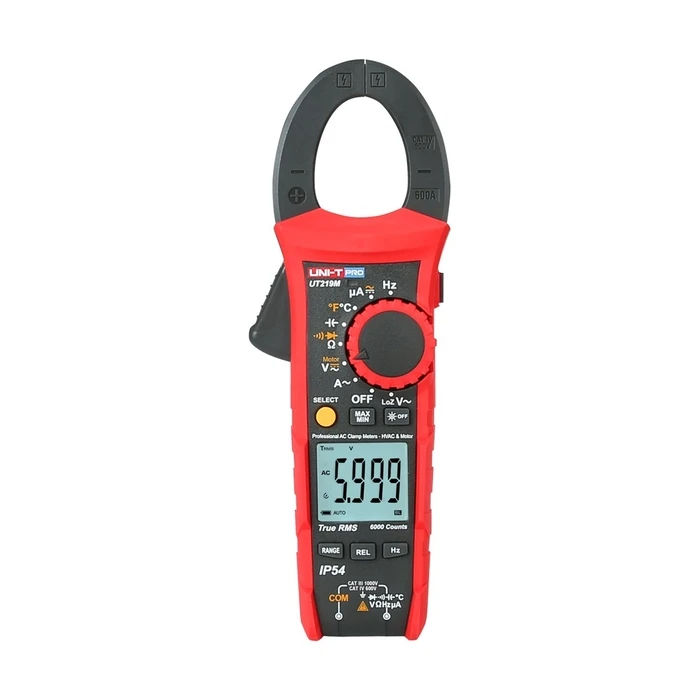

Επαγγελματικός μετρητής με πένσα UNI‑T UT219M

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  UNI-T
• Model
  UT219M
• Product Type
  Professional True RMS Clamp Meter / Multimeter
• AC Current (clamp)
  0–600 A (True RMS)
• AC Voltage
  0–600 V AC
• DC Voltage
  0–600 V DC
• Low Impedance (LoZ) Mode
  Yes
• Resistance
  0–60 MΩ
• Capacitance
  0–60 mF (60,000 μF)
• Frequency
  Up to 40 MHz
• Duty Cycle
  0.1%–99.9%
• Temperature Range
  -40 to 1000 °C (-40 to 1832 °F)
• AC Current Accuracy
  ±(1.8% + 6)
• AC Voltage Accuracy
  ±(1% + 6)
• DC Voltage Accuracy
  ±(0.6% + 3)
• Resistance Accuracy
  ±(1% + 3)
• Capacitance Accuracy
  ±(4% + 7)
• Frequency Accuracy
  ±(0.1% + 5)
• Temperature Accuracy
  ±(2% + 5 °C)
• Display
  LCD (display area ~35 x 31 mm) with backlight
• Sample Rate
  ~3 measurements/sec
• Data Functions
  MAX/MIN, Relative, Data Hold
• Continuity/Diode Test
  Yes
• Auto/Manual Ranging
  Yes
• Polarity
  Automatic
• Protection (Ingress)
  IP65
• Drop Resistance
  Up to 2 m
• Safety Category
  CAT III 1000 V / CAT IV 600 V
• Power Supply
  3 x 1.5 V AAA batteries
• Dimensions
  ~234.6 x 82 x 47 mm
• Weight
  ~310 g (device) / ~338 g with batteries (varies by source)
• Color
  Red with gray accents
• Included Accessories
  Test leads, batteries (may vary by package)
• Package Contents Note
  Contents vary by seller; typical kit includes meter, leads, and batteries
