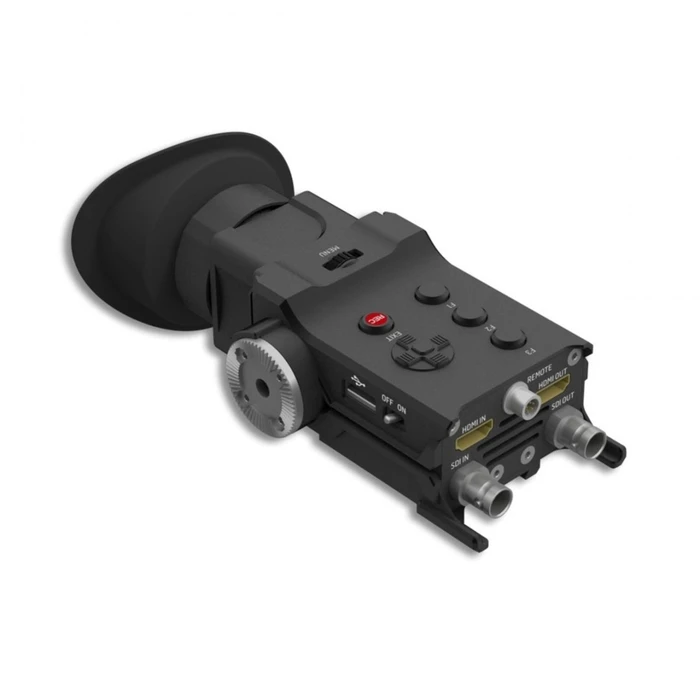

Portkeys OEYE-RED Ηλεκτρονικό Οφθαλμό (EVF) 4K 3G-SDI/HDMI

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Portkeys
• Model / MPN
  OEYE-RED
• Product Type
  Micro‑OLED electronic viewfinder (EVF)
• Display Size
  0.71 inch micro‑OLED
• Resolution
  1920 × 1080
• Aspect Ratio
  16:9
• Brightness
  200 cd/m² (200 nits)
• Contrast Ratio
  100,000:1
• Color Depth
  8‑bit
• Touchscreen
  No
• HDMI Input/Output
  Supports up to DCI 4K@24 (some listings note UHD 30p)
• 3G‑SDI Input/Output
  Supports up to 1080p60
• Signal Input
  3G‑SDI, 4K HDMI
• Signal Output
  3G‑SDI, 4K HDMI
• RED Camera Control
  Native RED camera menu control (compatible with MONSTRO, HELIUM, GEMINI, DRAGON‑X, KOMODO families)
• Remote Port
  5‑pin LEMO‑type remote control output
• Diopter Adjustment
  Built‑in, adjustable +8 to -3
• Power Input
  7–24 VDC
• Power Consumption
  ~10 W
• Mounting
  1 x rosette
• Material
  Aluminum
• Dimensions (with listed accessories)
  180 × 72.4 × 69.7 mm
• Weight
  ~385 g
• Image Tools / OSD Features
  Focus peaking, False Color, Waveform, Zebra, Pixel zoom, Pixel‑to‑pixel, Screen markers, Custom aspect ratios, Color temperature selection, H/V delay, Image flip/rotate, OSD flip, Underscan
