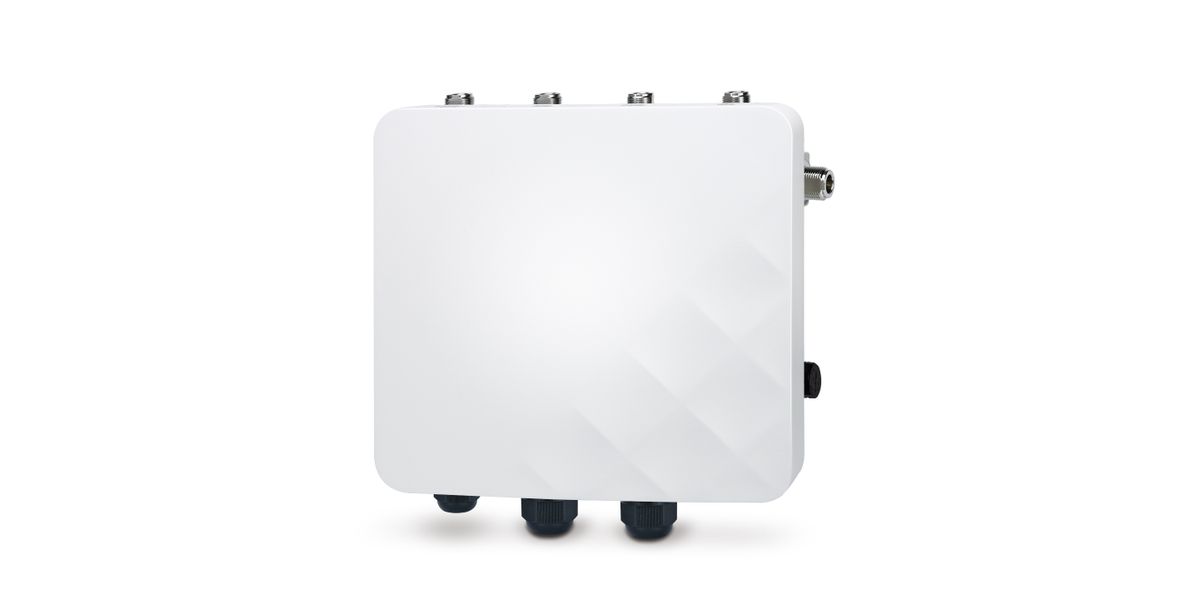

PLANET Εξωτερικό Σημείο Πρόσβασης Wi‑Fi 7 PoE+ WDAP-5100BE

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  PLANET (Planet Technology Corp.)
• Model / MPN
  WDAP-5100BE
• SKU
  580202
• EAN / Barcode
  4711605289443
• Product Type
  Outdoor Wireless Access Point (Wi‑Fi 7)
• Wi‑Fi Standard
  IEEE 802.11a/b/g/n/ac/ax/be (Wi‑Fi 7 / 802.11be)
• Bands
  Dual-band concurrent (2.4 GHz + 5 GHz)
• Maximum Aggregate Throughput
  5100 Mbps (2.4 GHz: 688 Mbps; 5 GHz: 4323 Mbps)
• Radio Configuration
  2×2 for 2.4 GHz; 3×3 for 5 GHz
• Advanced PHY Features
  4096-QAM (EHT), OFDMA (MU‑OFDMA), MU‑MIMO, Beamforming, BSS Coloring
• Multi-Link
  Supports Multi-Link Operation (MLO)
• Channel Width
  Up to 160 MHz
• Maximum Clients
  Up to 256 concurrent clients
• Operating Modes
  Access Point, Gateway, Repeater, WISP
• Wireless QoS
  eQoS, dynamic packet prioritization for low latency/jitter
• Security
  WPA/WPA2/WPA3, EAP methods (e.g., EAP-TLS, PEAP), enterprise security features
• Antennas
  Dual-band external high-gain antennas (detachable/external)
• Ethernet Interfaces
  1 × 10/100/1000/2500BASE-T PoE+ WAN port (802.3at PD), 1 × 10/100/1000BASE-T LAN port
• Power Options
  802.3at PoE+ (primary), optional 12V DC input
• PoE Standard
  802.3at (PoE+)
• Mounting
  Outdoor pole and wall mount kit (standard compliant)
• Enclosure Material
  Aluminium
• Color
  White
• Environmental Rating
  IP65 / IP67 (suitable for harsh outdoor conditions)
• Operating Temperature
  Rugged outdoor range (typical similar models: -20 ~ 60 °C)
• Operating Humidity
  Operating 10 ~ 90% non‑condensing; Storage 5 ~ 95% non‑condensing
• VLAN
  Supports multiple VLANs and SSID-to-VLAN mapping
• Management
  Web GUI, firmware upgradeable; enterprise management features (SNMP/others dependent on firmware)
• LED Indicators
  System and status LEDs (model-specific)
• Reset Button
  Hardware reset button present
• Regulatory Compliance
  CE, RoHS (as listed)
• Firmware Notes
  Some advanced features may require firmware updates
• Typical Use Cases
  High-density outdoor coverage, surveillance uplinks, industrial sites, campuses, stadiums
