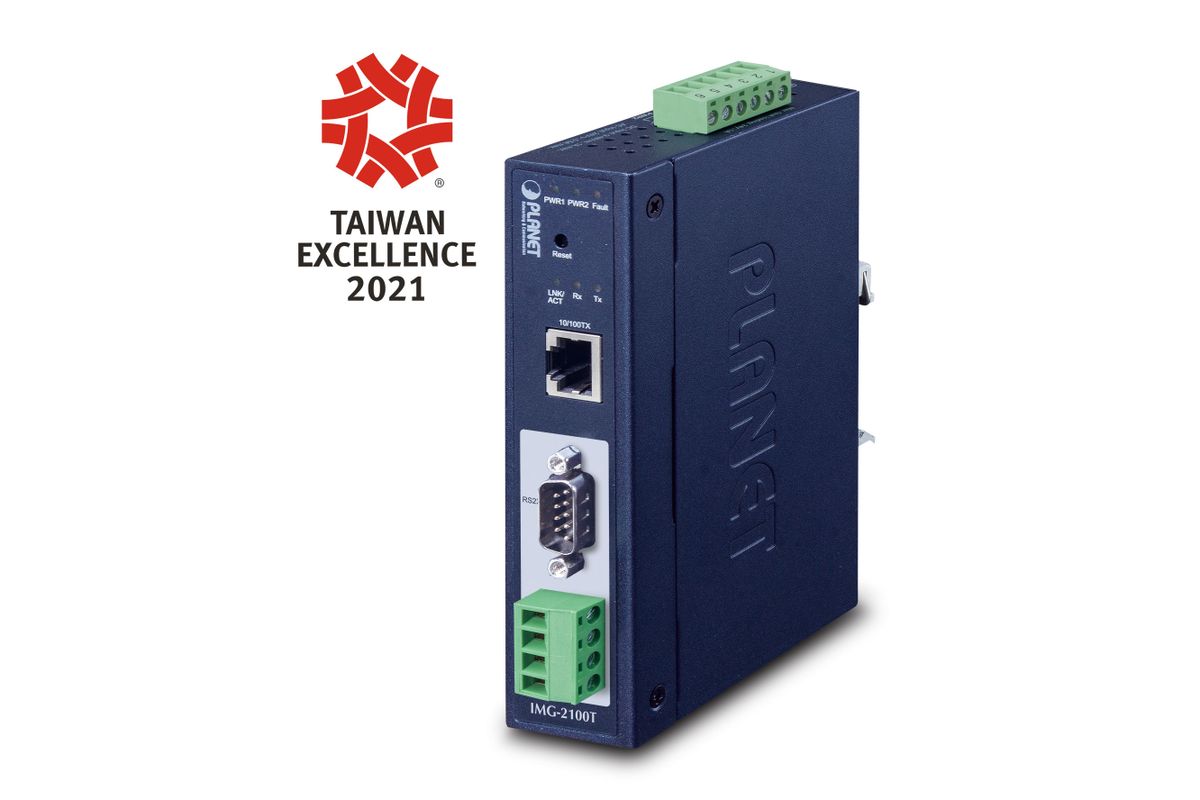

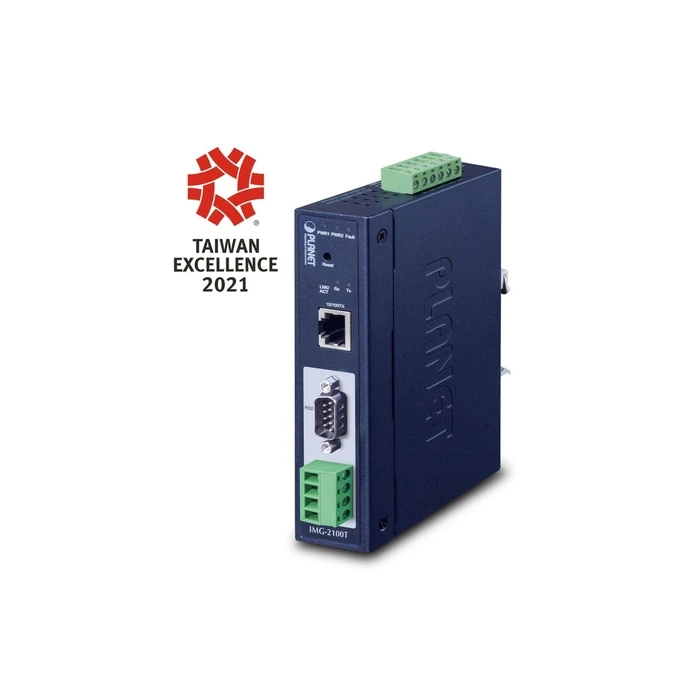

PLANET Βιομηχανική Πύλη Modbus 1-port RS232/422/485 IMG-2100T

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Planet Technology Corp.
• Model
  IMG-2100T
• Product Type
  Industrial 1-port RS232/422/485 Modbus Gateway (Converter)

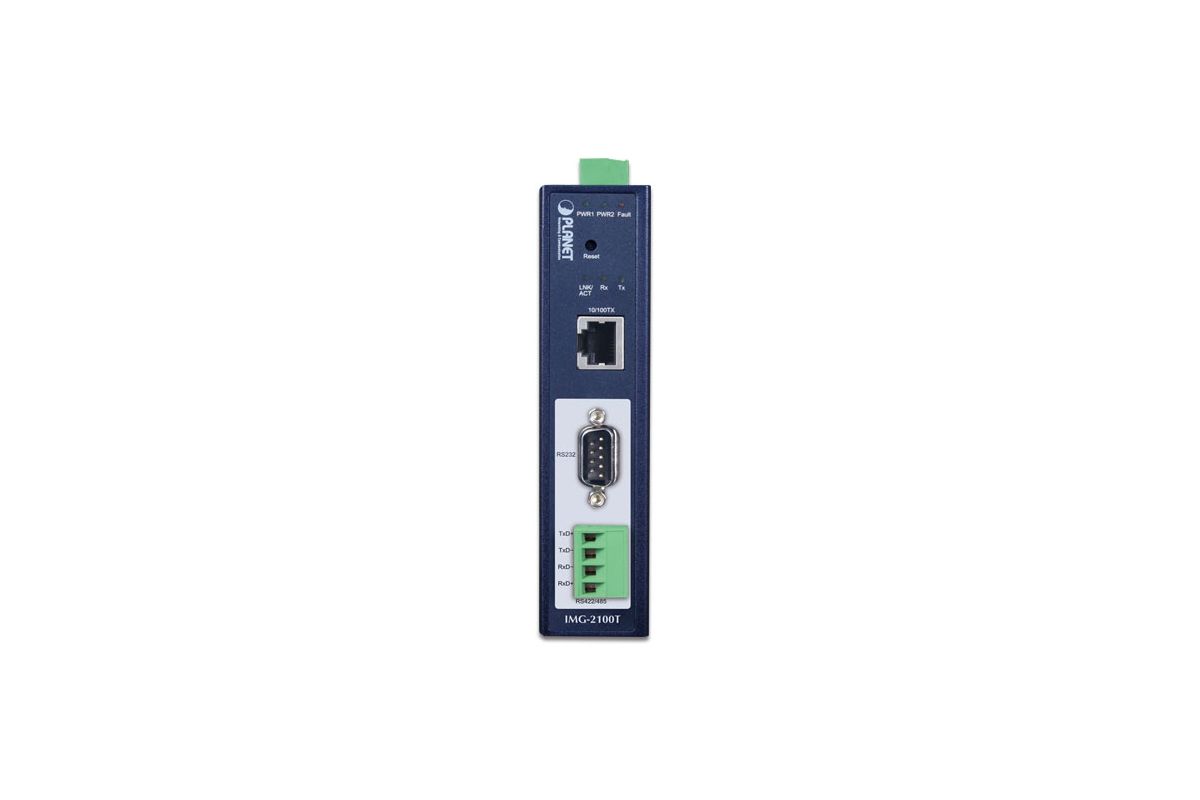

• Serial Interfaces
  1 × RS-232 (DB9 male) and 1 × RS-422/RS-485 (4-pin terminal)
• Ethernet Port
  1 × 10/100BASE-TX RJ-45
• Supported Protocols
  Modbus TCP, Modbus RTU, Modbus ASCII
• Operating Modes
  Modbus Master and Slave
• TCP Connections
  Up to 32 TCP slave requests in Master mode; up to 32 TCP master connections in Slave mode
• Baud Rate
  50 bps to 921.6 kbps
• Serial Settings
  Data bits: 5,6,7,8; Stop bits: 1, 1.5, 2
• RS-422/485 Wiring
  4-wire RS-422 or 2-wire RS-485
• Management
  Web-based management, virtual COM port, console management, SNMP/SNMPv2

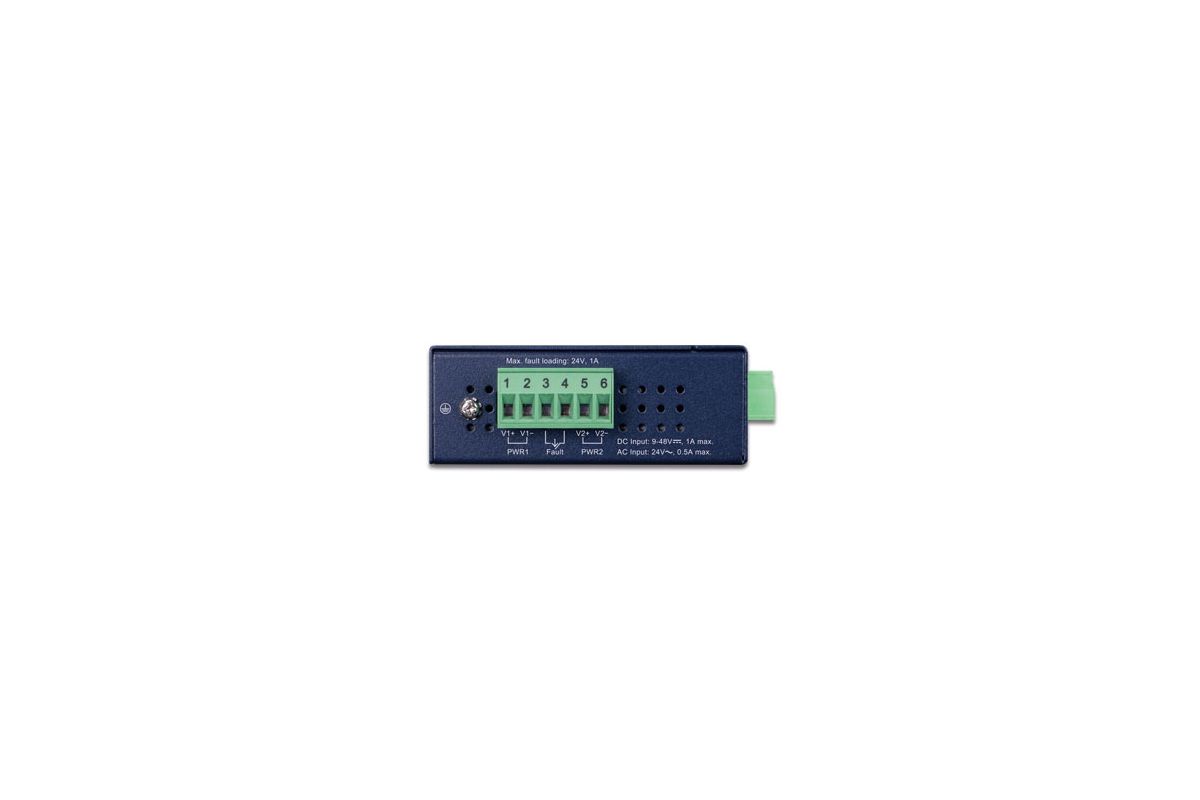

• Power Input
  9–48 V DC or 24 V AC (dual/redundant power with auto-failover)
• Power Protection
  Reverse polarity protection
• Power Consumption
  Approximately 3.15 W to 3.84 W (depending on input/load)
• Enclosure
  IP30 metal case
• Mounting
  DIN-rail and wall mounting
• Dimensions (W×D×H)
  32 mm × 87.8 mm × 135 mm
• Product Weight
  392 g
• Operating Temperature
  -40 °C to +75 °C
• Storage Temperature
  -40 °C to +85 °C
• Operating Humidity
  5% to 95% non-condensing
• Surge Protection
  2 kV surge protection
• Certifications
  FCC Class A, CE Class A, RoHS
• Color
  Blue
