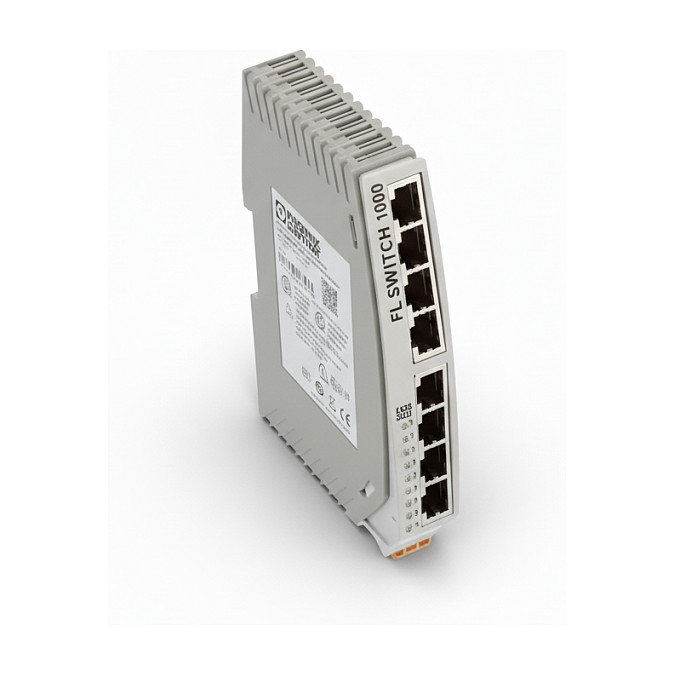

PHO FL SWITCH 1005N βιομηχανικός διακόπτης Ethernet (Phoenix Contact)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Phoenix Contact
• Model
  FL SWITCH 1005N (PHO FL SWITCH 1005N)
• MPN
  1085039
• EAN
  4055626834320
• Category
  Network / Switching Hubs
• Product Family
  Unmanaged Switch 1000
• Ports
  5 x RJ45
• Port Speed
  10/100 Mbps (10Base-T, 100Base-TX)
• Transmission Medium
  Copper, twisted-pair
• Max Segment Length
  100 m per segment
• Mounting
  DIN rail
• Dimensions
  84 x 22.5 x 117 mm
• Housing Material
  Polycarbonate, fiber reinforced
• Protection Rating
  IP30
• Operating Temperature
  -10 °C to +60 °C
• Power Supply
  24 V DC or 24 V AC (50/60 Hz)
• Supply Range
  ~18 V AC … up to 32 V DC (datasheet range)
• Typical Current Consumption
  ~19 mA at 24 V DC
• Max Current Consumption
  ~110 mA at 9 V DC
• Power Dissipation
  ~2.64 W
• Power Connection
  COMBICON; max conductor cross section 2.5 mm²
• Switching Mode
  Store-and-forward (unmanaged)
• Auto Features
  Auto-negotiation and autocrossing
• QoS
  Priority/QoS support for automation traffic
• PROFINET
  PROFINET Conformance Class A, PTCP filter
• Energy Efficiency
  Energy Efficient Ethernet (IEEE 802.3az)
• LEDs
  Local diagnostic link/data LEDs
• Form Factor
  Narrow industrial switch for automation networks
• Use Case
  Industrial automation and control networks
