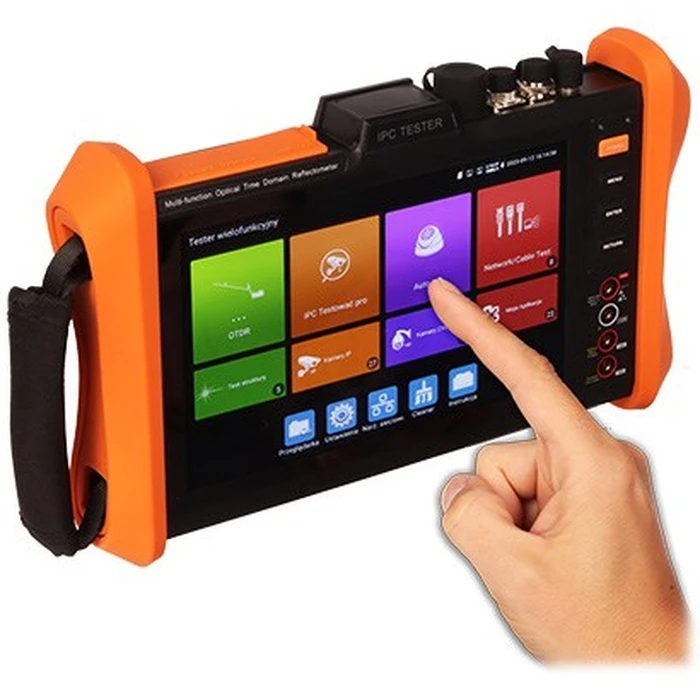

Οπτικός Ανακλασίμετρος με Δοκιμαστή CCTV CS-R7-80H

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Product Name
  Optical reflectometer w/ CCTV tester CS-R7-80H
• Model
  CS-R7-80H
• SKU
  WLONONWCRSFKU
• EAN / Barcode
  5902887089084
• Brand
  Unknown
• Device Type
  Handheld multifunction OTDR + CCTV/IP camera tester
• Display
  8-inch touch screen
• Display Resolution
  2048 × 1536 (typical for product family / inferred)
• OTDR Wavelengths
  1310 nm, 1550 nm, 1610 nm
• OTDR Maximum Range
  Up to 150 km (model family listing)
• OTDR Event Dead Zone
  ~0.8 m (typical / family spec)
• Optical Power Meter Range
  -50 dB to +26 dB (typical for family models)
• Visual Fault Locator
  Red laser VFL included (family)
• CCTV/IP Tester
  Supports TVI/CVI/AHD cameras; H.264 / H.265 IP camera support; 3G-SDI/HD-SDI support on some variants
• Interfaces
  Ethernet (IP), HDMI output, VGA (on some variants), USB, TF card slot
• Battery
  ~15600 mAh battery reported for family; ~10+ hours standby (family spec)
• Weight
  ~1.7 kg (device - inferred from related listings)
• Connectors
  FC/PC optical connector; interchangeable adapters for SC/ST (typical)
• File / Report Formats
  PDF, Excel, screenshot export; OTDR trace saving
• Additional Tools
  Ping, IP scan, PTZ control, basic DMM functions (family)
• Storage
  Internal storage + TF card support (family)
• Accessories
  Carrying case, AC adapter, optical adapters, VFL pen, user manual (typical)
• Certifications
  Not specified
