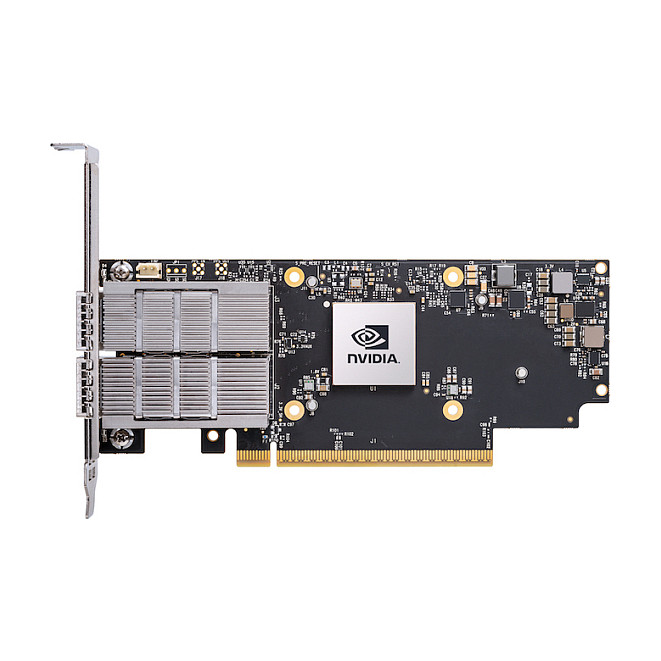

NVIDIA ConnectX-7 HHHL Κάρτα Δικτύου 25 (Quad-port SFP56, PCIe Gen4 x16, HHHL)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  NVIDIA
• Model
  ConnectX-7 HHHL Adapter Card 25
• MPN
  900-9X7AO-0003-ST0
• SKU
  21133190
• EAN / Barcode
  7290110492670
• Product Family
  ConnectX-7
• Product Type
  Ethernet / InfiniBand network adapter card (HCA/NIC)
• Form Factor
  HHHL (Half-Height, Half-Length)
• Host Interface
  PCIe Gen4 x16
• Network Ports
  4
• Port Type
  SFP56
• Supported Ethernet Speeds
  25GbE, 50GbE (ConnectX-7 family supports up to 200/100/50/40/10/1 Gb/s depending on variant)
• RDMA
  Supported (RoCE)
• Hardware Acceleration
  ASAP2, overlay offloads (VXLAN) and other accelerations
• GPUDirect Storage
  Supported
• Security
  Secure Boot Enabled (device variant); Crypto Disabled (device variant)
• Typical Power Consumption
  ~15.1 W (PCIe Gen4 x16 mode, passive cables)
• Voltage
  12V and 3.3Vaux
• Maximum Current
  100 mA
• Operating Temperature
  0°C to 55°C
• Non-Operating Temperature
  -40°C to 70°C
• Operating Humidity
  10% to 85% RH
• Non-Operating Humidity
  10% to 90% RH
• Operating Altitude
  Up to 3050 m
• Dimensions (card)
  68.90 mm x 143.50 mm (2.71 in x 5.64 in)
• Material
  PCB, metal bracket/connector assemblies (standard NIC construction)
• Compliance
  RoHS compliant
• Typical Use Cases
  HPC, AI, hyperscale cloud, enterprise data center networking and storage acceleration
