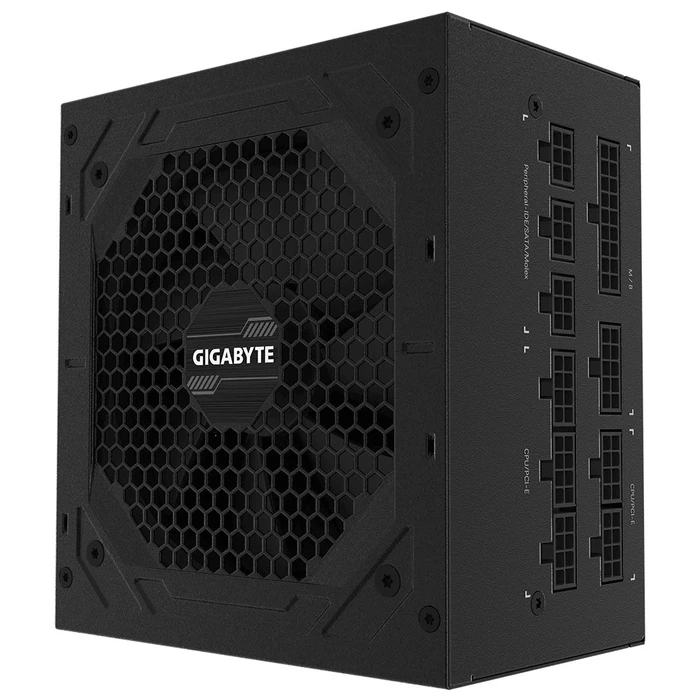

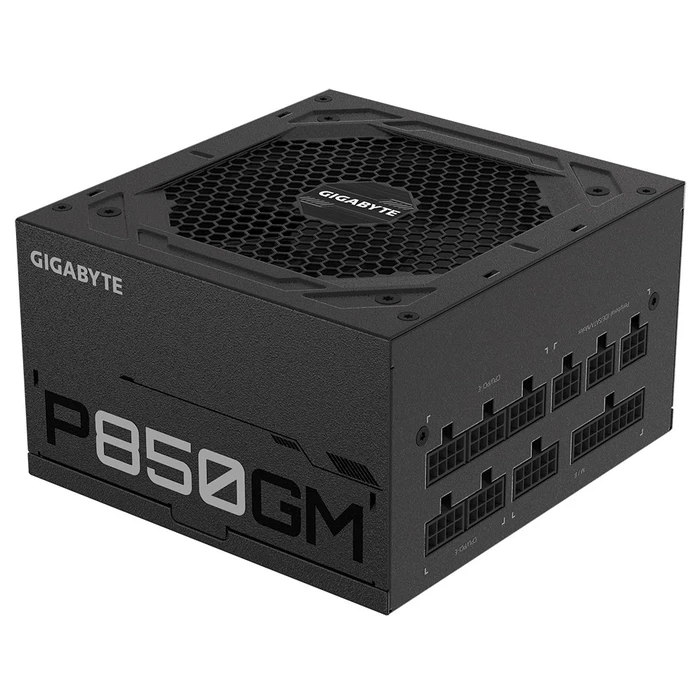

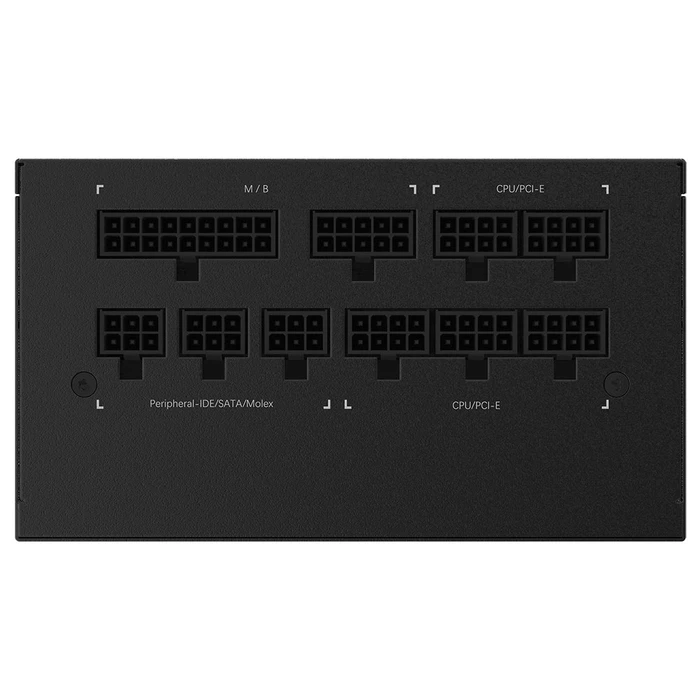

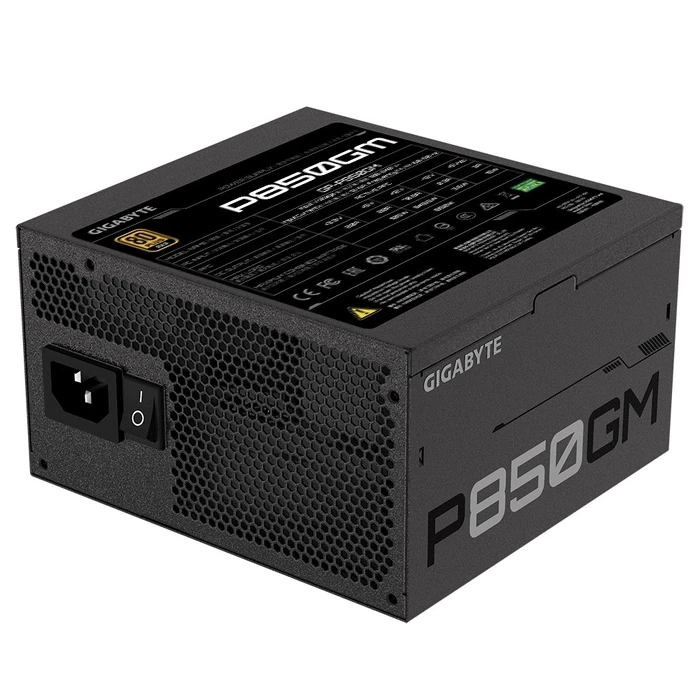

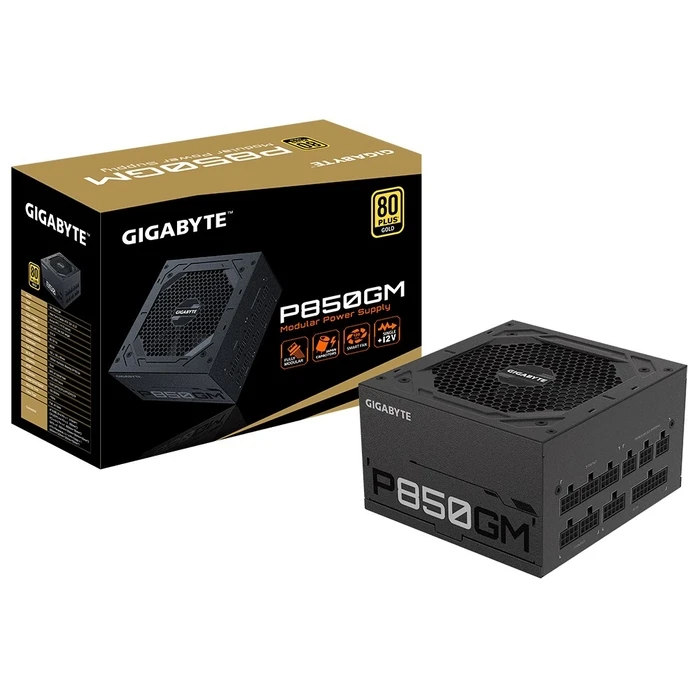

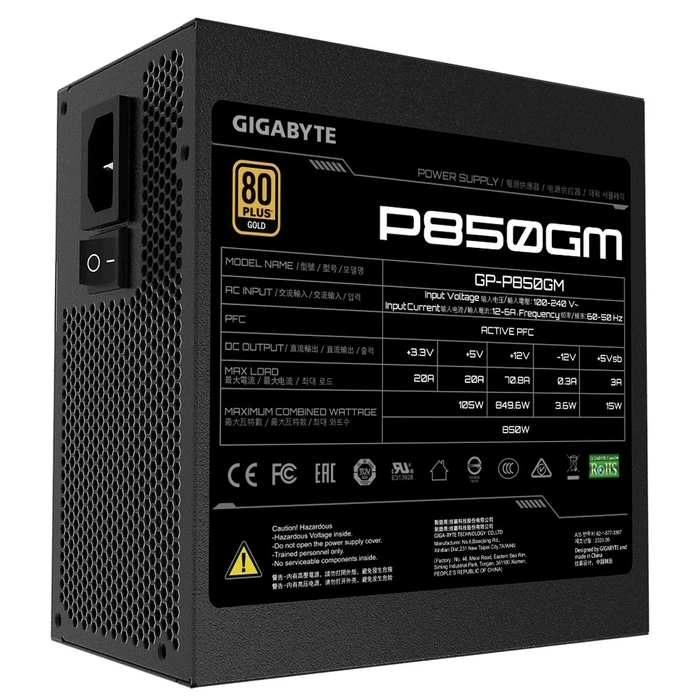

Τροφοδοτικό 850W Gigabyte P850GM 20+4 pin ATX ATX Black

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Product colour
  Black
• Fan location
  Top
• Number of fans
  1 fan(s)
• On/off switch
  Yes
• Fan diameter
  12 cm
• Cooling type
  Active
• Combined power (-12V)
  3.6 W
• Total power
  850 W
• Power Factor Correction (PFC) type
  Active
• Power factor
  0.9
• Max output current (-12V)
  0.3 A
• Combined power (+5V)
  120 W
• Combined power (+3.3V)
  120 W
• Combined power (+12V)
  846 W
• Max output current (+5Vsb)
  3 A
• Max output current (+12V)
  70.5 A
• AC input voltage
  100 - 240 V
• Max output current (+3.3V)
  20 A
• AC input frequency
  50 - 60 Hz
• Max output current (+5V)
  20 A
• Maximum input current (@110V)
  12 A
• Maximum input current (@220V)
  6 A
• Hold time
  16 ms
• Efficiency
  90%
• Combined power (+5Vsb)
  15 W
• Power protection features
  Over power
• Depth
  140 mm
• Width
  150 mm
• Height
  86 mm
• Purpose
  PC
• 80 PLUS certification
  80 PLUS Gold
• Mean time between failures (MTBF)
  100000 h
• ATX version
  2.31
• Power supply unit (PSU) form factor
  ATX
• Package type
  Box
• Number of SATA power connectors
  8
• PCI Express power connectors (6+2 pin)
  4
• CPU power cable length
  60 cm
• PCI Express power cable length
  75 cm
• Floppy disk drive connector
  Yes
• Motherboard power cable length
  61 cm
• ATX power connector (20+4 pin)
  Yes
• SATA power cable length
  900
• Floppy drive power connector
  2
• Cabling type
  Fully-Modular
• Peripheral (Molex) power connectors (4-pin)
  3
• CPU power connector (4+4 pin)
  Yes
• Floppy disk drive cable length
  89 cm
• Motherboard power connector
  20+4 pin ATX
• Harmonized System (HS) code
  84733020
